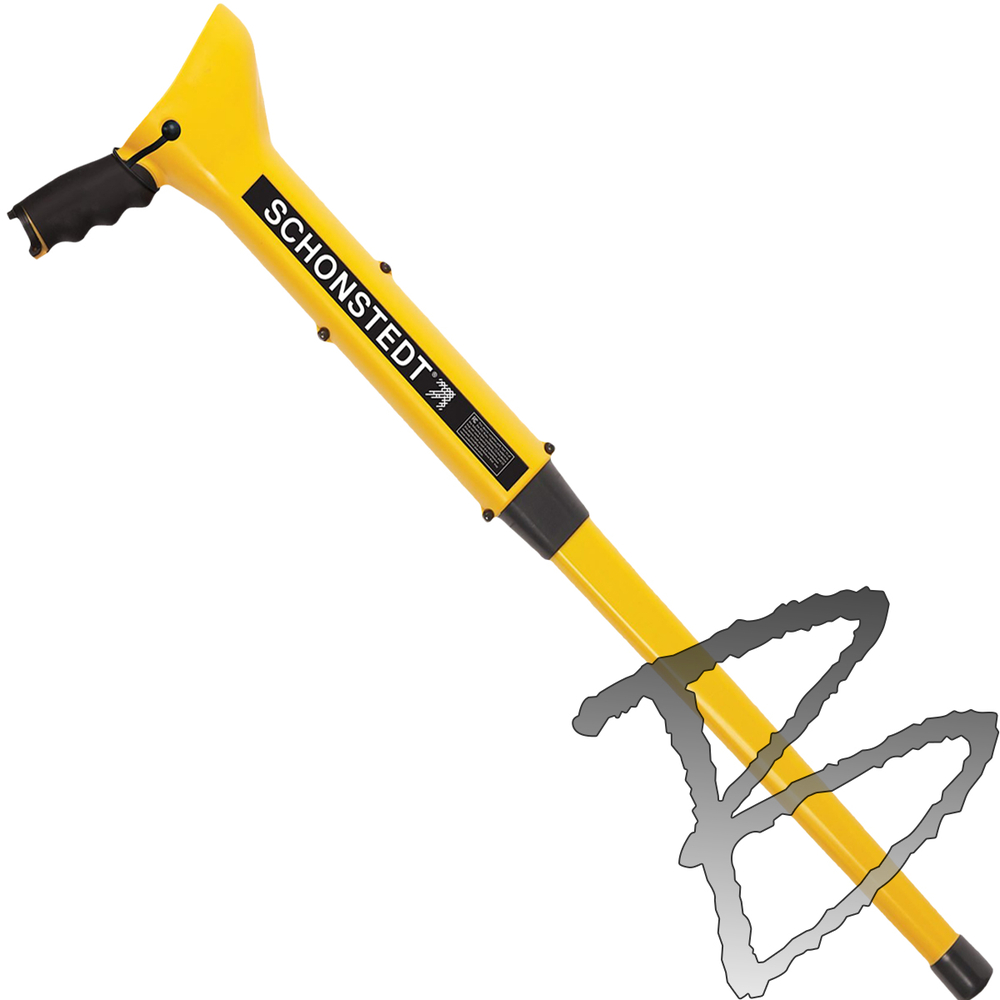

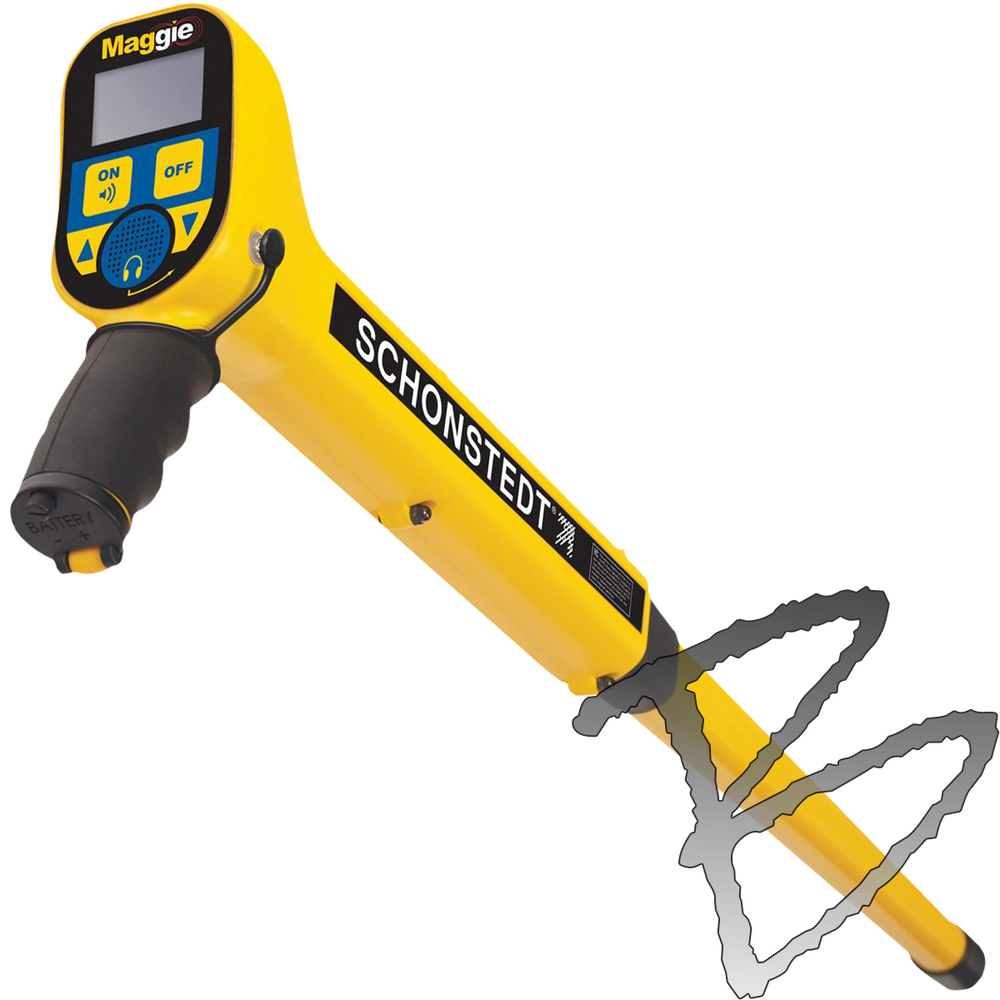

Schonstedt Maggie Magnetic Locator

Schonstedt Maggie Magnetic Locator

$925.00 Sale $741.00

Brand: Schonstedt Instrument Company

SKU: MAGGIE

Qty:


Authorized Dealer

Made in America

Schonstedt Maggie Magnetic Locator

Trade-in Details PDF

Get The Details

  • Now with Membrane Switch and IP Rating!
  • The MAGGIE Magnetic Locator, a "Next Generation" magnetic locator, all the sensitivity of the 52Cx, with the ergonomics of the 92XT
  • The MAGGIE combines the best features of two flagship Schonstedt products: the sensitivity and precision of the GA-52Cx, and the single-handed operation of the GA-92XT.
  • Now with new Membrane Switch (no more knobs!), improved water and dust resistance, and an IP Rating.
  • With The MAGGIE, the best just got better - an instrument that combines pinpoint accuracy and state-of-the-art ergonomics.
Maggie Features:

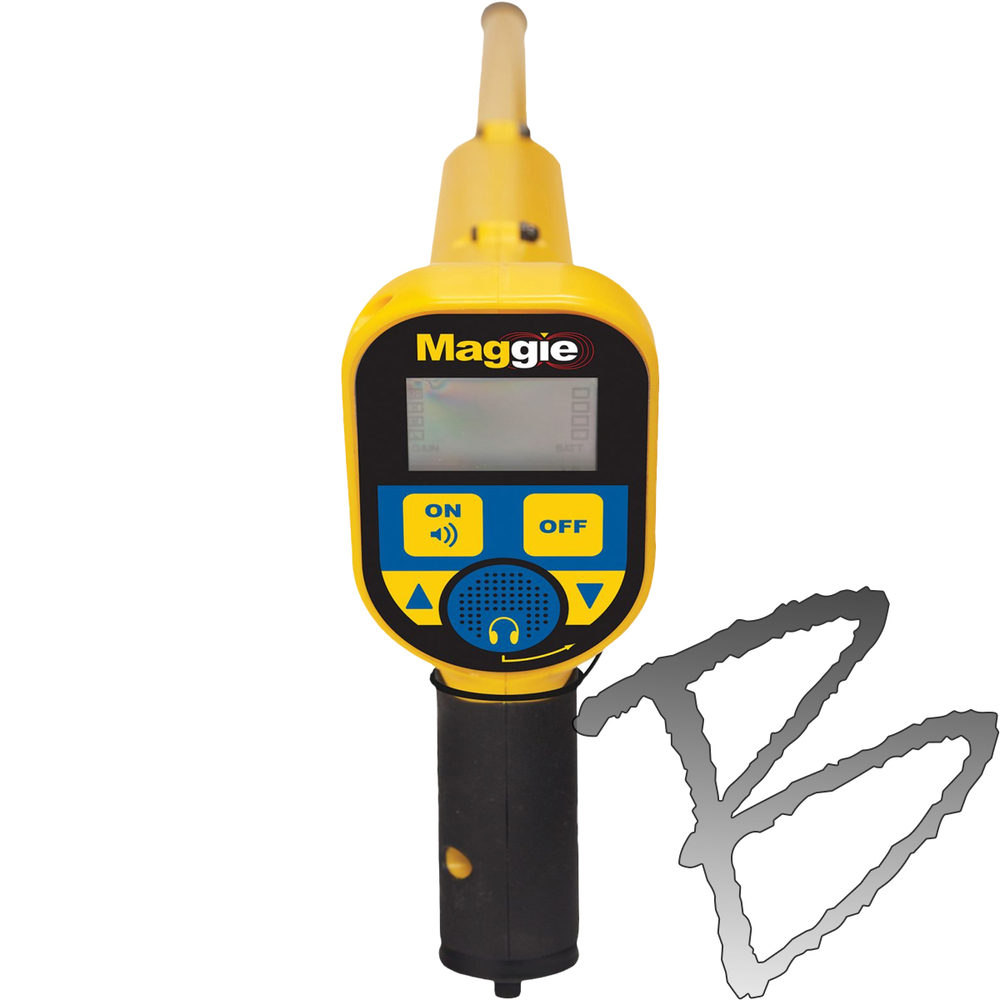

  • NEW! Membrane Switch
  • NEW! IP Rated - IP54
  • More Ergonomic
  • More Durable
  • More Water Resistant
  • Highest Sensitivity
  • Expanding bar graph indicates polarity (positive or negative) and relative signal strength
  • Gain defaults to Medium when powering off/on
  • Easy access battery removal
  • Patented HeliFlux® sensors
  • Modular construction and high performance components
  • Includes a soft-case and sling for ease of carrying through rough terrain, hands-free
  • 7-year warranty
Maggie Specifications:
  • Audio Output: Signal increases in frequency with gradient field intensity. Idle frequency = 10 Hz
  • Display Output: Expanding bar-graphs indicates polarity (positive or negative) and relative signal strength
  • Battery Indicator: 4-segment LCD
  • Gain: Adjustable Gain with range indicated by a 4-segment LCD
  • Gain Memory: Gain defaults to Medium when powering off/on
  • Volume: 3 Levels: Muted, Medium, and High
  • Input Power: Supplied by one 9V Alkaline Battery
  • Battery Life: 24 Hours (intermittent usage)
  • Operating Temp: -13° to 140°F (-25° to 60°C)
  • Overall Length: 32-1/2 in. (83 cm)
  • Nominal Sensor Spacing: 20 in. (50 cm)
  • Weight: Approximately 2.6 lb (1.2 kg)
  • Construction: High impact ABS
  • Dust & Water Protection: Rated IP54 (when operated with headphone jack plug installed into jack)
Maggie Standard Equipment:
  • Maggie Locator
  • Padded Carrying Case with Strap (p/n: MA50000)
  • 1 - 9V Alkaline Battery (in unit) (p/n: B11013)
  • Instruction Manual (p/n: M-MAGGIE)
Industries:
  • Military & Munitions Response, Surveying, Construction & Excavation, Contract Locating, Facilities Management, Gas & Oil Pipelines, Public Works, Residential & Commercial, Utilities, Water & Sewer, Cable, Electrical Power, Transportation
Schonstedt Magnetic Locators “find it all underground”:
  • Cast or Ductile Iron Pipes, Corner Markers, Curb & Valve Boxes, Steel Enclosures, Mag & PK Nails, Manhole Covers, Marker Magnets, Reinforced Septic Tanks, Steel Pipes, UXO, Well Casings

How to Locate Training Videos

Maggie Product Brochure

Maggie Manual PDF


Parts Available

Schonstedt MAGGIE Parts Diagram

Parts Diagram

Professional Surveying Equipment

  • Audio Output: Signal increases in frequency with gradient field intensity. Idle frequency = 10 Hz
  • Display Output: Expanding bar-graphs indicates polarity (positive or negative) and relative signal strength
  • Battery Indicator: 4-segment LCD
  • Gain: Adjustable Gain with range indicated by a 4-segment LCD
  • Gain Memory: Gain defaults to Medium when powering off/on
  • Volume: 3 Levels: Muted, Medium, and High
  • Input Power: Supplied by one 9V Alkaline Battery
  • Battery Life: 24 Hours (intermittent usage)
  • Operating Temp: -13° to 140°F (-25° to 60°C)
  • Overall Length: 32-1/2 in. (83 cm)
  • Nominal Sensor Spacing: 20 in. (50 cm)
  • Weight: Approximately 2.6 lb (1.2 kg)
  • Construction: High impact ABS
  • Dust & Water Protection: Rated IP54 (when operated with headphone jack plug installed into jack)
