Gas Clip Technologies Multi Gas Clip, 4 Gas unit

Gas Clip Technologies Multi Gas Clip, 4 Gas unit

Call For Next Availability

Brand: Gas Clip Technologies, Inc.



Authorized Dealer

Gas Clip Technologies Multi Gas Clip, 4 Gas unit
  • Battery life for months instead of hours!
  • Day in, day out, your workers have to charge their portable multi gas detectors so they can keep testing for the presence of combustible gases, H2S, CO, and O2. unfortunately, sometimes they may forget to do so.
  • Gas Clip Technologies can help prevent this safety risk with our new Multi Gas Clip (MGC).
  • It has the longest battery life of any portable gas detector by a long shot.
  • The new MGC can go a full 2 months without a charge-without ever having to be turned off.
  • Shut down the unit nightly and the battery can last up to 4 months.
  • What’s the secret of the MGC’s extended battery life? It uses low-power photo-metric technology for the detection of the combustible gases (LEL).
  • Instead of draining the battery with archaic pellistor technology, the MGC uses an IR source.
  • This conserves power, so the battery lasts and lasts and lasts.
  • The MGC also eliminates the need to frequently calibrate portable gas detectors.
  • It can go 12 months without being calibrated.
  • That saves time and increases efficiency.
  • Comes with a AC/DC Wall Charger
  • Be sure to compare these features to the Multi Gas Clip Simple, the Multi Gas Clip Simple PLUS, the Single Gas Clip Plus and the Single Gas Clip to find the right product for your current application.
Each Multi Gas Clip, IR version, comes with the following features:
  • 2 month battery life (continuous run time)
  • 1 year calibration cycle
  • Will work in inert environments, no need for oxygen
  • Simple to use
  • Bump/Calibration reminders
  • Docking station compatible
  • Programmable user ID
Option Details:
  • Item# MGC: Multi Gas Clip w/Infrared Combustible Sensor (4 Gas/H2S, CO, O2 & LEL)

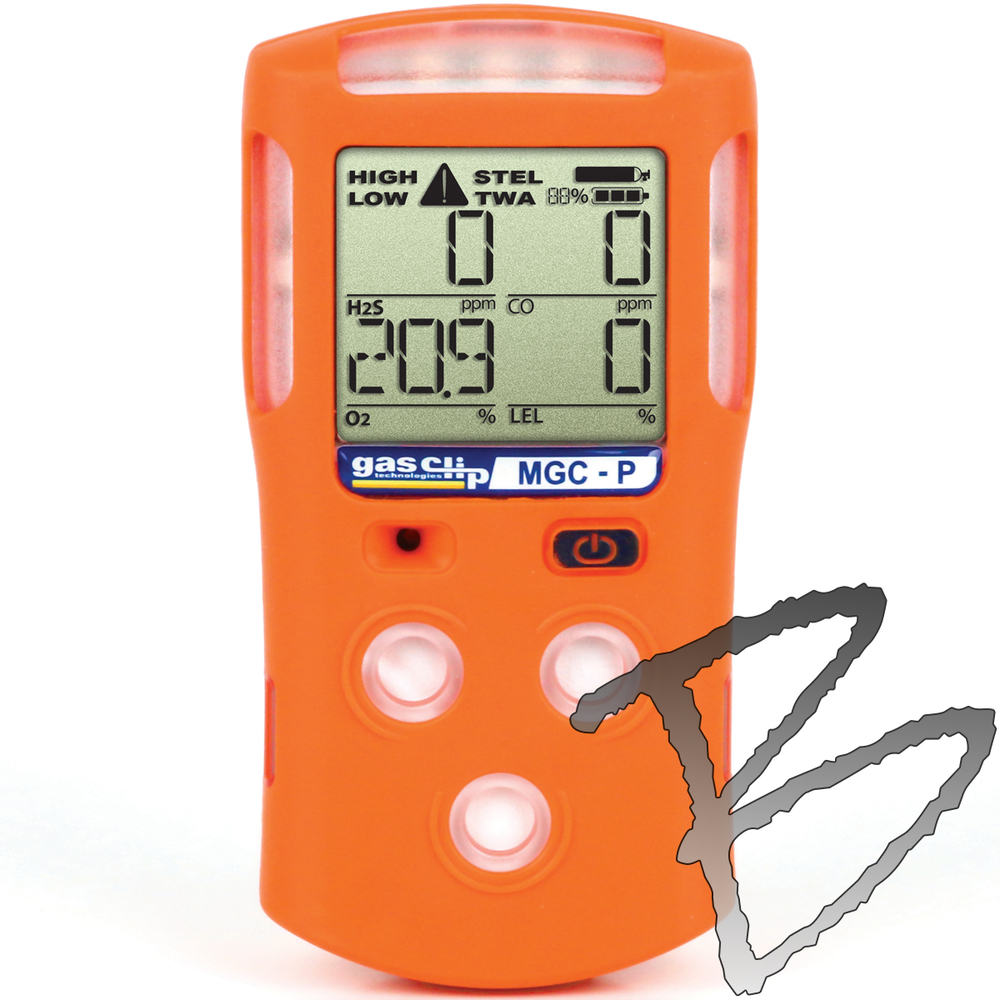

  • Item# MGC-P: Multi Gas Clip w/Pellistor Combustible Sensor (4 Gas/H2S, CO, O2 & LEL)

Multi Gas Clip DatasheetMulti-Gas Clip Manual


  • Size: 4.7” H × 2.4” W × 1.2” D (118.6 mm H × 61.6 mm W × 31.7 mm D)
  • Weight: 7.7 oz. (240 g)
  • Temperature: -4°F to +122°F / -20°C to +50°C
  • Humidity: 5% to 95% RH (non-condensing)
  • Battery Life IR: 2 months continuous, Pellistor: 30 hours
  • Alarms: Visual, Vibrating, Audible (minimum 95dB), Low, High, STEL, TWA and OL (Over Limit)
  • LEDs: 4 red alarm bar LEDs, Yellow backlight (activated on button press), Red backlight (activated on alarm condition), Yellow Maintenance Notification LED
  • Tests: Full function self-test upon activation, Sensors, battery and circuitry continuous
  • Ingress Protection: IP66/67
  • Certifications: Class 1 Div 1 Groups A, B, C and D, C22.2 No. 157 & C22.2 No. 152 (UL 913), II 1 G, Ex ia IIC T4 Ga (ATEX pending)
  • Warranty: Full 2 years
  • Gasses: H2S: 0-100 PPM, CO: 0-500 PPM, Combustible: 0-100 %LEL, O2: 0-30 %
  • User Options: User ID/Message, Maintenance Notification, TWA/STEL Intervals, TWA Method, Language (6), Sensor Disable, Latching Alarms, SAFE Display, Self-Test Lock, Dock Lock, Auto-zero on start up, Calibration gas, Bump Test Interval, Calibration Interval
