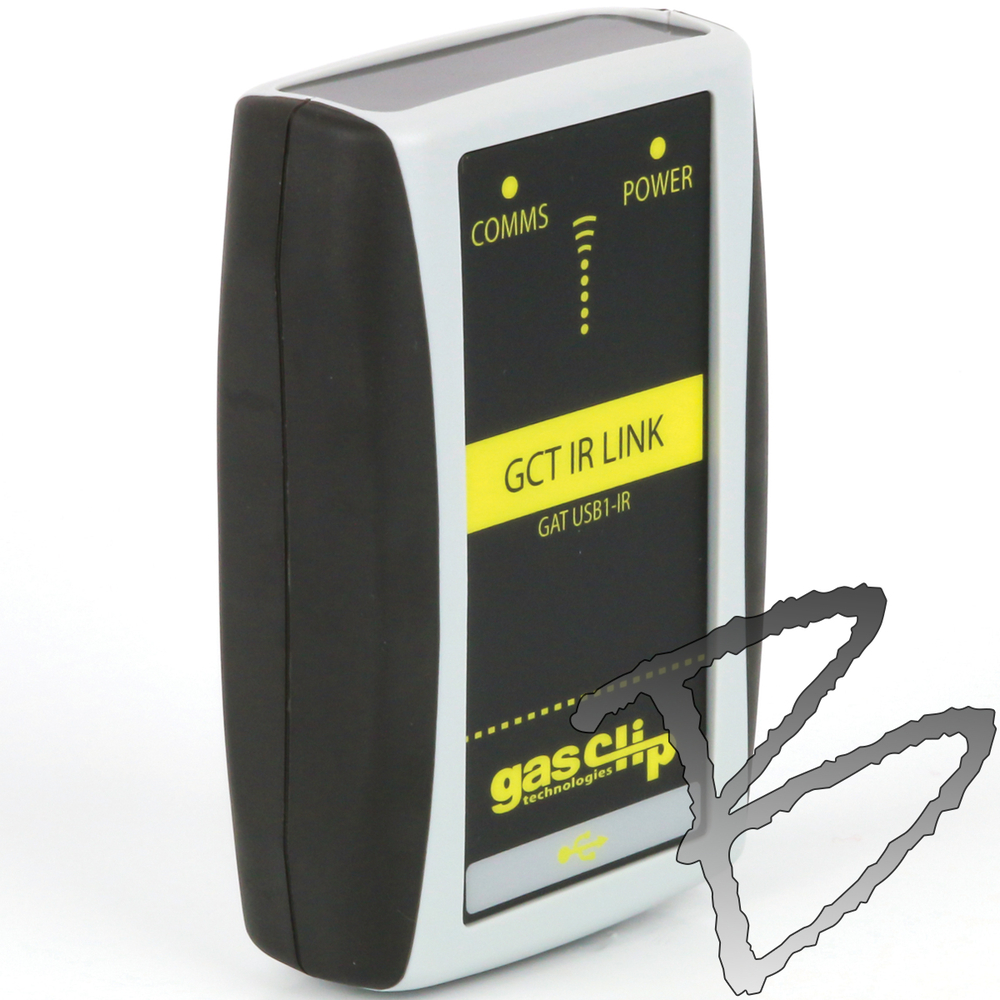

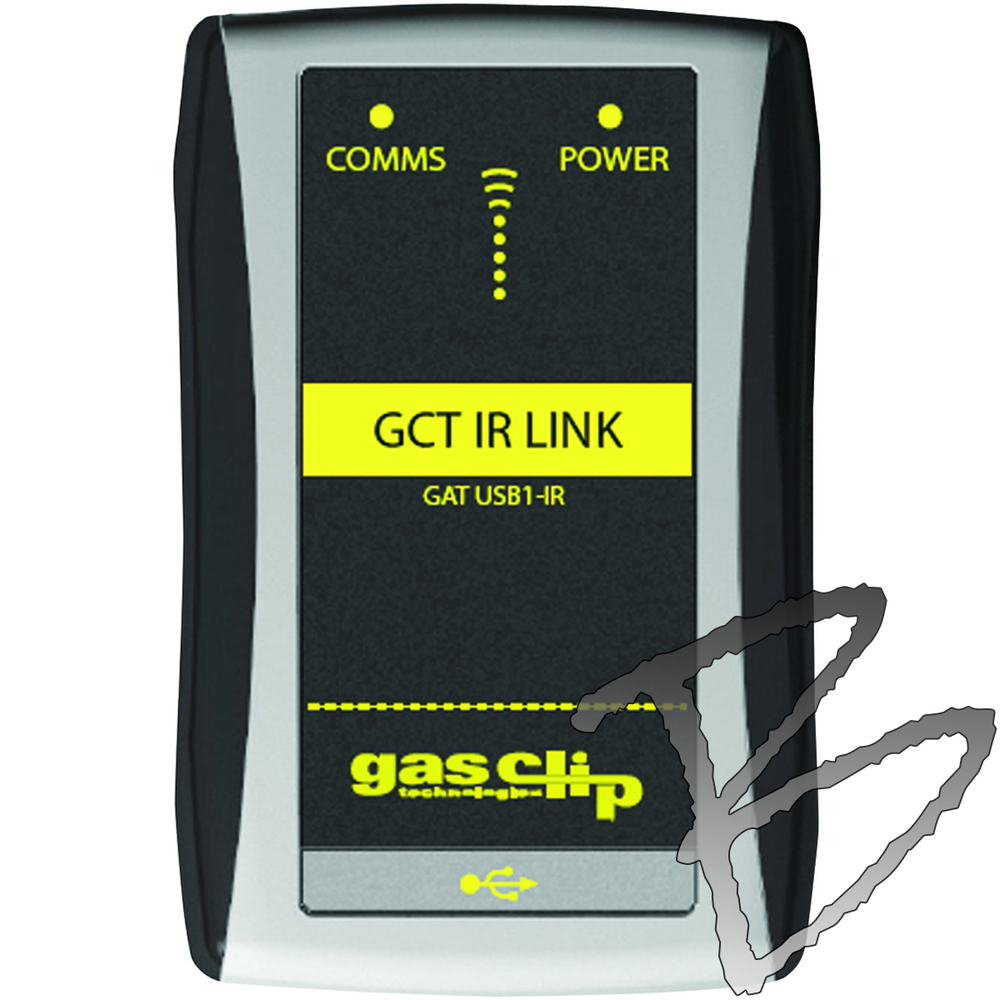

Gas Clip Technologies IR Link (Infrared Two-Way Data Communications Link)

Gas Clip Technologies IR Link (Infrared Two-Way Data Communications Link)


Brand: Gas Clip Technologies, Inc.



Authorized Dealer

Gas Clip Technologies IR Link (Infrared Two-Way Data Communications Link)
  • Model Number: GCT-IR-LINK

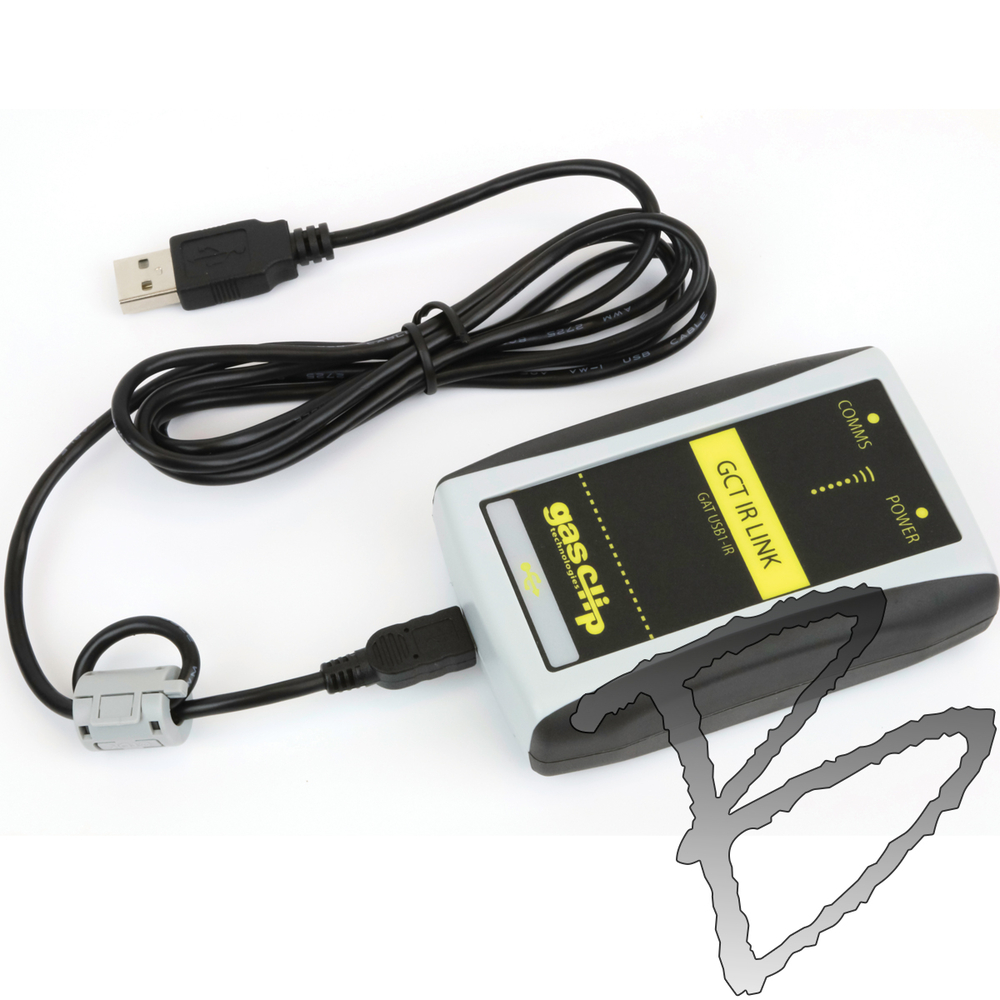

  • Connected to your computer by USB, the GCT IR Link communicates directly with the Gas Clip units and Docks to program special alarm set points, user options, as well as, download event logs & data logs.
  • Gas Clip Technologies’ IR Link is an effective tool for communicating with all Gas Clip Technologies products.
  • In conjunction with Gas Clip Technologies' instrument specific software, the IR Link can be used to both program and retrieve information from the instruments.
  • The IR Link requires a USB port and respective software in order to properly operate.

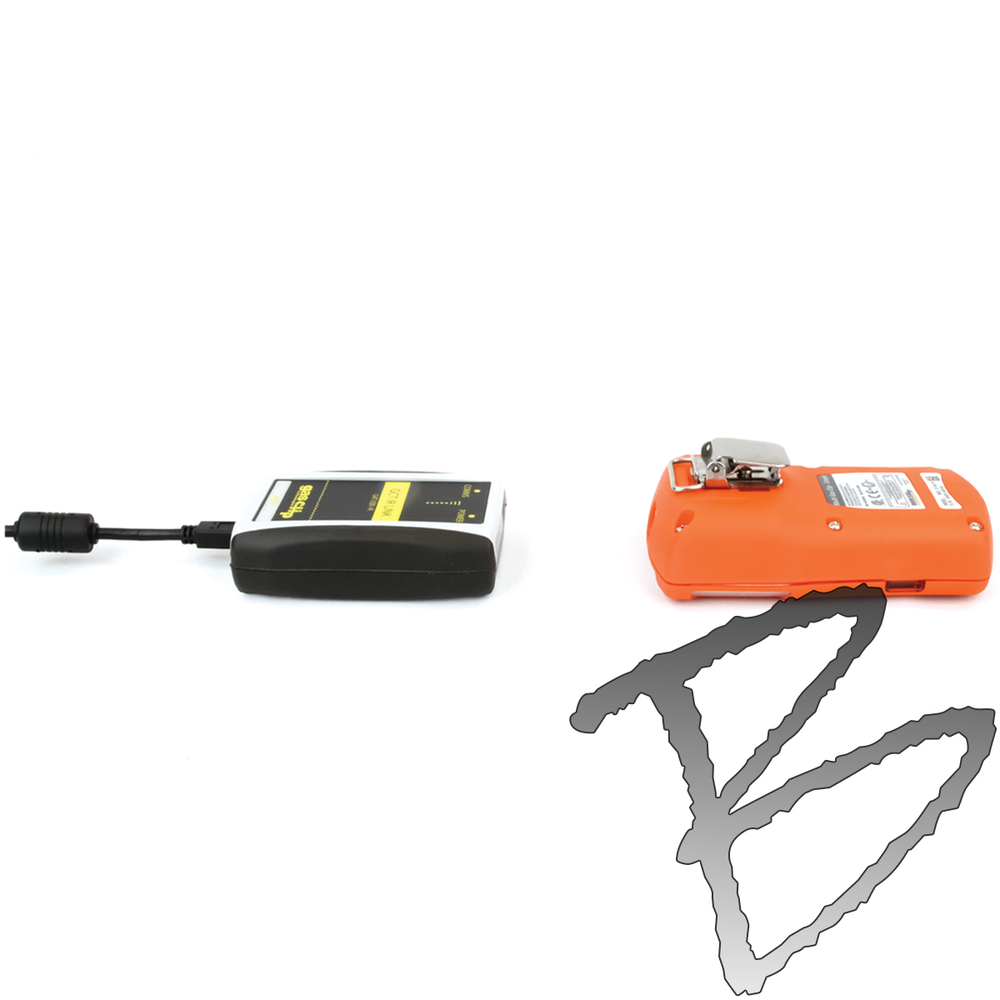

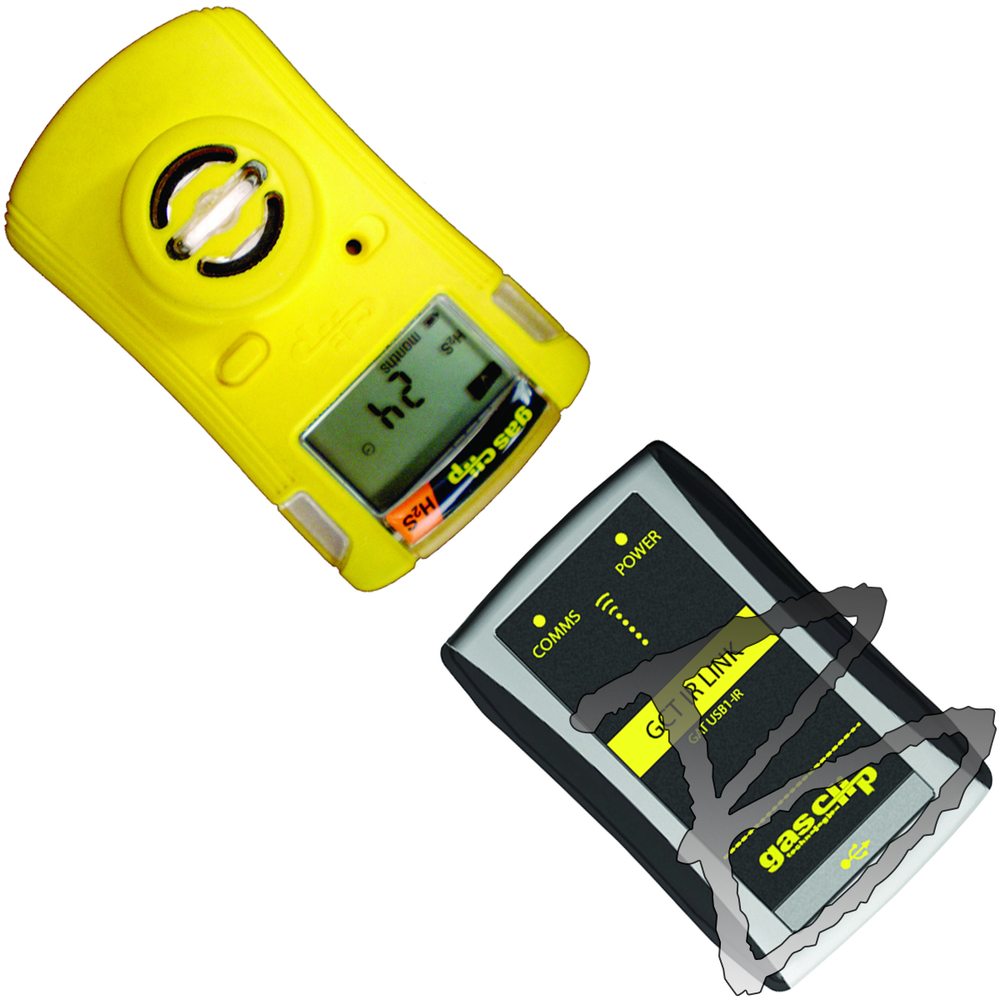

  • Gas Clip Technologies IR Link software provides users the ability to communicate and program the Single Gas Clip, SGC Plus, the Multi Gas Clip, the Multi Gas Clip Simple, the Multi Gas Clip Simple Plus, & the Multi Gas Clip Pump units individually.
  • Designed and tested to make supervisory activities such as bump testing and data management tasks rapid and easy, ensuring thorough compliance.
  • Reliability and low cost of ownership must include the simple management of data.
  • Gas Clip Technologies are focused on delivering safety innovation, easing the workload of supervisors, workers, and contractors, permitting them to focus on completing their tasks in the most productive ways possible.
  • In order to communicate with the instruments, an IR Link is required.
  • Once installed, users will be able to change instrument settings, download unit event logs and upgrade firmware.
  • Following is a full list of features offered by the IR Link software:
    • High Alarm
    • Low Alarm
    • Calibration Interval
    • Bump Interval
    • User ID
    • Self Test Interval
    • Show Sensor Readings
    • Hide Bump Due LED flashing
    • Hide Clock
    • Hibernate
    • Save Event Log

  • SIZE: 3.8in H x 2.5in W x 1.1in D (95mm H x 63mm W x 28mm D)
  • WEIGHT: 2.7oz (76g)
  • TEMPERATURE: 10° - 40°C / 50° - 104°F
  • HUMIDITY: 5% to 95% non-condensing relative humidity
  • RANGE: 2.0 TO 16.0 inches (50mm to 406mm)
  • POWER: USB power (5V)
  • READINGS & MODIFICATIONS: Alarm set points to the GCT Single Gas Clip & Single Gas Clip Plus
  • DOWNLOADS: Complies with EMC directives 89/336/EEC, IP66/67
  • REPORTING: Event logs From the GCT Single Gas Clip, Firmware upgrades to the GCT Single Gas Clip
  • OPERATING SYSTEM: Compatible with Microsoft Windows XP, Vista, and Windows 7
  • WARRANTY: 2 years from activation, 1 year shelf life
