Gas Clip Technologies 4 Gas Multi Gas Clip Pump

Gas Clip Technologies 4 Gas Multi Gas Clip Pump

Call for Availability

Brand: Gas Clip Technologies, Inc.



Authorized Dealer

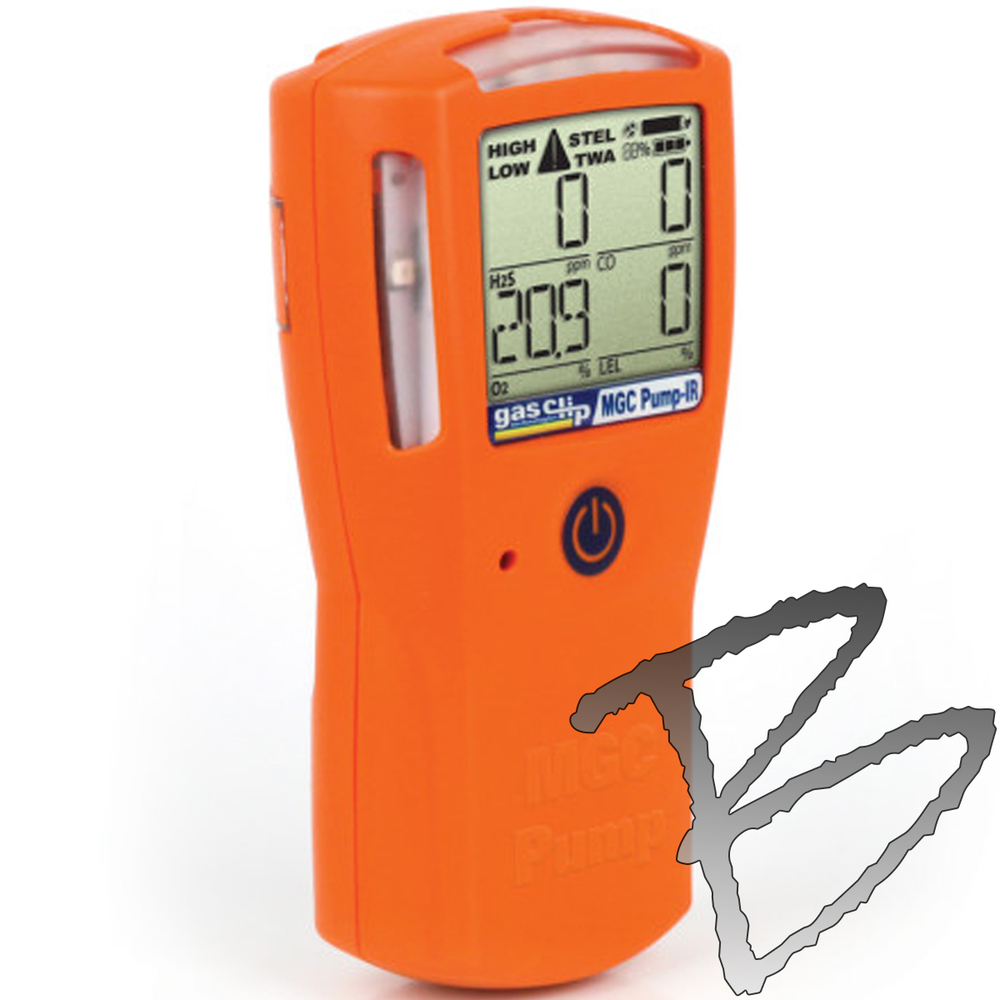

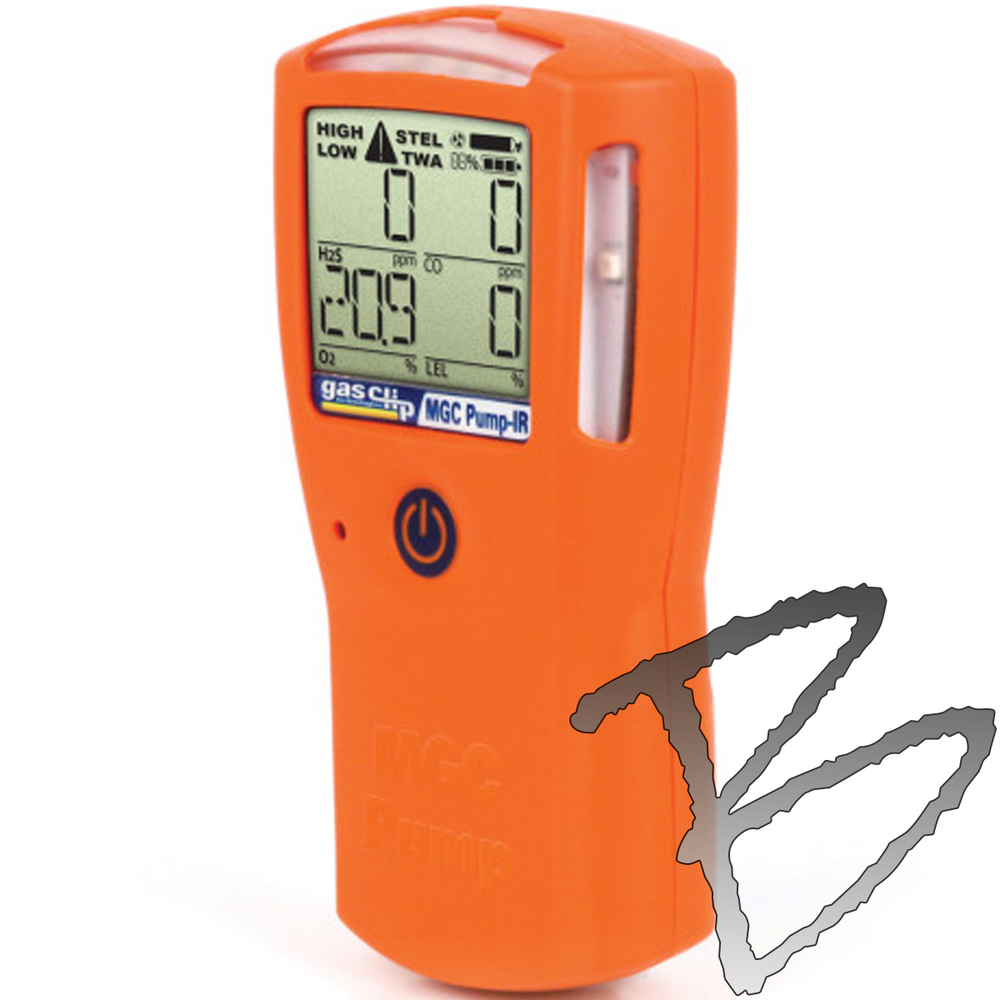

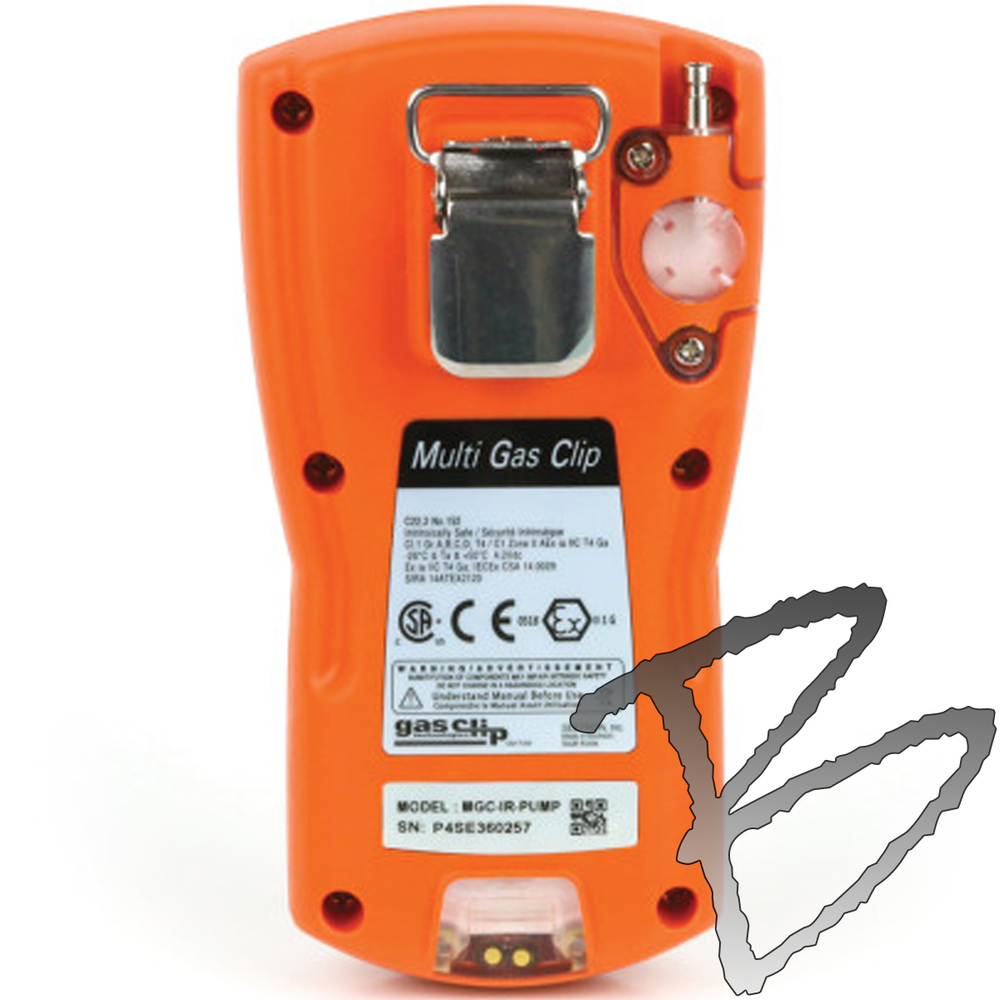

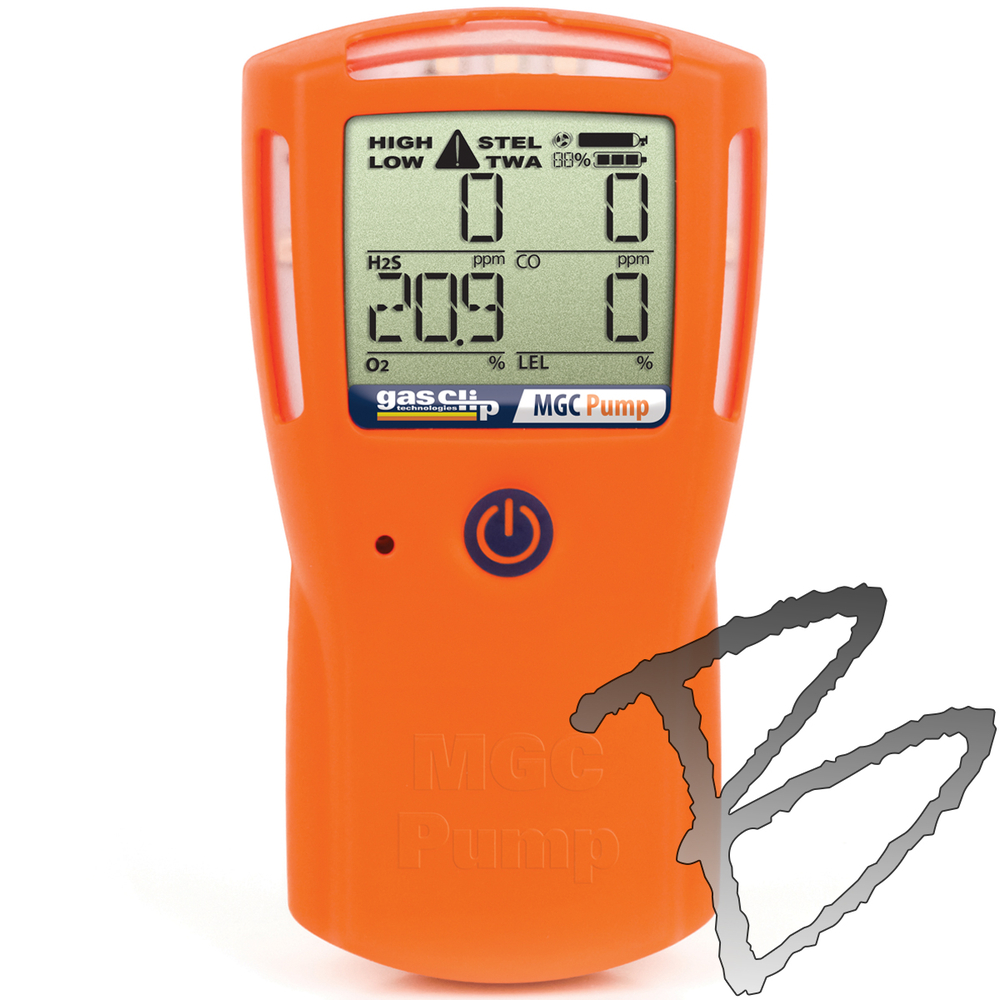

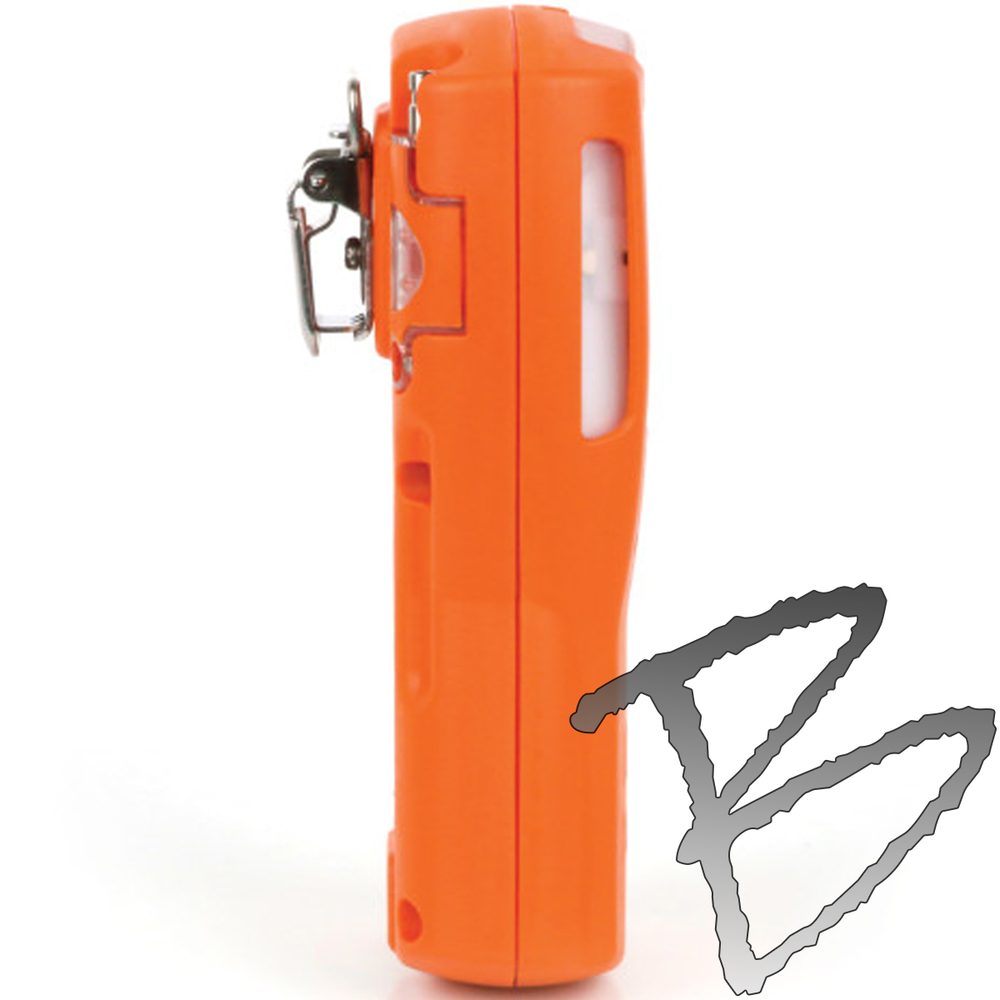

Gas Clip Technologies 4 Gas Multi Gas Clip Pump
  • A New Option in Portable Gas Detection; Multi Gas Clip Pump
  • Twice a day, every day… that’s how often you have to charge most portable gas detectors, until now.
  • Introducing the Multi Gas Clip Pump (MGC Pump) from Gas Clip Technologies, the only portable multi gas detector with an internal sampling pump that can go an entire work week without a charge.
  • A Long-Lasting Family Tradition; The MGC Pump follows in the long line of portable gas detectors by Gas Clip Technologies that last and last and last.
  • Being able to go a long time between charges is a family tradition.
  • The Secret to a Long Life; Like their MGC, the MGC Pump uses low-power photometric technology to detect combustible gases (LEL) rather than age - old pellistor technology
  • The MGC Pump uses an IR source which conserves power and helps the battery last and last.
  • Ergonomic Design Makes for a Good Fit; The MGC Pump is also designed for comfort.
  • The reduced, sloping shape of the holding area at the bottom of the instrument makes the MGC Pump a comfortable fit in the hands of your workers.
  • It is fully submersible and simple to operate.
  • The MGC Pump offers a one button design and the largest LCD screen in the industry so it’s easy to read.
  • Be sure to compare these features to the Multi Gas clipMulti Gas Clip Simple, Multi Gas Clip Simple Plus, the Single Gas Clip Plus and the Single Gas Clip to find the right product for your current application.
Calibrate the MGC Pump Once Every 12 Months
  • Other multi gas detectors require calibration anywhere from 1 to 3 months.
  • The MGC Pump can go 12 months without being calibrated.
  • This is an added benefit of IR sensing technology because IR is immune to pellistor sensor poisons such as silicone or H2S.
Each Multi Gas Clip Pump, IR Version, comes with the following features
  • 52 Hour battery life (continuous run time)
  • 1 year calibration cycle
  • Will work in inert environments, no need for oxygen
  • Pull from over 75 feet
  • Stainless steel inlet
Option Details:
  • Item# MGC-IR-PUMP: Multi Gas Clip Pump 4 Gas Detector w/Internal Pump & Infrared Combustible Sensor (H2S, CO, O2 & LEL)*
  • Item# MGC-P-PUMP: Multi Gas Clip Pump 4 Gas Detector w/Internal Pump & Pellistor Combustible Sensor (H2S, CO, O2 & LEL)*
    • *Both versions include a charging cord, one 10’ sampling hose, ten additional filters (five hydrophobic and five particulate) and one stainless steel diffusion stone.

Multi Gas Clip Pump DatasheetMulti-Gas Clip Pump Manual

  • Size: 5.7” H x 3.0” W x 1.5” D (147 x 78 x 38.3 mm.)
  • Weight: 12.4 oz. (352g)
  • Temperature: -4˚ to +122˚F (-20˚ to +50˚C)
  • Humidity: 5% to 100% RH (non-condensing)
  • Battery Life: Infrared (MGC-IR-PUMP) - 52 hours continuous
  • Alarms: Visual, vibrating & audible (minimum 95 dB), Pump, Low, High, STEL, TWA & OL (Over Limit)
  • LEDs: 4 Red alarm bar LEDs, Yellow back-light (activated on button press,) Red back-light (activated on alarm condition,) Yellow Maintenance Notification LED
  • Display: High viewing angle alphanumeric Liquid Crystal Display
  • Logs: 25 Bump tests, 25 Events, 25 Calibrations, Continuous 1 second data logging, >2 month typical capacity
  • Tests: Full function self-test upon activation, Sensors, battery and circuitry - continuous
  • Ratings: EMC Directive 2004/108/EC, IP67
  • Gas Inlet: 1/8” Stainless steel barbed fitting
  • Pump Draw: Sample from up to 75 ft. (23m.)
  • Certifications and Approvals: CSA: Class I, Division 1, Group A, B, C, and D, Class I, Zone 0, AEx ia IIC T4 Ga, CAN/CSA C22.2 No. 157 and C22.2 152 (IR version only,) UL-913 and ANSI/ISA-S12.13.01, IECEx: Ex ia IIC T4 Ga (-20˚C ≤ Ta ≤ +50˚C,) IECEx CSA 14.0029, IEC 60079-0:2011, 60079-11:2011, 60079-26:2006, ATEX: Sira 14ATEX2120, CE ll 1 G Ex ia llC T4 Ga (-20˚C ≤ Ta ≤ +50˚C,) EN60079-0:2012, 60079-11:2012, 60079-26:2006, InMetro: IEx 14.0326, Ex ia IIC T4 Ga (-20˚C ≤ Ta ≤ +50˚C)
  • Warranty: Full 2 years
  • Gasses: H2S 0 - 100 PPM (0.1 PPM increments,) CO 0 - 500 PPM (1 PPM increments,) Combustible (LEL) 0 - 100% LEL (0.1% increments,) O2 0 - 30% vol. (0.1% increments)
  • Sensor Type: H2S, CO & O2 - Plug-in electrochemical cell, Combustible (LEL) - Plug-in infrared (IR)
  • Recommended Calibraton Frequency: Infrared - 1 year.
  • User Options: Custom user message, TWA/STEL intervals, Languages (6), Latching alarms, Self-test lock, Auto-zero on start up, Bump test interval, Low/High alarm, Pump test, Maintenance notification, TWA method, Sensor enable/disable, SAFE display, Dock lock, Calibration gas percentage, Calibration interval, TWA/STEL alarm, % LEL or % by-vol
