Sokkia B-Series Auto Levels

Sokkia B-Series Auto Levels

$355.00
Price: From $355.00 to $1680.00

Brand: Sokkia

SKU: B-Series Auto Levels

Qty:


Authorized Dealer

Sokkia B-Series Auto Levels
  • B-Series Automatic Levels, B40A; 24x, B30A; 28x, & B20; 32x. - Accuracy and reliability day-after-day.
  • Sokkia B series auto levels feature enhanced reliability under all environmental conditions.
  • Their rugged, compact bodies are tightly sealed against water, dust and humidity (IPx6).
  • Quick setup, easy sighting and superior durability against vibration and shock ensure increased productivity.
  • The B series levels incorporate field-proven precise and reliable compensator for accuracy you can rely upon.
  • The optimally designed telescope provides exceptionally bright and sharp view that reduces operator's eyestrain.
  • Quick collimation and horizontal angle measurement combine for fast and easy aiming of layout and alignment tasks.
Key B-Series features include:
  • Three magnification models: B20 – 32x; B30 – 28x; B40 – 24x
  • Precise, field-proven compensator
  • Horizontal angle measurement
  • Superior telescope with two-speed focus knob
  • Quick collimation with two horizontal motion knobs
  • Warranty: 5 Years
Precise, Reliable Automatic Compensator:
  • The B-series levels incorporate the most precise and reliable compensator available in the market today.
  • The technological superiority of the Sokkia automatic levels has been proven since the release of the best-selling B2 model in 1963.
  • Four super-high-tensile suspension wires and magnetic damping system ensure accuracy and stability even when exposed to temperature, vibrations, or shock.
Superior Telescope
  • Optimally designed telescope provides exceptionally bright and sharp view that reduces operator’s eye strain.
  • Ultra-short focus distance of 20cm (7.9in.) from end of telescope* makes it easiest to use in confined locations.
  • Two-speed focus knob switches between coarse and fine for even faster operation (B20).
Quick Collimation:
  • Two knobs of endless horizontal motion drives can be operated with either hand for fast and easy aiming
Horizontal Angle Measurement
  • Horizontal angles can be read in 1° or 1gon units.
  • Freely rotatable circle allows any angle reading from zero.
  • Right angles can be quickly set for layout and alignment tasks.
  • The readout window is conveniently located on the instrument base - directly below the eyepiece.
Rapid, Easy Setup

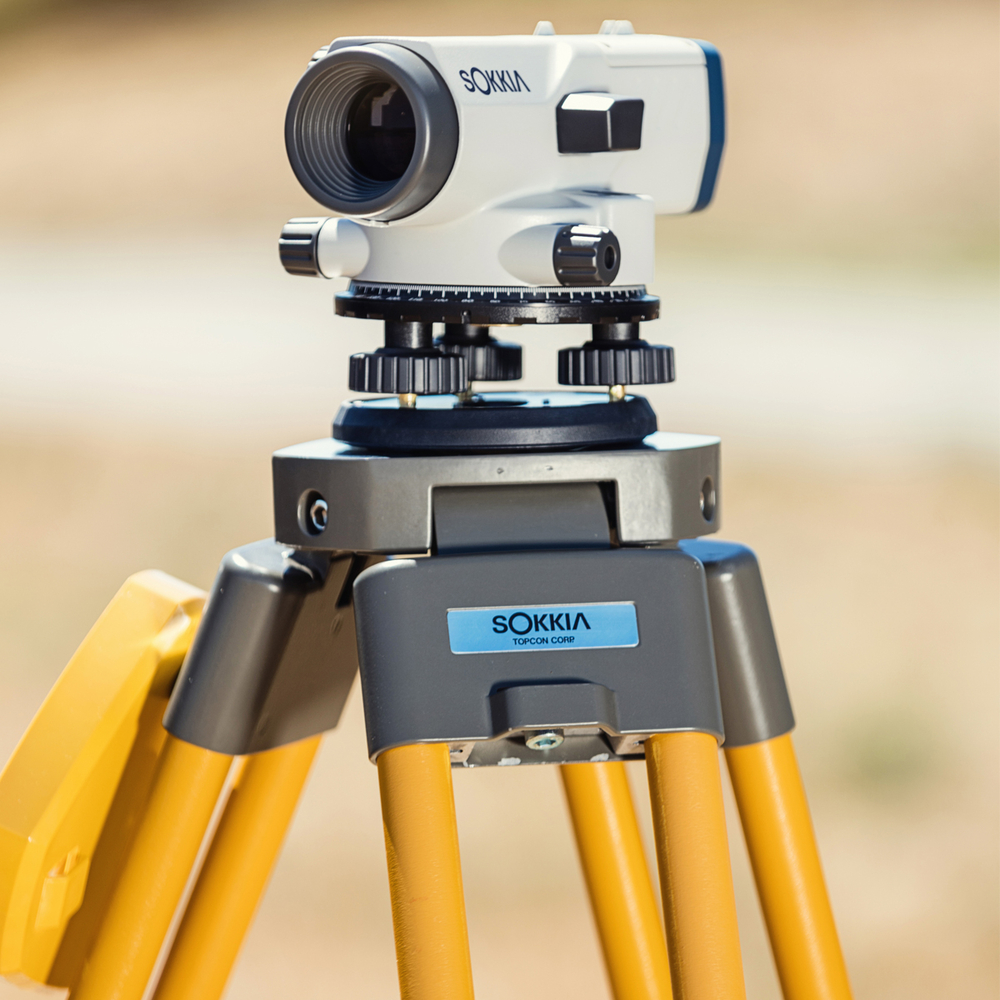

  • A domed-head tripod makes setting up faster and easier even on inclined, uneven grounds.
  • The B series levels also fit flat-head tripods.
  • The circular level can be seen on a pentaprism or plane mirror located beside the telescope eyepiece.
Option Details:
  • B40A-25 24X Auto Level - New Item# 1009572-53 (Old Part#'s 2110140B1, 738340, 2110140B0)

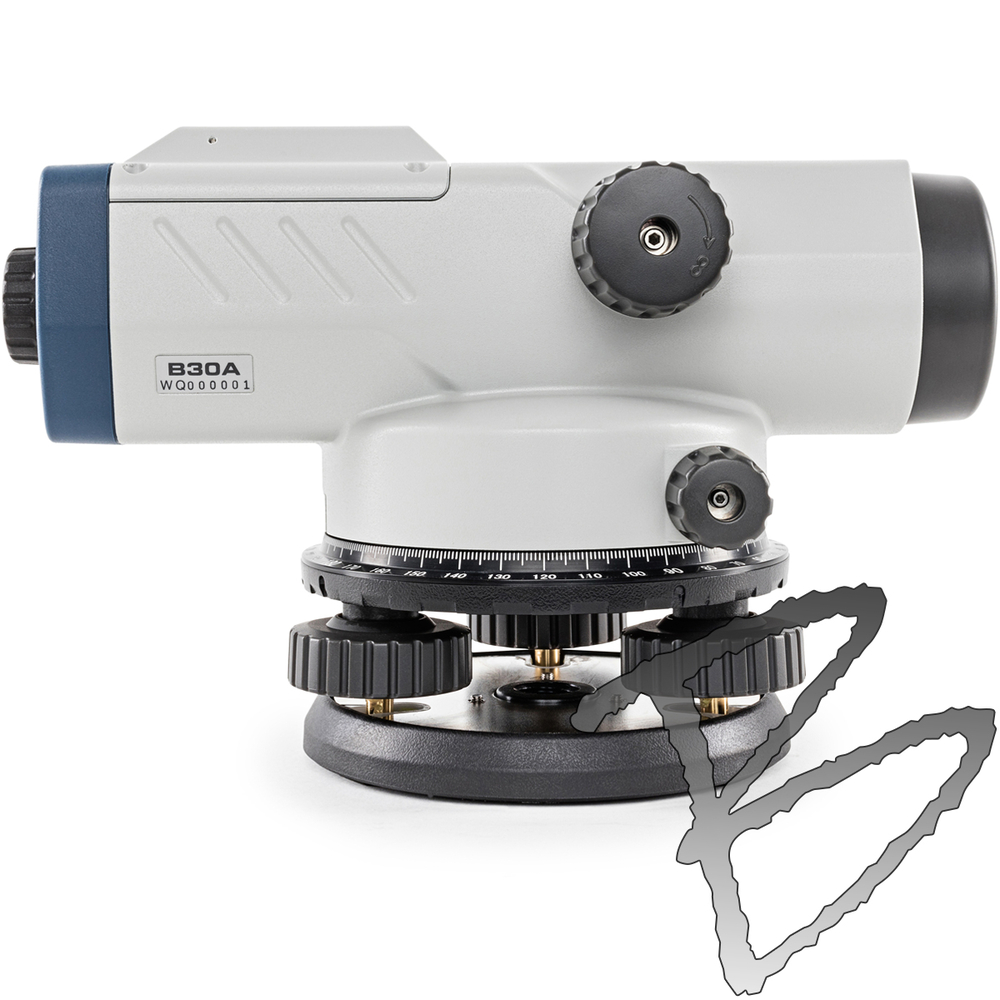

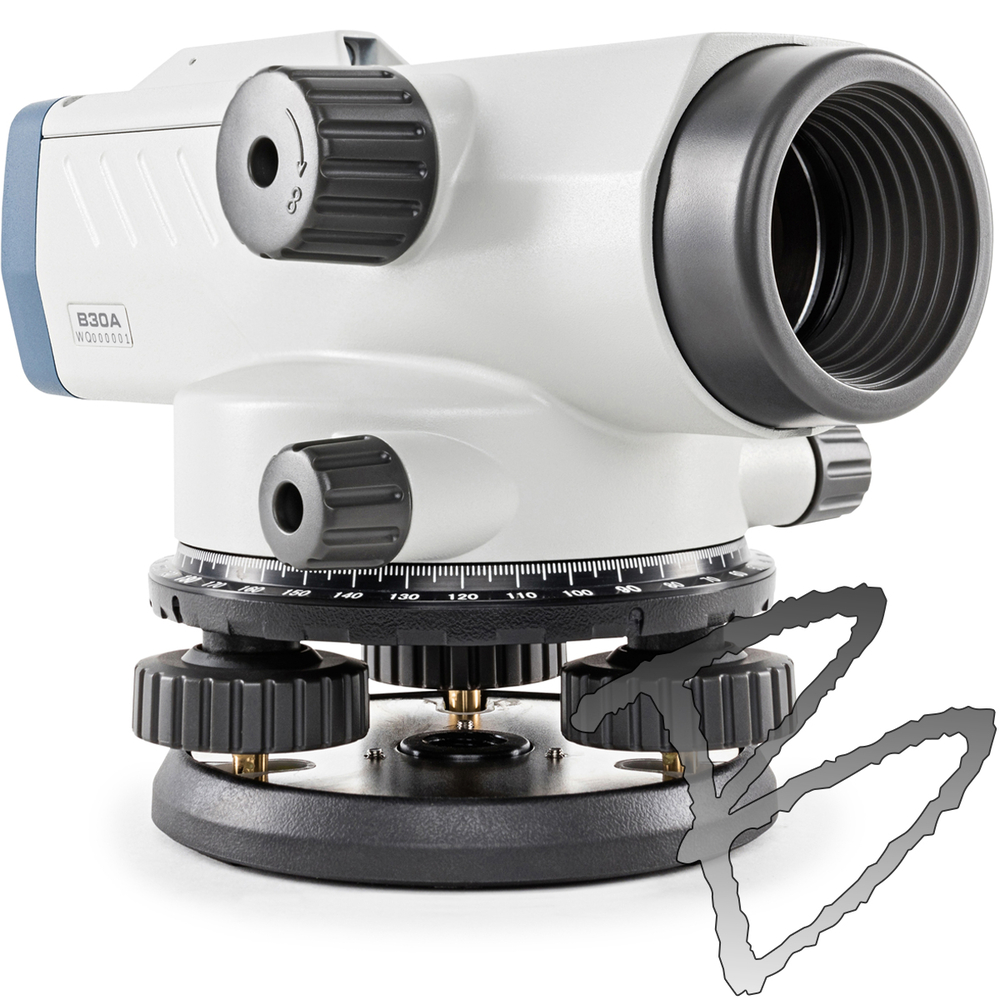

  • B30A-25 28X Auto Level - New Item# 1009572-03 (Old Part#'s 2110130B0, 738330)

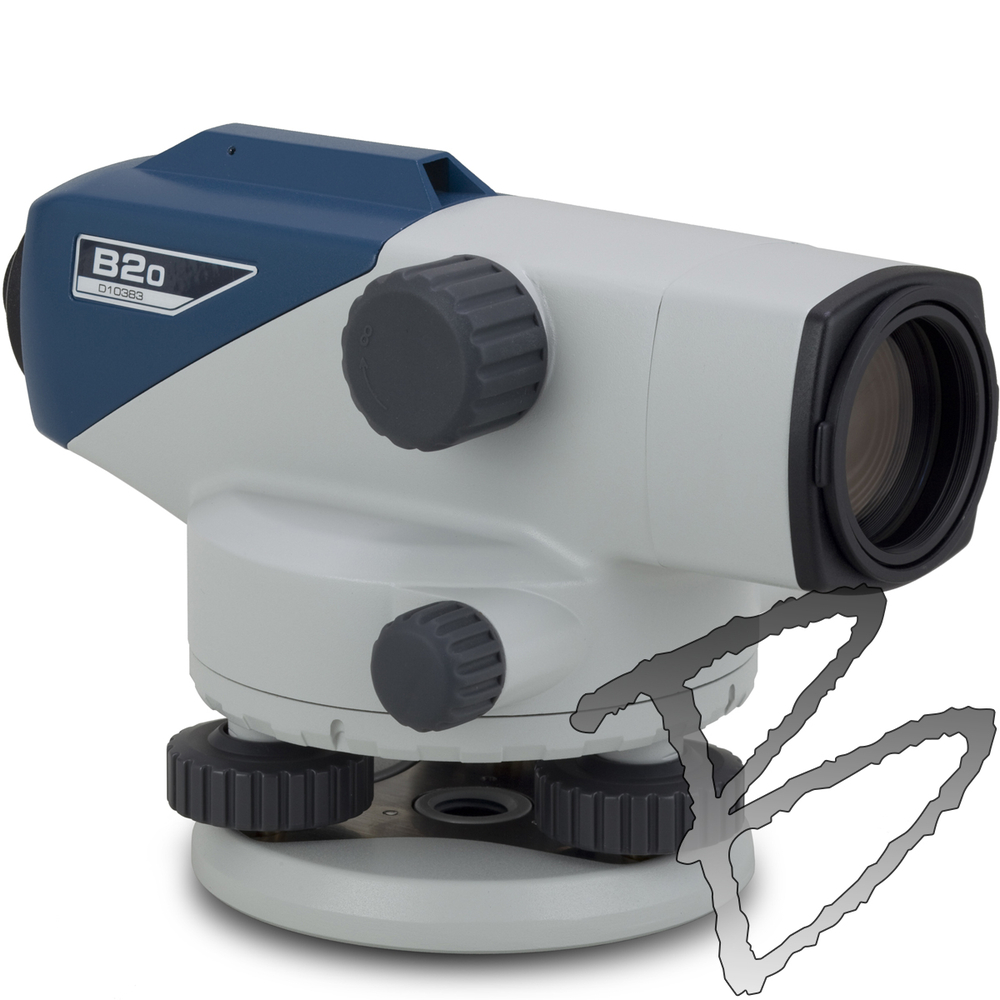

  • B20-25 32X Auto Level - New Item# 2110120B0 (Old Part# 738320)
Standard Configuration:
  • Instrument (B40A, B30A, or B20 Auto Level)
  • Lens Cap
  • Plumb Bob (B20 Only)
  • Vinyl Cover
  • Cleaning Cloth
  • Tool Kit
  • Operators Manual
  • Carrying Hard Case
Brief Specs*:
  • Magnification: B20(32x), B30A(28x), B40A(24x)
  • Accuracy (without micrometer:) .7mm(B20), 1.5mm(B30A), 2mm(B40A) - Standard deviation for 1km double run leveling
  • Accuracy (with micrometer:) .5mm(B20) - Standard deviation for 1km double run leveling
  • Compensator: Pendulum compensator with magnetic damping system
  • Dust/Water Protection: IPX6
  • Operating Temperature: -20 to +50ºC (-4 to +122ºF)
  • Size: W130 x D215 x H140mm (W5.12 x D8.46 x H5.51in)
  • Weight: B20 = 1.85kg (4.1lb) / B30A & B40A = 1.7kg (3.7lb)
  • Warranty: 5 Years
  • *Full specifications in PDF brochure.

B-series Specifications Brochure

  • Magnification: B20(32x), B30A(28x), B40A(24x)
  • Accuracy (without micrometer:) .7mm(B20), 1.5mm(B30A), 2mm(B40A) - Standard deviation for 1km double run leveling
  • Accuracy (with micrometer:) .5mm(B20) - Standard deviation for 1km double run leveling
  • Compensator: Pendulum compensator with magnetic damping system
  • Dust/Water Protection: IPX6
  • Operating Temperature: -20 to +50ºC (-4 to +122ºF)
  • Size: W130 x D215 x H140mm (W5.12 x D8.46 x H5.51in)
  • Weight: B20 = 1.85kg (4.1lb) / B30A & B40A = 1.7kg (3.7lb)
  • *Full specifications in PDF brochure.
