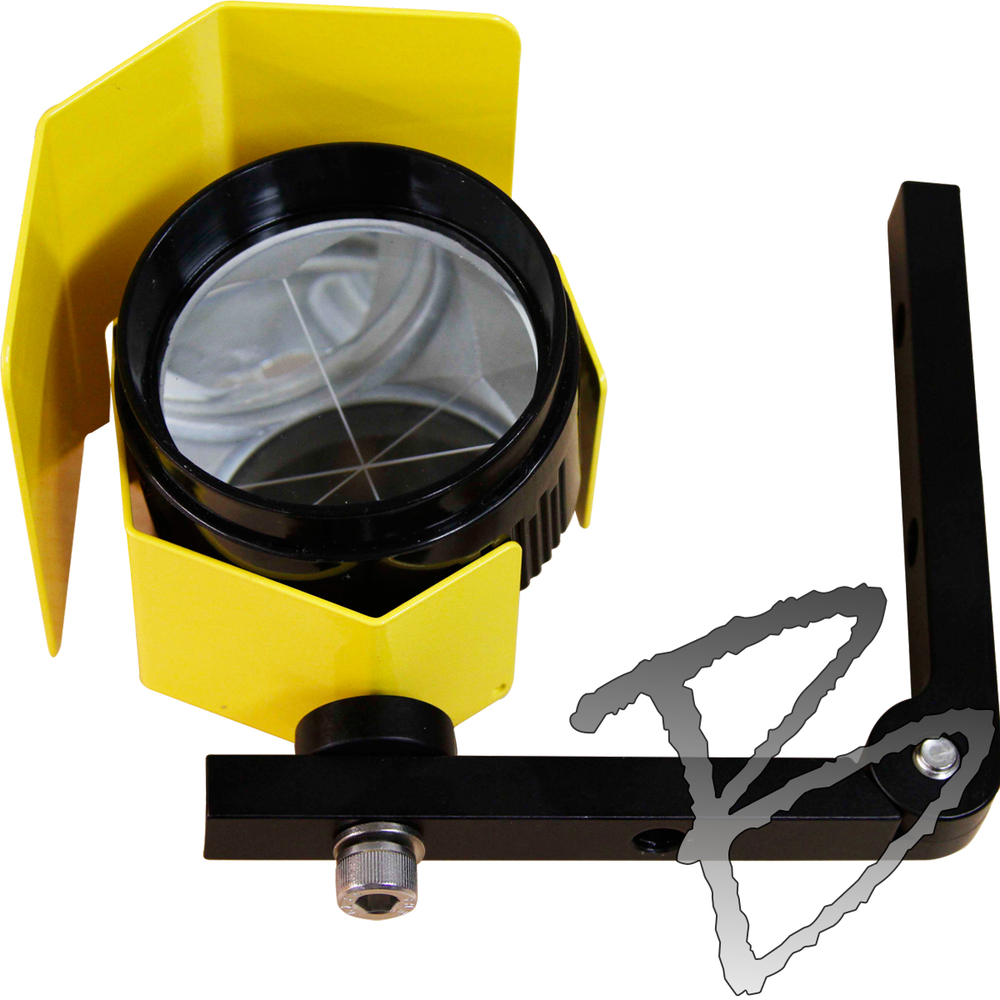

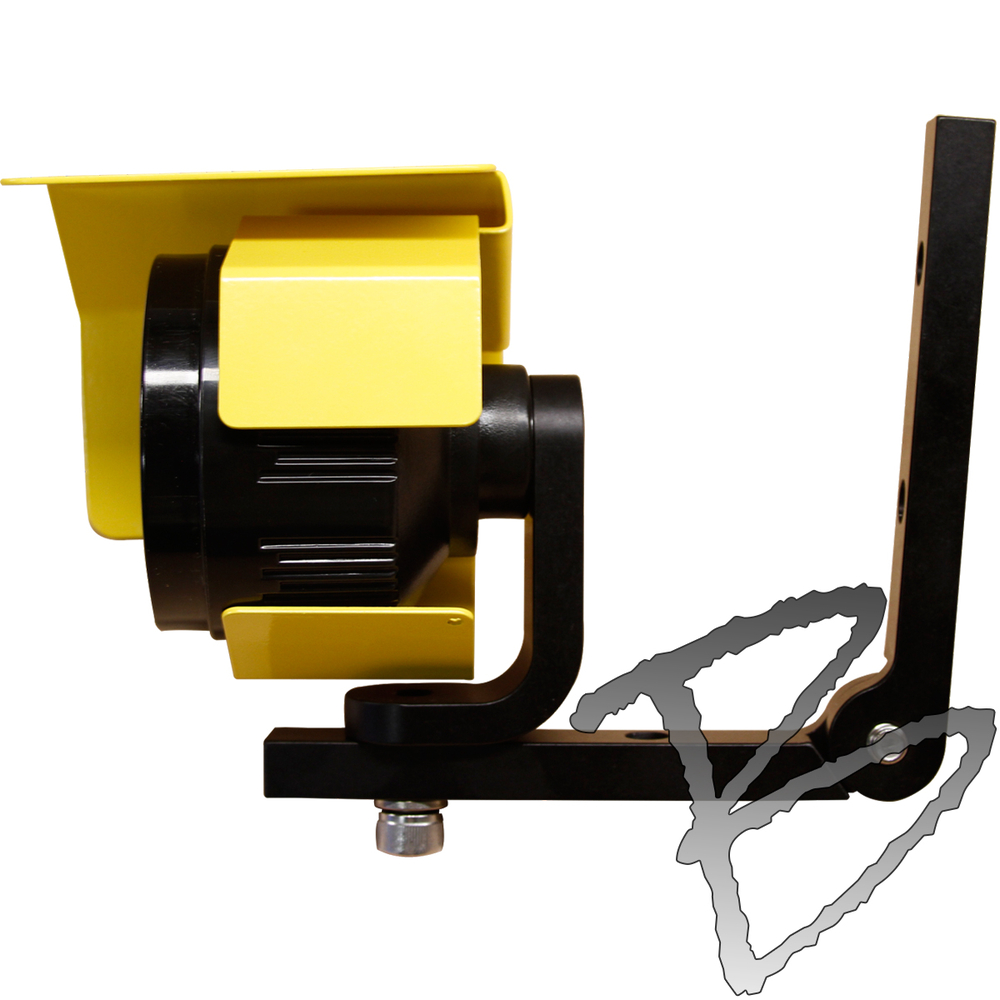

This prism series is ideal for deformation and mining surveys or wherever permanent mounting is needed.
This design makes mounting and pointing easy on uneven surfaces.
Mounting arm allows tilt up to 240 degrees and prism mount allows 360 degrees rotation.
The two mounting holes are spaced 1.75" (44.4mm) apart.
Mounting holes are 0.328" ( 8.3mm ) diameter.
Two prism mounting holes, spaced 1.75" (44.4mm) apart.
Pivot and prism mounting bolts are 8MM stainless steel with lock washers 6mm.
Hex wrench included.
Rain hood included with 6603-05.
Prism size: 62 mm
Silver coated
Weight 1.15lbs (0.52kg)
