Schonstedt Spot Magnetic Locator

Schonstedt Spot Magnetic Locator

Free Ground Shipping on Schonstedts
$875.00 Sale $639.00

Shipping: Free

Brand: Schonstedt Instrument Company

SKU: SPOT

Qty:


Authorized Dealer

Made in America

Schonstedt Spot Magnetic Locator


Trade-in Details PDF

Get The Details

  • If you’re looking for High Accuracy at a Lower Cost, put Spot on the trail of your next locate!
  • Lowest Cost Schonstedt Locator
  • The next generation stick locator
  • Magnetic Locators, including Spot, detect the magnetic field of iron and steel objects.
  • Now comes Spot, with engineering and accuracy equal to the GA-52Cx, in a sleek, ultralight-weight package with improved ergonomics.
  • Spot is IP54 rated and comes with a 7-year warranty
  • Spot is built for rough terrain, severe weather, and rugged daily use.
  • High Sensitivity
  • Ergonomic & Durable
  • Dust & Water Resistant (Rated IP54)

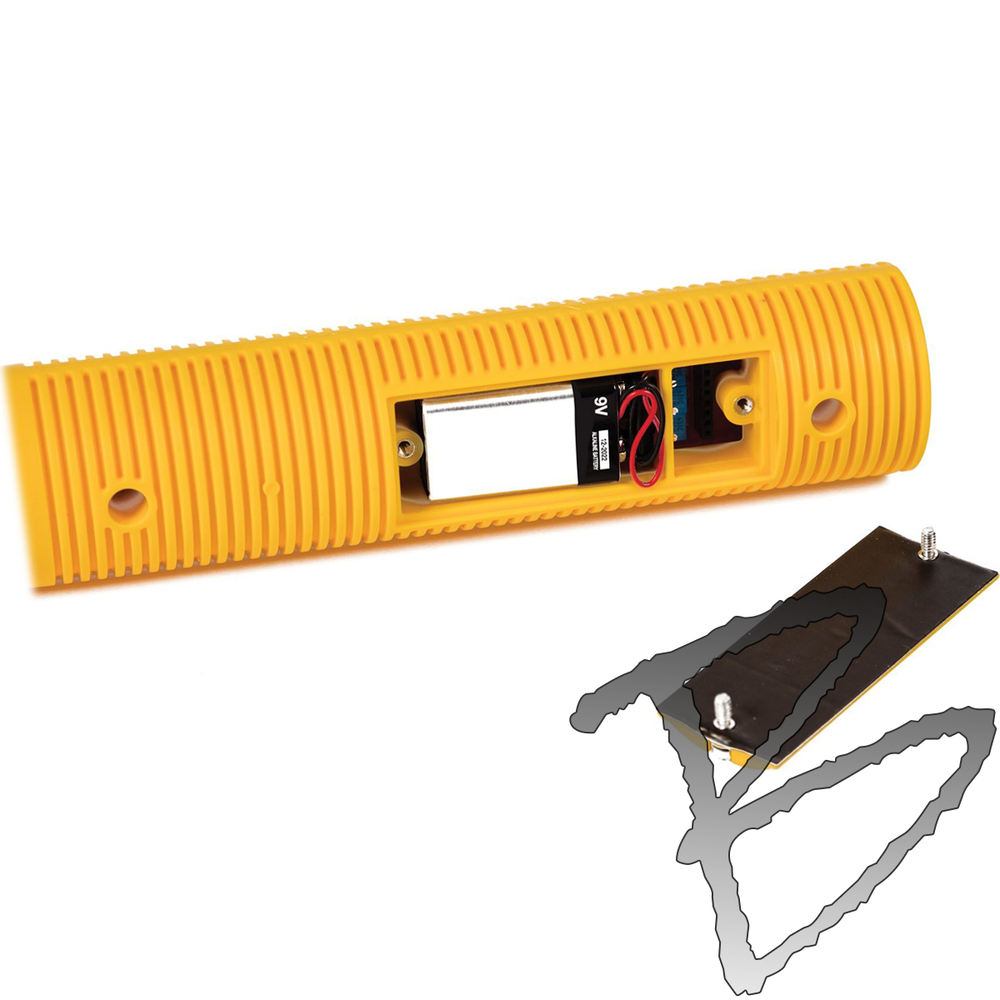

  • Easy access battery removal
  • HeliFlux® sensors
  • Audio Only – No Visual Display
  • No response to aluminum, brass, or copper
  • Includes a soft-case and sling for ease of carrying through rough terrain, hands-free
  • 7-year warranty
  • NEW Anti-roll Guard

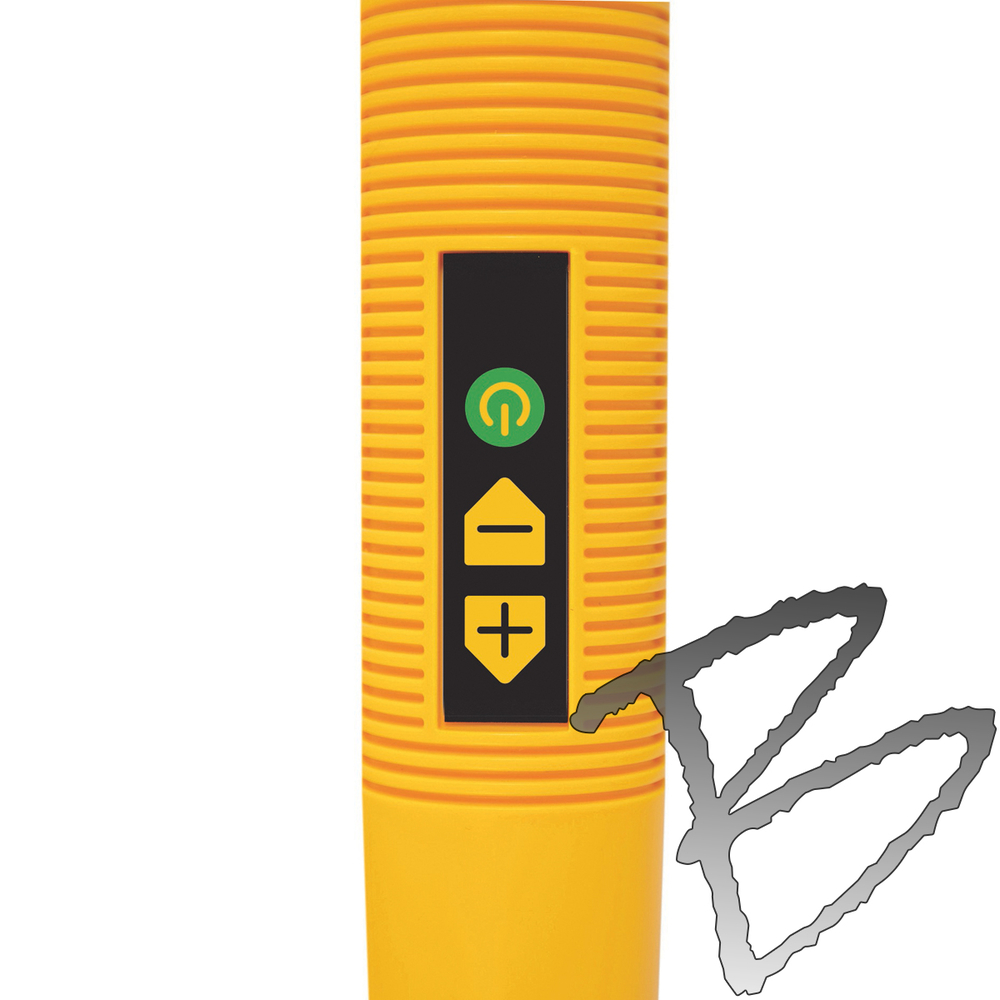

  • NEW Control Panel with Gain Memory
  • It Hits the Spot! - Locates objects up to 18' deep (object dependent)
  • Single-handed operation & no knobs
  • Get a Grip That Works for You - Whether your personal locating style calls for the single-handed convenience of a pistol-grip locator, or the vertical orientation of the GA-52Cx, Spot offers the versatility to work the way you like to work.
  • Made in the USA
Optimized for finding:
  • Survey Pins, Markers and Nails
  • Water & Gas Valves
  • Manhole Covers
  • Other deep iron/steel objects
SPOT Standard Equipment:
  • SPOT Locator
  • Durable & padded case with shoulder sling (p/n: 600044)
  • One 9V Battery (in unit)
Specifications:
  • Audio Output: Frequency increases or decreases with signal strength (gradient field intensity). Range: 30 to 4000 Hz.
  • Depth Detection: Up to 18’ deep (5.48 m) (object dependent)
  • Low Battery Indicator: 1/2 second audio beep, every 13 seconds
  • Gain:
    • 5 levels: Extra Low (1), Low (2), Medium (3), High (4), Extra High (5),
    • Audio: Progression of audio beeps to correlate with gain setting (one beep for #1, two beeps for # 2, and so on)
    • Gain Memory: Remembers last setting used
  • Volume: Fixed
  • Input Power: One 9V Battery (in unit)
  • Battery Life: 24 Hours (intermittent usage)
  • Operating Temperature: -13°F to 140°F (-25°C to 60°C)
  • Overall Length: 42.3 in (107.4 cm)
  • Nominal Sensor Spacing: 20 in (50 cm)
  • Weight: ~2.0 lbs (0.9 Kg)
  • Water and Dust Protection: Rated IP54 overall, waterproof up to 27” (58 cm) from bottom tip
  • Construction Material: High impact ABS body, Aluminum tube for sensors

How to Locate Training Videos

SPOT Product Brochure

SPOT Manual PDF

  • Audio Output: Frequency increases or decreases with signal strength (gradient field intensity). Range: 30 to 4000 Hz.
  • Depth Detection: Up to 18’ deep (5.48 m) (object dependent)
  • Low Battery Indicator: 1/2 second audio beep, every 13 seconds
  • Gain:
    • 5 levels: Extra Low (1), Low (2), Medium (3), High (4), Extra High (5),
    • Audio: Progression of audio beeps to correlate with gain setting (one beep for #1, two beeps for # 2, and so on)
    • Gain Memory: Remembers last setting used
  • Volume: Fixed
  • Input Power: One 9V Battery (in unit)
  • Battery Life: 24 Hours (intermittent usage)
  • Operating Temperature: -13°F to 140°F (-25°C to 60°C)
  • Overall Length: 42.3 in (107.4 cm)
  • Nominal Sensor Spacing: 20 in (50 cm)
  • Weight: ~2.0 lbs (0.9 Kg)
  • Water and Dust Protection: Rated IP54 overall, waterproof up to 27” (58 cm) from bottom tip
  • Construction Material: High impact ABS body, Aluminum tube for sensors
