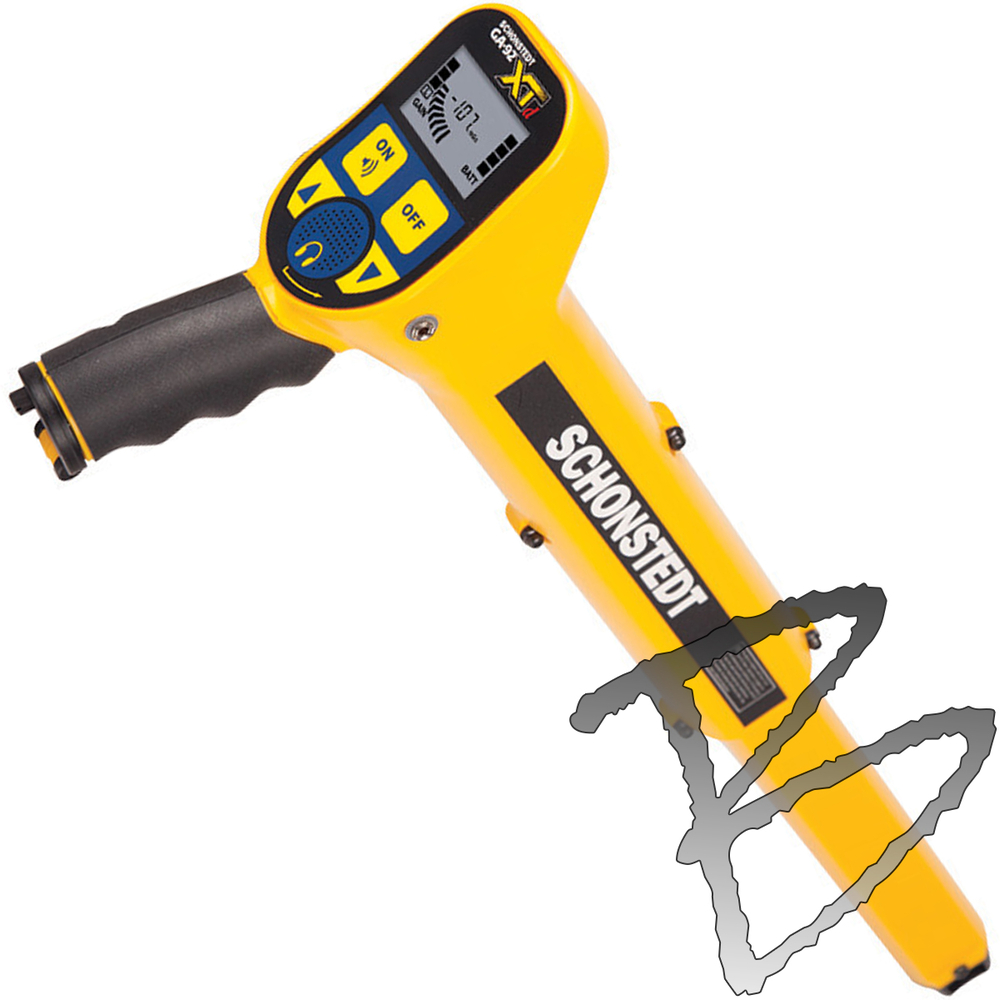

Schonstedt GA-92XTd Magnetic Locator

Schonstedt GA-92XTd Magnetic Locator

$1,308.00 Sale $1,200.00

Brand: Schonstedt Instrument Company

SKU: GA-92XTd

Qty:


Authorized Dealer

Made in America

Schonstedt GA-92XTd Magnetic Locator
  • Get up to $150 off with Schonstedt's Trade-In Program—click here for details!
  • NEW for 2016: GA-92XTd with Membrane Switch & Precision Signal Strength Indicator*

Feedback from Schonstedt's customers has always been vital to driving product innovation at Schonstedt. There popular GA-92XTd magnetic locator was introduced in 2002 and quickly became known as the most portable and easy-to-use locator on the market. And now with a new membrane switch to enhance single-handed control and operation, it remains the locator of choice for all-around use.

  • One hand operation makes finding faster, providing both audio and visual indication of ferrous objects up to 16 feet underground.
  • Extended mode for great accuracy; retracts for easy carrying and storage
  • Fingertip control of volume and sensitivity
  • Quick change battery compartment
  • Battery indicator
  • And the new XTd follows the Schonstedt tradition of ruggedness and reliability.
  • So go ahead, make your move to the new Schonstedt GA-92XTd.

You’re a highly trained, experienced professional but carrying heavy tools is still part of the job. When you have your hands full on the job site, carry the XTd on your hip. With one hand, you can detect the magnetic fields of all ferromagnetic objects property markers, manholes, septic tanks, well casings, valve boxes, cast iron pipes, steel drums, unexploded ordnance up to sixteen feet below the surface.

GA-92XTd Features:
  • Most portable and ergonomic
  • Smallest for easy storage
  • Membrane Switch for Single-Handed Operation
  • Battery Replacement in grip (does not expose electronics)
  • Audio & Visual Output
  • Battery & Sensitivity Indicators

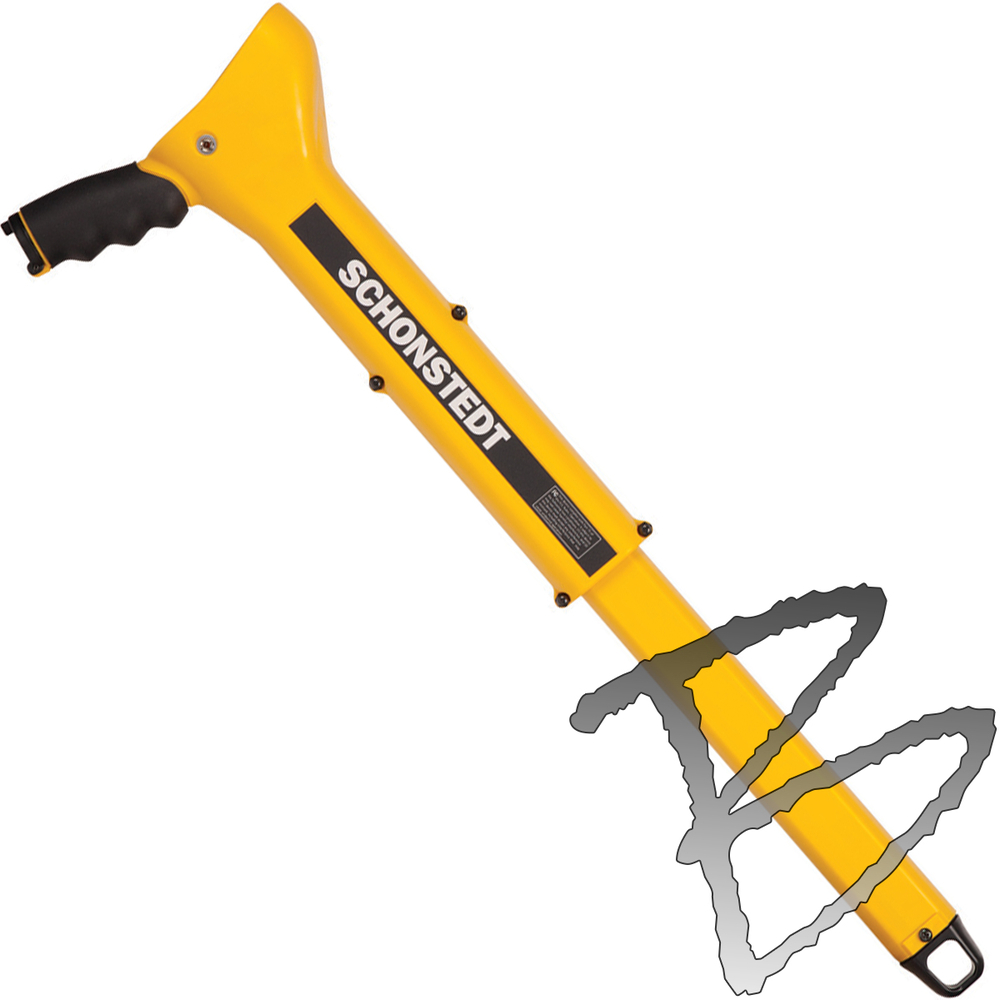

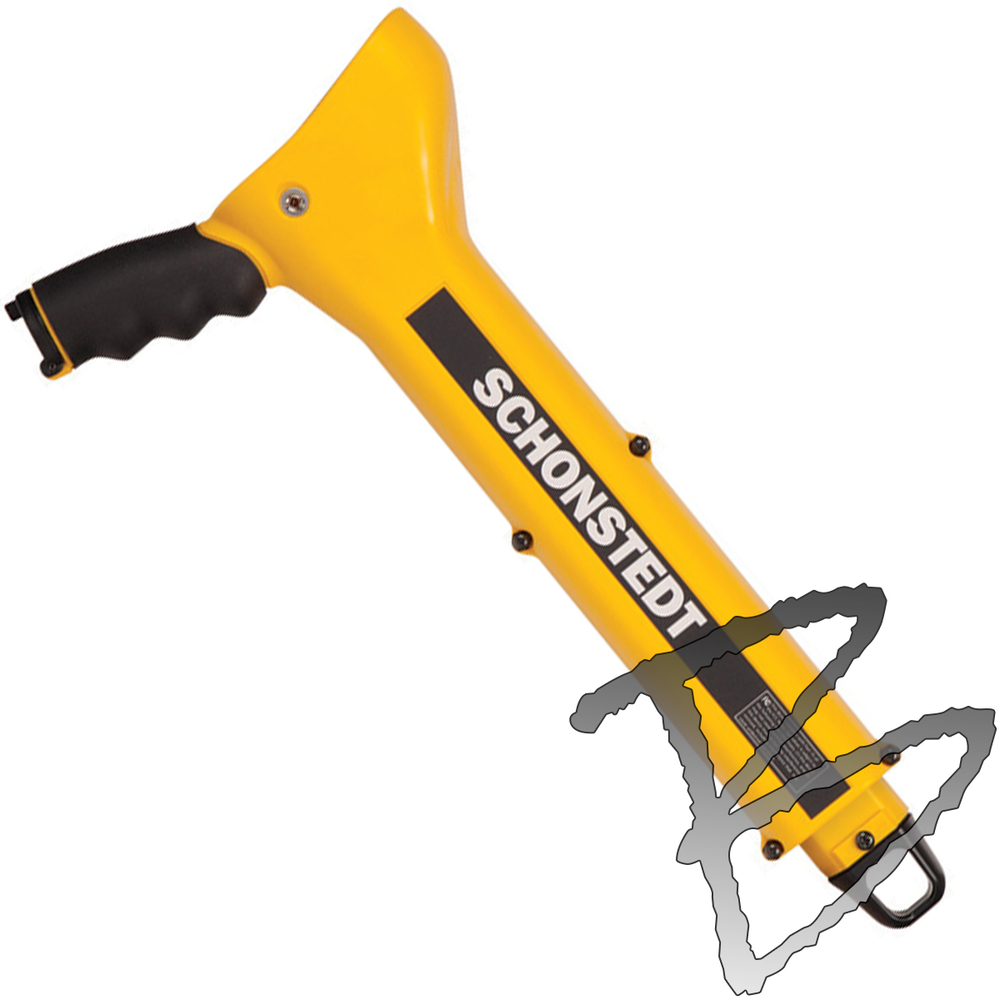

  • Operates in both retracted and extended modes
  • Signal Strength and Polarity Indications
  • No response to aluminum, brass, or copper
  • Patented HeliFlux® sensors
  • Modular construction; high performance components; 7-year warranty
GA-92XTd Standard Equipment

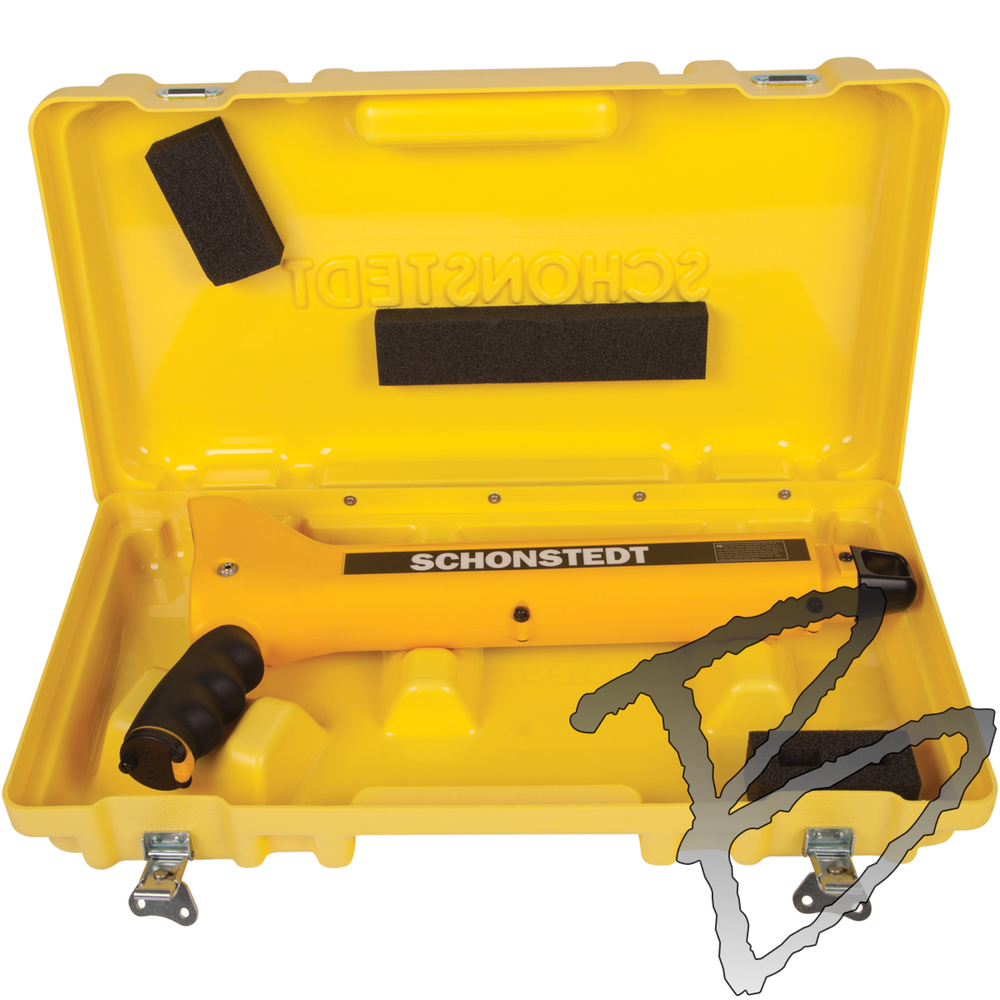

  • Carrying Case (p/n: XT50000)

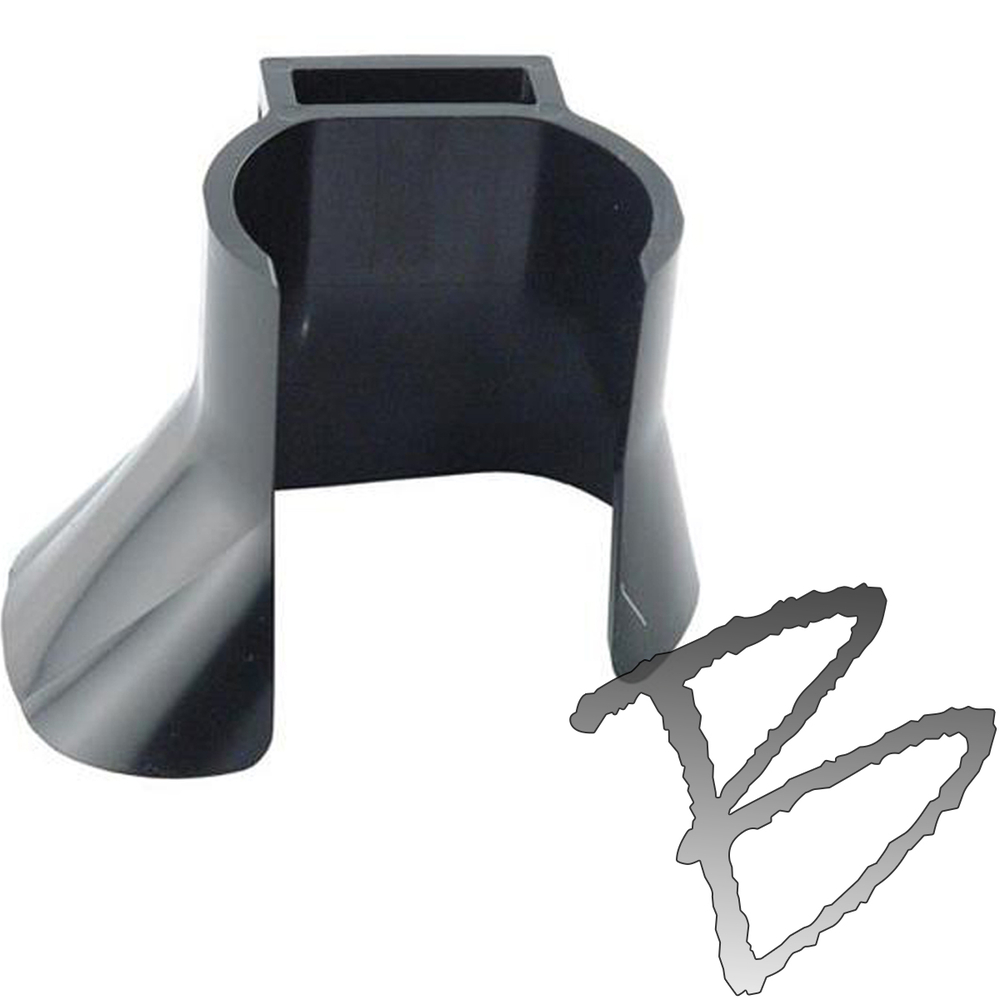

  • Holster (p/n: PC10012)
  • 9V Lithium Battery (in unit) (p/n: B11014)
GA-92XT - One model to choose from:
  • GA-92XTd: XTd Model with LCD gain, battery and signal strength/polarity Display
  • GA-92XTi: XTi Model with LCD gain and battery display  - Discontinued
GA-92XTd Specifications:
Audio Output Signal increases or decreases in frequency with signal strength (gradient field intensity). Audio frequency range - 30 to 4000 Hz.

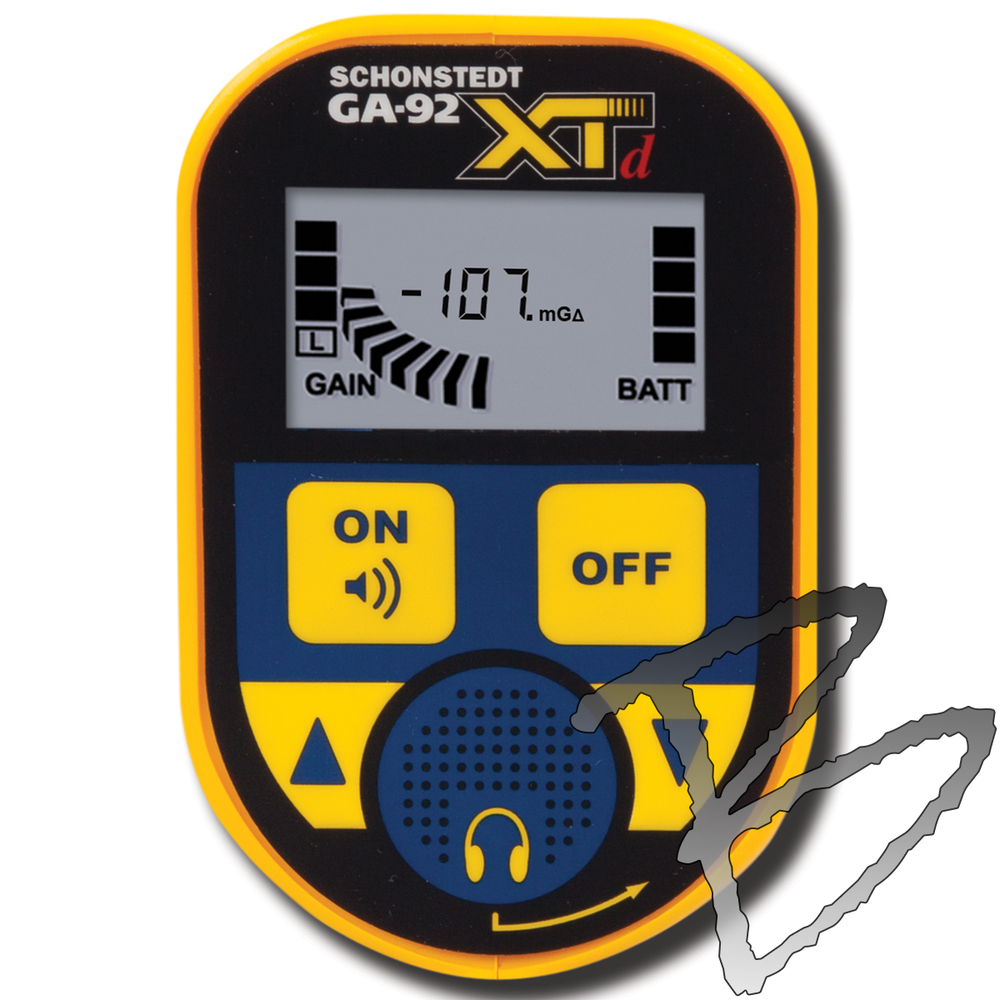

Visual Output* Visual: Expanding bar-graphs indicate polarity (positive or negative) and signal strength. Digital readout shows gradient field intensity expressed in milligauss (mG). Range – 0 to 500 mG
Battery Indicator 4-segment LCD
Gain 4-Level LCD - Low (L), Medium (M), High (H), Extra High (XH)
Volume 3 Levels, Muted, Medium and Maximum
Input Power Supplied by one 9V lithium battery (lithium recommended, but not required)
Battery Life 24 Hours (intermittent usage)
Operating Temp -13° F to 140° F (-25° C to 60° C)
Overall Length Open – 26” (66 cm)
Closed – 15.5” (39 cm)
Water Resistant Length 11.5” (29 cm), only when operated in open position
Nominal Sensor Spacing 9.5” (24 cm)
Weight Approximately 2.4 lb (1.1 kg)
Construction Material High impact ABS

 * Refers to GA-92XTd model only.



How to Locate Training Videos

GA-92XTd Brochure

GA-92XTd Manual PDF

Audio Output Signal increases or decreases in frequency with signal strength (gradient field intensity). Audio frequency range - 30 to 4000 Hz.
Visual Output* Visual: Expanding bar-graphs indicate polarity (positive or negative) and signal strength. Digital readout shows gradient field intensity expressed in milligauss (mG). Range – 0 to 500 mG
Battery Indicator 4-segment LCD
Gain 4-Level LCD - Low (L), Medium (M), High (H), Extra High (XH)
Volume 3 Levels, Muted, Medium and Maximum
Input Power Supplied by one 9V lithium battery (lithium recommended, but not required)
Battery Life 24 Hours (intermittent usage)
Operating Temp -13° F to 140° F (-25° C to 60° C)
Overall Length Open – 26” (66 cm)
Closed – 15.5” (39 cm)
Water Resistant Length 11.5” (29 cm), only when operated in open position
Nominal Sensor Spacing 9.5” (24 cm)
Weight Approximately 2.4 lb (1.1 kg)
Construction Material High impact ABS
