• Item# KS3-LB10M

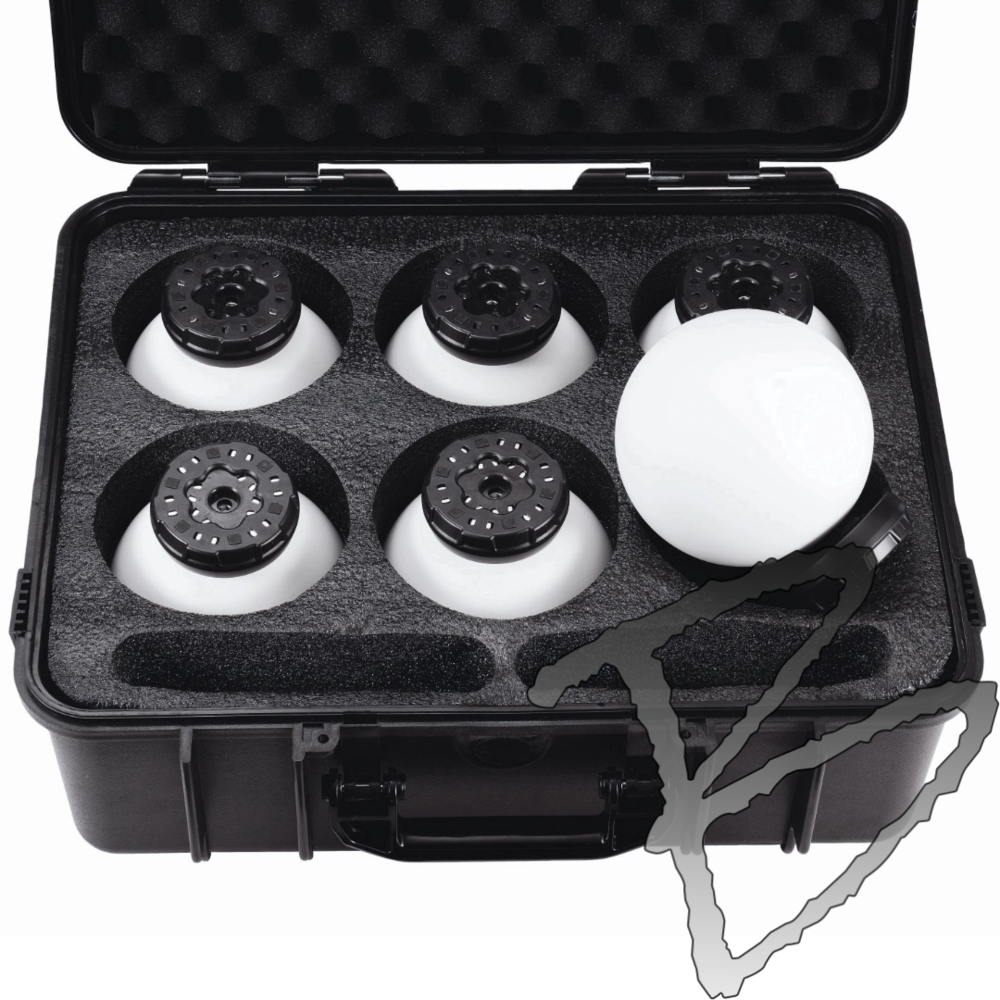

• Set of (6) RSLB10M; 145mm (5.1") scanner spheres with magnetic base and hard case

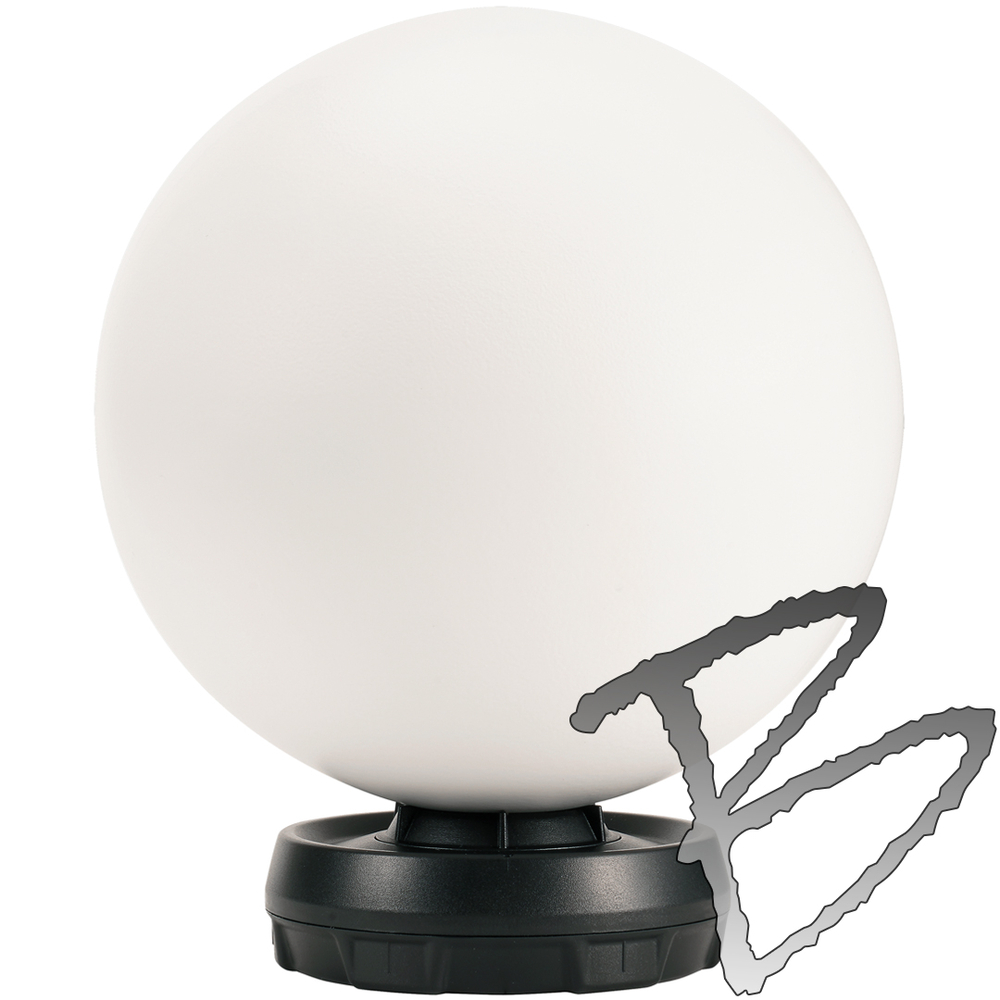

• Laser Scanner Spheres with magnetic base
• Plastic scanning sphere featuring special matte textured lacquer for optimum reflection behaviour.
• Shock-resistant plastic.
• Washable and dishwasher-safe surface
• Fixed points for linking several viewpoints
• Assignment of spatial reference information to a geodata set
• Can be used from all sides
• Suitable for indoor and outdoor use

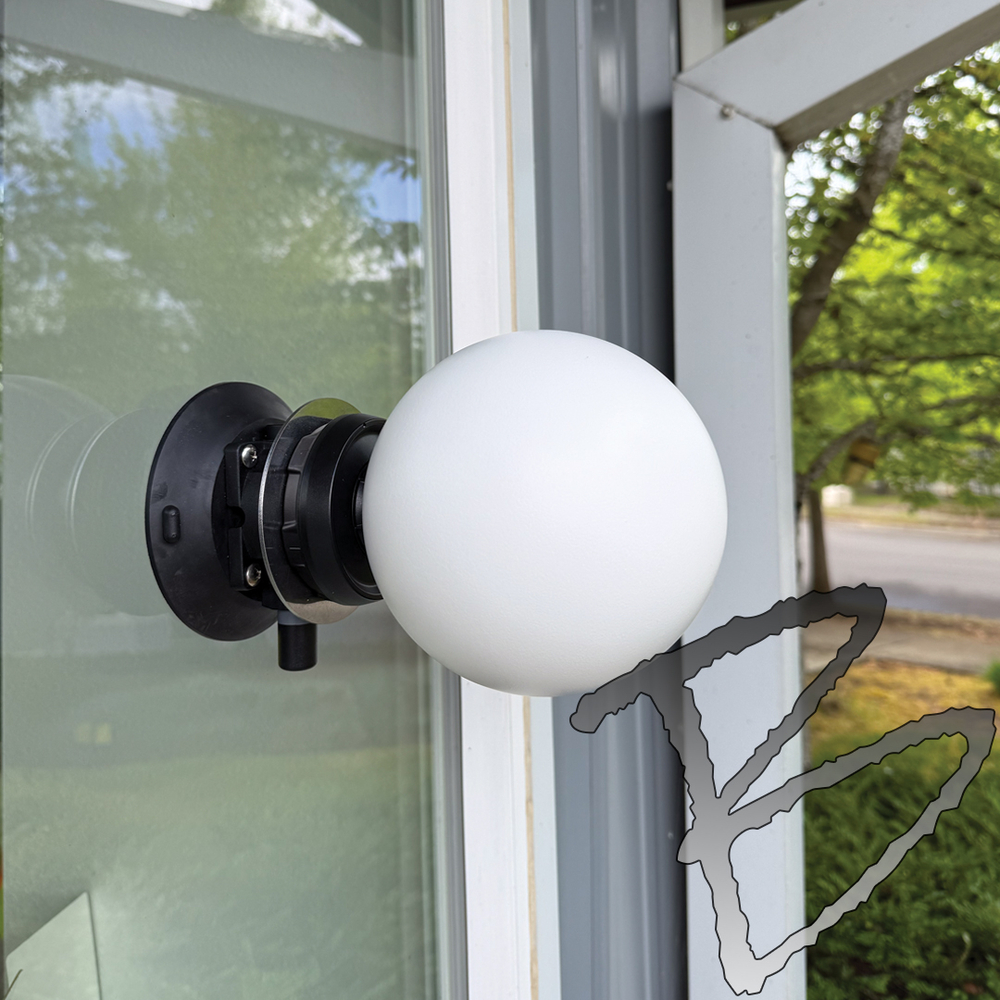

• Optional Suction Cup Mounts; RSSV-X90 and RSSV-X99 both sold Separately - Enables the use of the laser scanner target on any smooth surface such as glass or smooth furniture fronts without drilling or gluing!
• Priced per Each, Sold per Each

Magnetic base:

• Special magnetic base with 10 magnets for all metallic surfaces and other applications
• With recess for use in conjunction with RSFP-X90 fixed points
• For use in conjunction with RSFP-X90-1, RSFP-X902 and RSFP-X90-3 adapters (all sold seperately, Call 877-844-3101 to order:)
  • This allows the laser scanner target to be placed on any standard tripod or trivet.
  • This allows the laser scanner target to be placed exactly over an RS Mini Prism.
• The 100mm tilt axis height corresponds to common prisms so that the XYZ coordinates can also be determined easily and precisely using a total station.

Technical data:

• Diameter: Ø 145mm (5.71")
• Tilting axis height: 100 mm (3.94")
• Weight of scanner sphere (sphere only): 250 g (8.82oz)
• Sphericity: 0.3 mm at 20 ºC (0.012" at 68ºF)
• Accuracy radius: ± 0.15 mm at 20 ºC (± 0.006 inches at 68°F)
