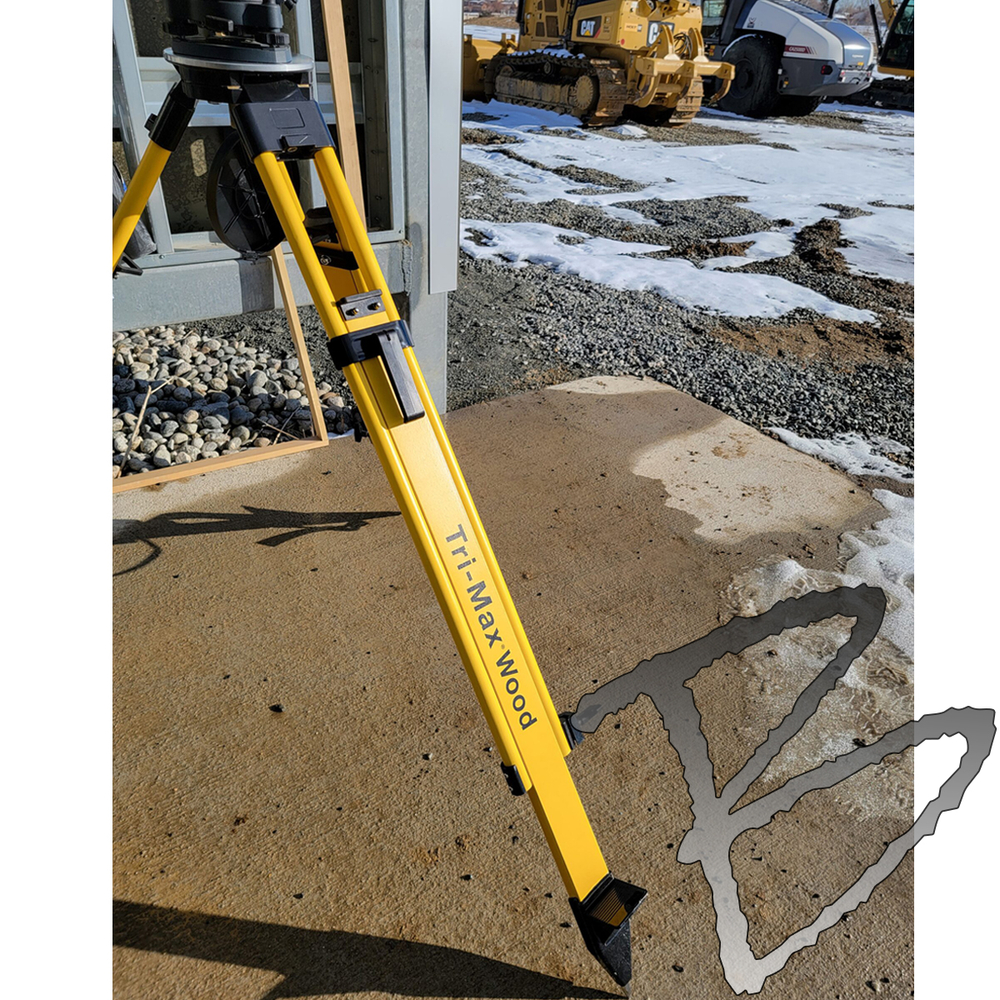

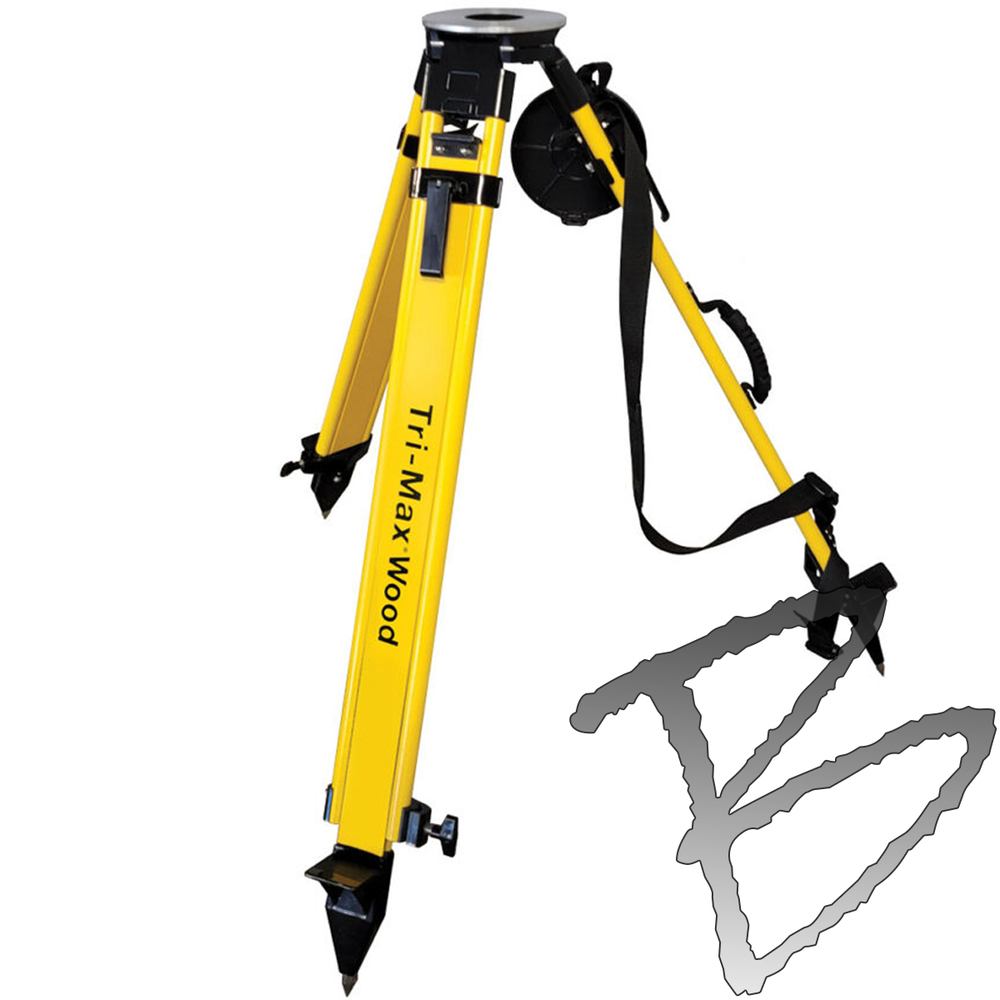

The Tri-Max®, designed and manufactured by SECO, is the only
surveying grade tripod with certified accuracy – highly recommended for
all servo driven and robotic total stations, 3-D laser scanners or
construction lasers
The revolutionary design of this tripod series means this tripod
will meet ISO standard (12858-2-H) right out of the box, and after years
of field use

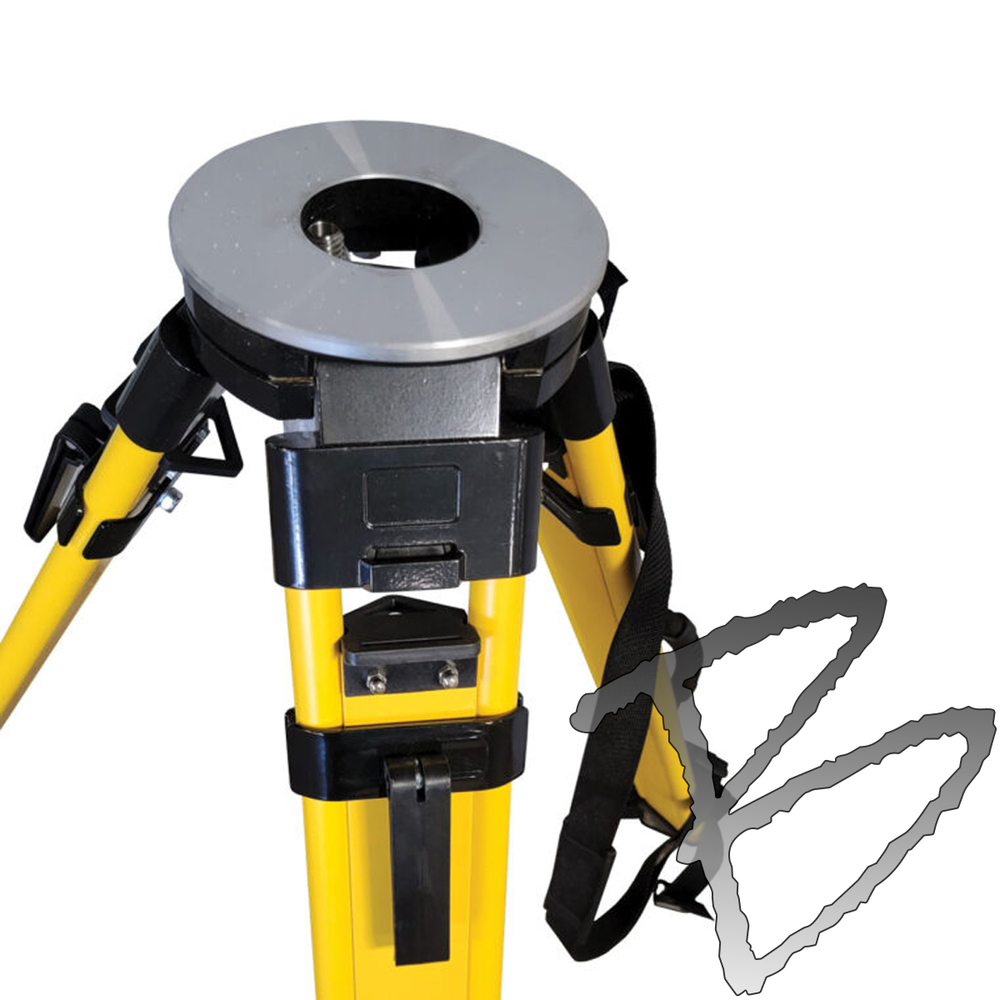

Features a 6.5-inch Flat head with large center hole (2-5/8 inch) to facilitate an easy set-up over a point
Solid one piece 5/8-11 instrument fastener with solid, one-piece 303 Stainless Steel instrument fastener bridge

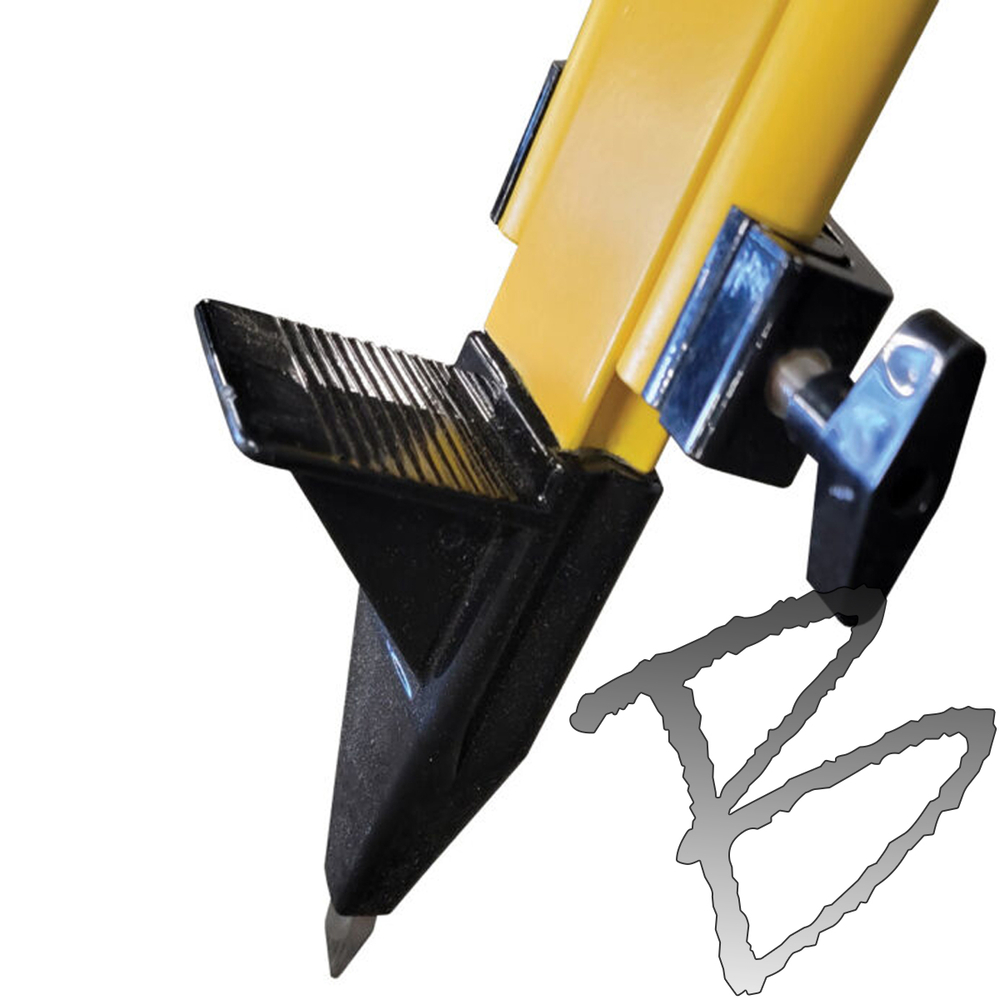

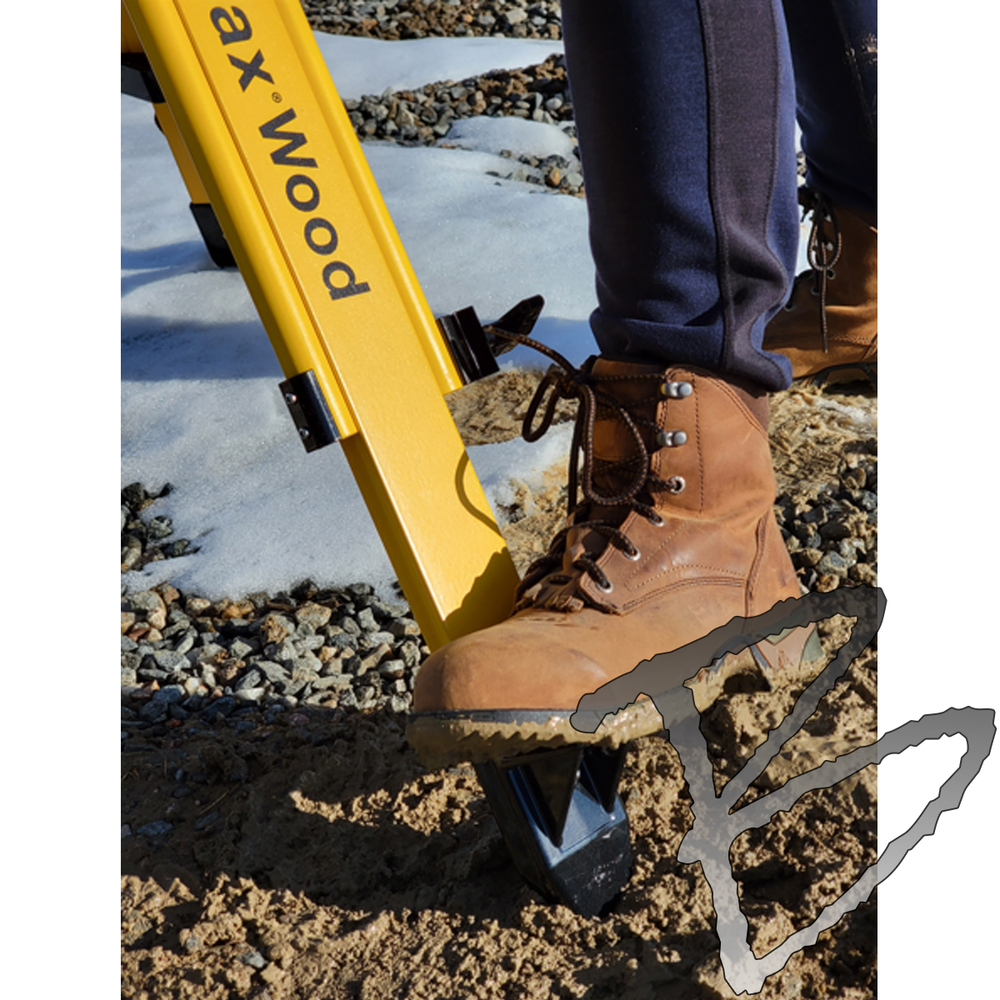

The large foot is designed specifically for surveyors who have asked
for wide, angled tabs to allow even muddy boots to have a secure grip
when setting up
Tested to ASTM G154 weather standard for long life in harsh conditions
Brass bushings ensure stability and long life
Individual SN for ID and inventory control
The Tri-Max can handle equipment up to 65 lb (30 kg)
Dual Clamp Lock type
Black Hardware, Sealed Hardwood Legs
Length Extended: 71 inches (183 cm)

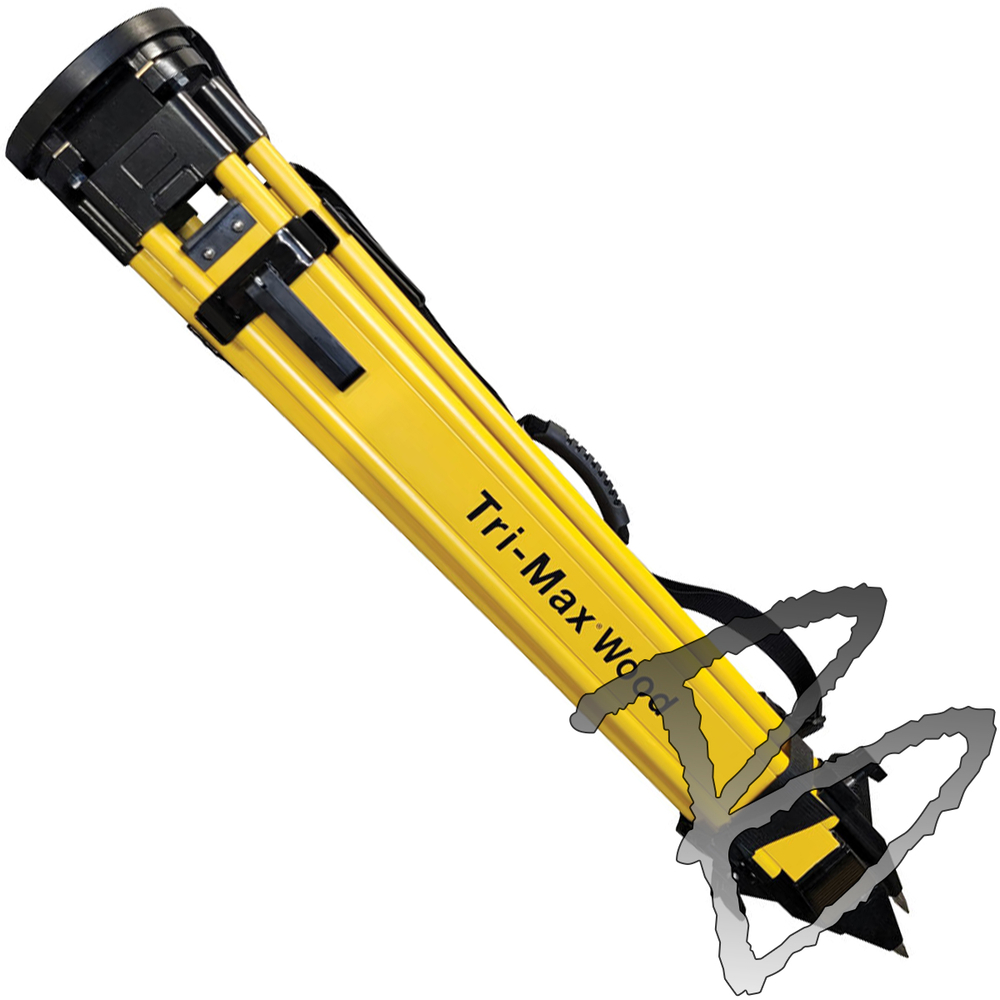

Length Collapsed: 45 inches (114 cm)
Weight: 19.65 lb (8.9 kg)
