Husky Portable Containment Steel Folding Frame Tank

Husky Portable Containment Steel Folding Frame Tank

$744.50
Price: From $744.50 to $2788.50

Brand: Husky Portable Containment

SKU: STF

Qty:


Authorized Dealer

Made in America

Husky Portable Containment Steel Folding Frame Tank
  • Now featuring Husky's new and exclusive EXLON™ liners!
  • Husky folding water tanks include their exclusive "Easy Lift Handles" (patent pending) and quick-release drain tube, making Husky the easiest to handle folding water tank on the market.
  • 500-5000 gallons
  • All frame tanks are 29" tall
  • Frame Type: Steel
  • Pinch-free design - these frames will not pinch your hands or fingers in the folding areas.
  • Feel the confidence to know you can quickly deploy your portable tank without risking injury.
  • There are no bulky add-on pieces to get it the way or get pinched with.
  • Liners: Liners come in all 22oz vinyl, or 22oz vinyl sides with a heavier duty 28oz vinyl Base, or all 30oz vinyl, or all 22oz EXLON™ material.
  • Also available in a double folding frame style (DFT *add-on Charge)
  • The double folding frame tanks have a second folding point on the long side of the frame allowing you to fold the frame tank one more time cutting the overall length in half for the end user that has limited storage space.
  • Custom-size tanks available, Call 877-844-3101 or use the Contact Us page to start the custom process
Steel Frame Type
  • 7/8" od., 14 gauge (HREW P & O) Round Tube Steel (3/4" square tube, 14 gauge steel available)
  • Superior heavy duty laser cut hinge design
  • Mig welded construction, guaranteed!
Liners:
  • Husky port-a-tank liners are designed with no bulky corners full of excess material that you don't need.
  • Husky Portable Containment's patent-pending manufacturing process allows them to use one continuous piece of heavy duty material for the side panel, which is then welded to the Heavy duty floor material.

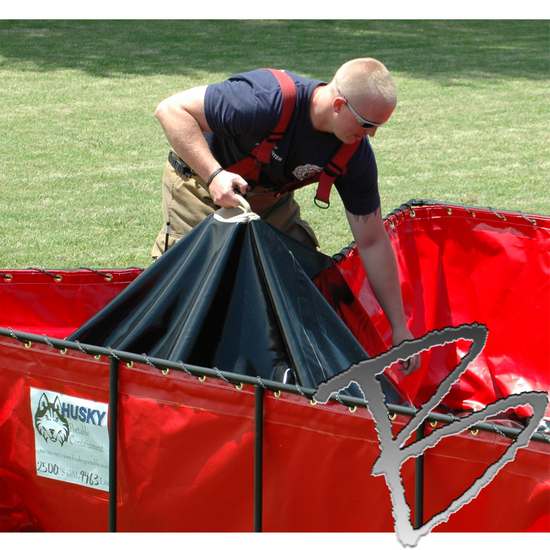

  • Easy Lift Handles, offered only by Husky, are mounted on the floor of their liners and make pick-up quick and easy
  • Husky's frame tank liners are the most durable and easiest to use on the market today.
  • Exclusive, patent pending, heavy duty floor increases the durability of the liner.
  • With Husky's heavy duty acrylic-coated 30oz. floor material standard, Husky's folding frame tanks are the most durable on the market. Better than Hypalon!
  • 10" drain tube with quick release for fast draining or mating with another tank - Two drain tubes are standard on 2500+ gallon tanks
  • #4 solid brass grommets
  • Double stitched, triple reinforced hems
Vinyl Liner Materials:
  • Vinyl liners come in all 22oz, 22oz sides with a heavier duty 28oz base, or all 30oz.
  • 22oz. liners are available in red, yellow, blue, orange, green and black.
  • 30oz. available in red, yellow, orange and black
  • (Call 877-844-3101 or use the Contact Us page to order additional colors other then red or yellow)
EXLON™ Liner Material:
  • Husky Portable Containment is proud to introduce our new EXLON™ folding frame tank liner material, which has been designed to replace DuPont's discontinued Hypalon liner material.
  • EXLON™ is an ethylene interpolymer alloy
  • EXLON™ was designed with UV resistance, heat resistance, abrasion, puncture resistance and excellent cold cracking qualities in mind allowing Husky to offer the best folding tank liner material on the market.
  • EXLON™ has incredible strength as well; it can be used in tanks up to 10,000 gallon capacity.
  • EXLON™ comes with a ten year warranty against UV and weather elements.
  • EXLON™ can stand up to the desert sun and the cold Alaska winters for 10 years and beyond.
  • EXLON™ available in red or yellow ONLY.
Customizable Folding Frame Tanks available:
  • Any Custom-size tanks available
  • Ground and top covers available
  • Optional Clear view panel liner - a 12" wide heavy-duty, reinforced clear vinyl panel that allows you to easily view water level from any angle
  • Vinyl liners are also available in NSF 61 approved 30oz. potable material and in chemical and fuel resistant materials that are great for oil spill clean-up or petroleum storage.
  • Call 877-844-3101 or use the Contact Us page to start the custom process

Standard Dimensions:

Capacity Open Dimensions Folded Dimensions* Weight (Steel Frame)
500 Gal. 5'8" x 5'8" x 29" 7" x 5'8" x 29" 90 lbs.
750 Gal. 7'0" x 7'0" x 29" 7" x 7'0" x 29" 97 lbs.
1000 Gal. 8'3" x 8'3" x 29" 7" x 8'3" x 29" 116 lbs.
1500 Gal. 10'3" x 10'3" x 29" 7" x 10'3" x 29" 138 lbs.
2100 Gal. 11'3" x 11'3" x 29" 7" x 11'3" x 29" 154 lbs.
2500 Gal. 12'3" x 12'3" x 29" 7" x 12'3" x 29" 169 lbs.
3000 Gal. 13'3" x 13'3" x 29" 7" x 13'3" x 29" 185 lbs.
3500 Gal. 14'3" x 14'3" x 29" 7" x 14'3" x 29" 205 lbs.
4000 Gal. 15'3" x 15'3" x 29" 7" x 15'3" x 29" 223 lbs.
5000 Gal. 17'3" x 17'3" x 29" 7" x 17'3" x 29" 269 lbs.

See all portable tanks.
