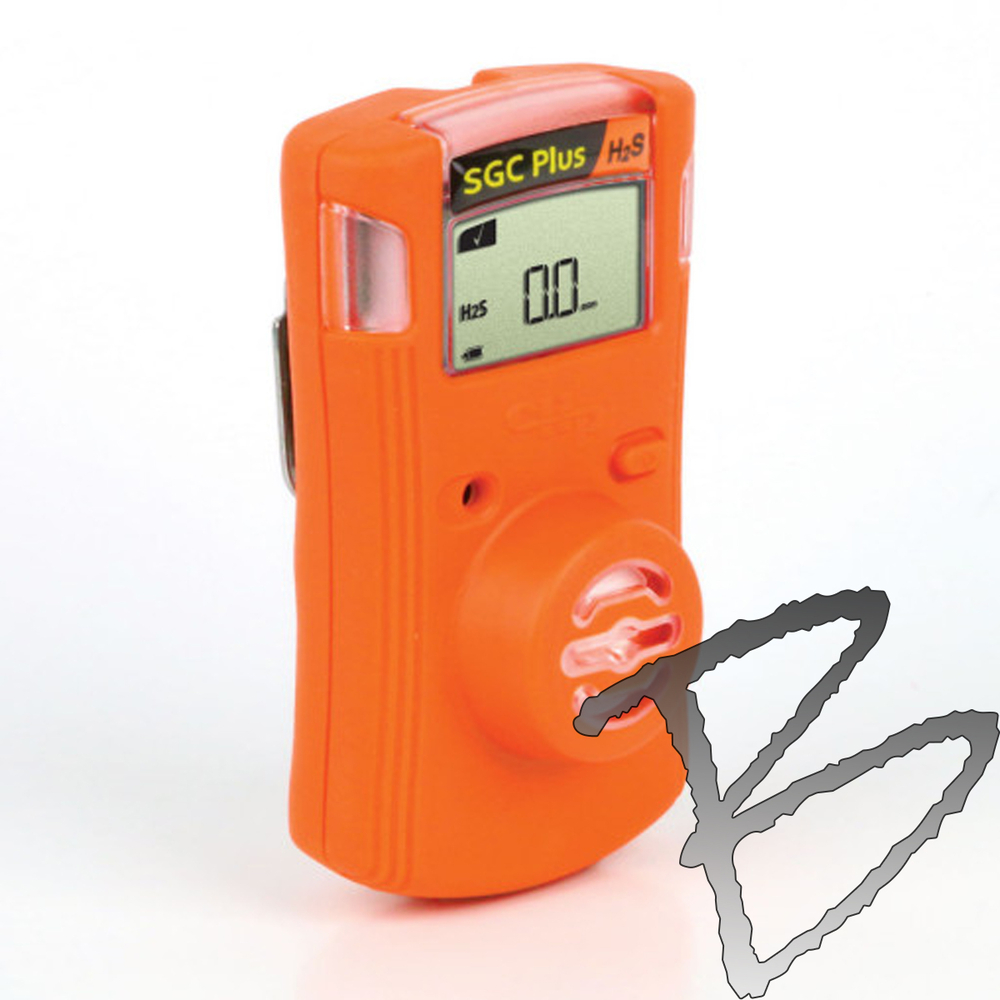

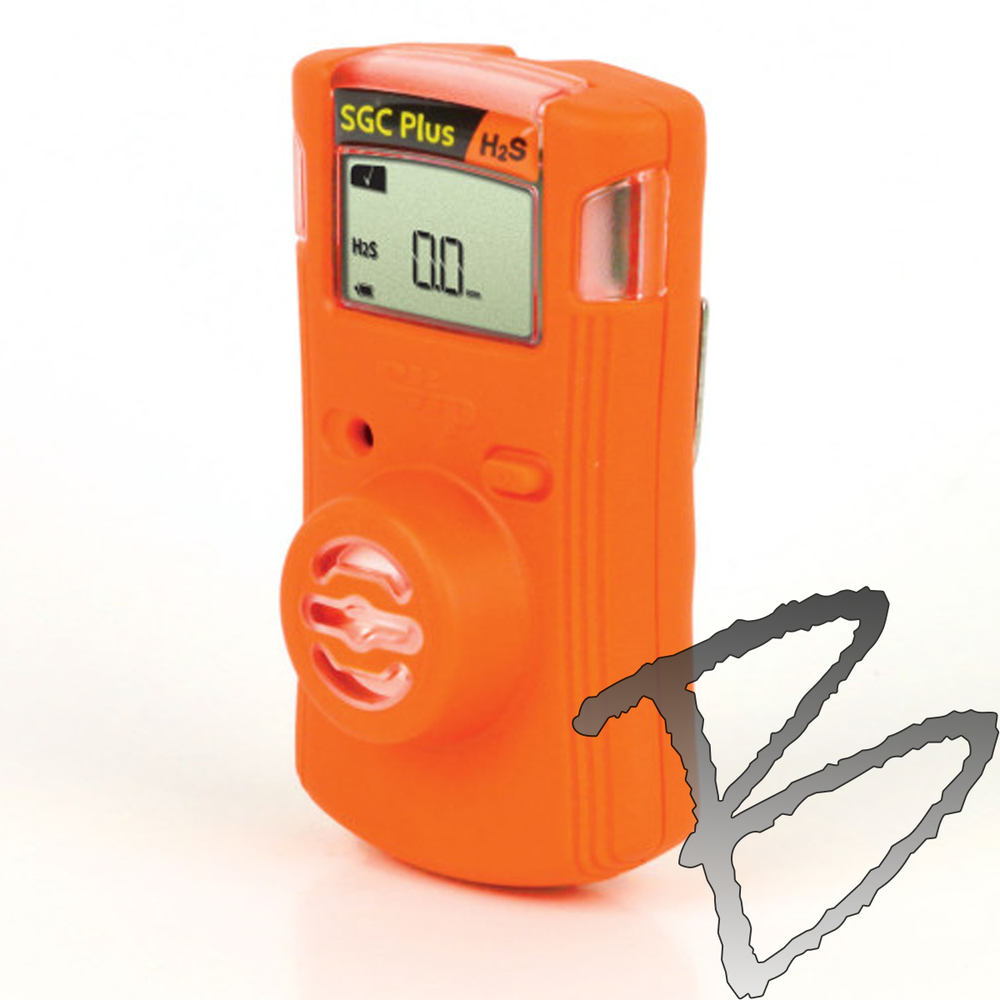

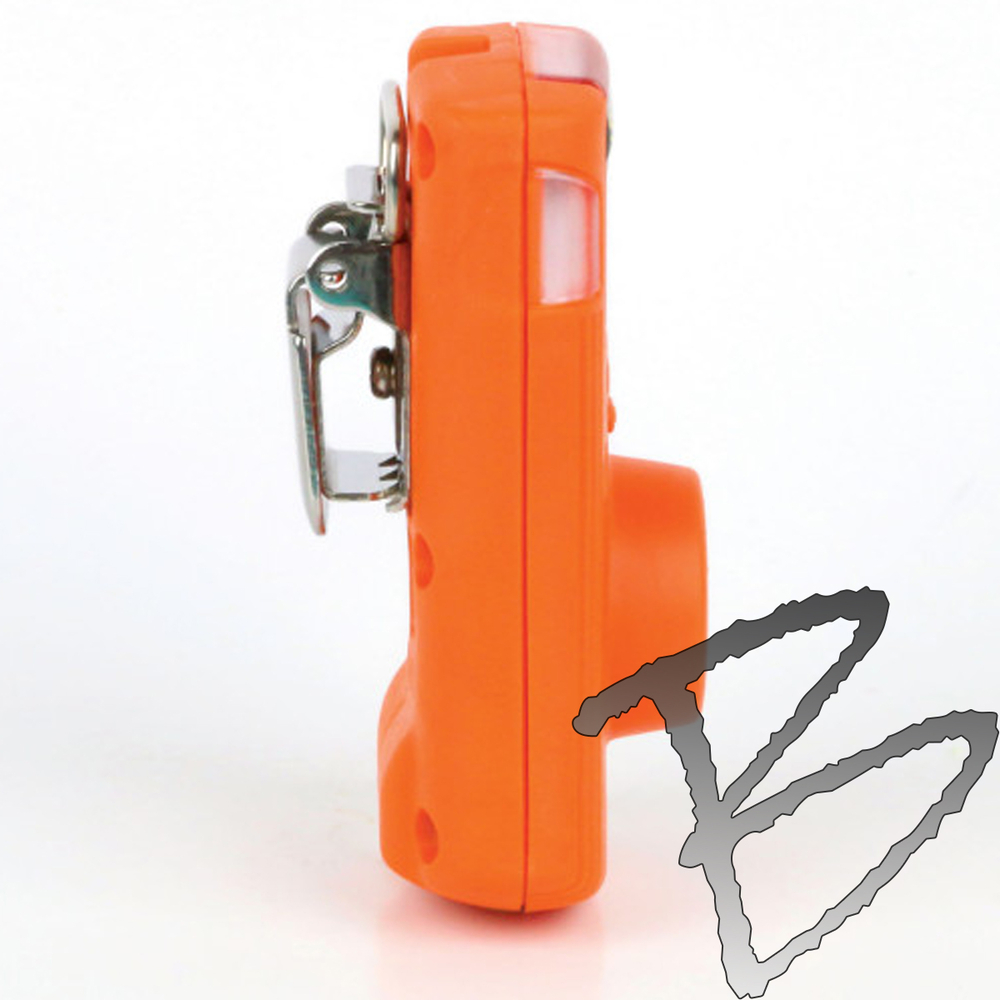

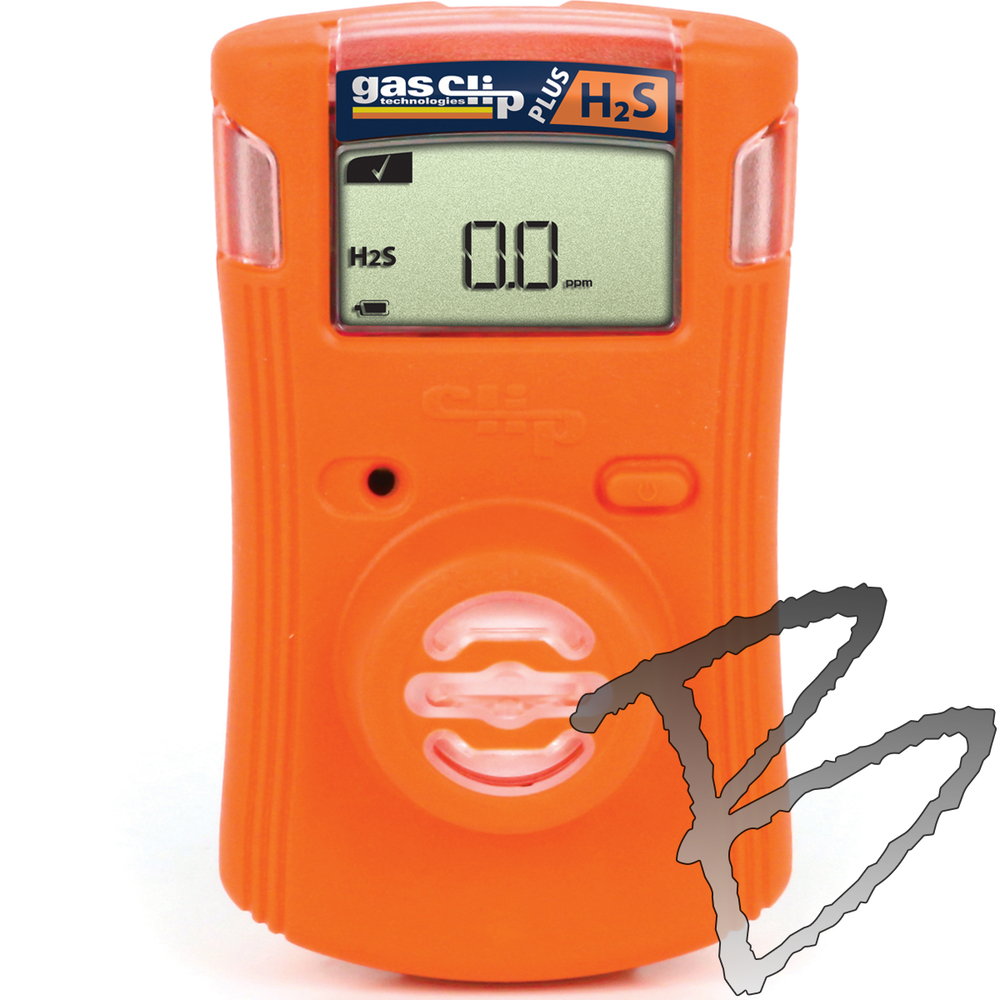

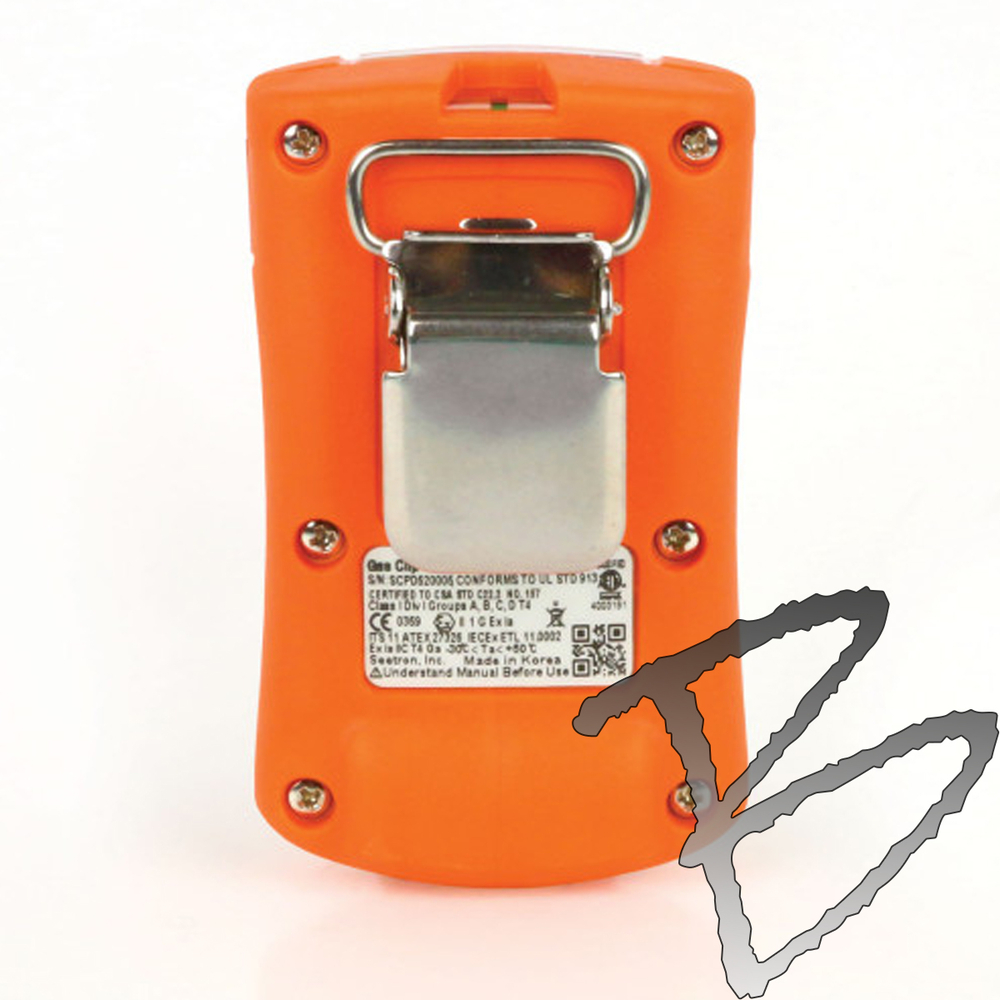

Gas Clip Technologies Single Gas Clip PLUS; H₂S or CO
Gas Clip Technologies Single Gas Clip Plus or SGC Plus, is the only maintenance free handheld gas detector available with “Hibernate” mode.
“Hibernate” mode allows users to place this disposable single gas detector in a rested state when not in use.
The SGC Plus is perfect for seasonal/turnaround contractors or rental fleets.
When your job or turnaround is finished, simply synchronize the instrument with our IR Link or SGC Dock and put the detector in a rested state.
When you are ready to use the detector again, simply press the power button to reactivate the detector
With the SGC Plus, you only pay for the time that the handheld gas detector is in use.
Each SGC Plus will last for 24 months of use and comes with a warranty of 24 months of use or 3 years from activation (whichever comes first).
However, this mode (Hibernate) can only be enabled via IR communication with either the IR Link or SGC Dock accessories (not by a button push), so only authorized personnel can place the units in “hibernate” mode.
The SGC Plus also provides the most advanced maintenance free disposable single gas detector on the market.
Unlike other disposable single gas detectors, the SGC Plus combines a rugged design and reliability with advanced sensor resolution (0.1 ppm for H2S models).
Advanced micro processing capabilities allow for quick unit configuration adjustments to comply with current and future industrial health and safety gas exposure regulations for workers in industrial environments.
Each SGC Plus comes with the following features:
Unmatched sensor reliability for H₂S and CO
Adjustable alarm set points
Real-time gas reading capability
0.1 ppm resolution for H2S sensor and display
Two-way IR communication for event downloads, bump tests, unit configuration and firmware updates
All Single Gas Clip models come standard with the bump check reminder feature.
When activated, if the detector has not been bump tested within the designated interval, the instrument will emit both a flash and show “buP” across the screen alerting the user, peer, or supervisor that the gas bump test is due.
In addition to the flash, the TEST Icon will continually display in the upper left hand corner.
This alert increases user accountability and allows for easier policy enforcement.
Note the flash feature can be disabled within the IR Link software, if desired.
Programmable unique 6 digit ID:
Considering the rugged environment these instruments are often exposed to and used in, identification via serial number, sticker, or marker can be unreliable.
With the unique ID feature, units can be identified with a simple push of a button.
Available using both limited alpha and full numeric characters, each unit can be assigned a unique ID utilizing, for example an employee ID number, last 4 digits of SSN, or a job code.
Unique ID’s will also appear on event log reports and bump test logs.
ID’s will be displayed on the detector screen in segments of 3 digits at a time (first 3 digits, then last 3 digits).
Adjustable alarm set points:
To adapt with changing health and safety gas exposure regulations for workers in industrial environments , the Single Gas Clip alarm set points can be easily adjusted via the IR Link software or through the SGC Dock.
Detectors can also be special ordered with custom alarm set points.
Please contact your Gas Clip Technologies representative for more information.
Use the Contact Us page or call 877-844-3101 to order units with custom Alarm Set Points or for bulk pricing
CO (Carbon Monoxide) Measuring range: 0-300 ppm, Low alarm limit: 35 ppm, High alarm limit: 200 ppm*
*All Units have Adjustable alarm set points regardless of the pre-programming. (requires the IR Link.)
SIZE: 3.2in H x 2.0in W x 1.1in D (81mm H x 50mm W x 28mm D)
WEIGHT: 2.7oz (76g)
TEMPERATURE: H2S: -40°C to +50°C / -40°F to +122°F, CO: -30°C to +50°C / -22°F to +122°F
HUMIDITY: 5% to 95% non-condensing relative humidity.
ALARMS: Visual, vibrating, audible (minimum 95dB)
TESTS: Full function self-test on activation and every 20 hours; continuous automatic battery tests.
OPERATIONAL LIFE: Two years with 4 minutes of alarm time per day.
RATINGS: Complies with EMC directives 89/336/EEC, IP66/67.
CERTIFICATIONS: Certification for use in Class I, Division 1, Groups A,B,C and D hazardous areas, IEC Certificate: IECEx KTL 10.0001x, ETL/cETL certification to UL 913 7th, CSA E60079-0 and CSAE60079-11 for use in Class I, II and III, Division 1, Groups A,B,C and D hazardous areas (Pending)
WARRANTY: 3 years from activation or 24 months of operational life whichever occurs first, 1 year shelf life
NOTES: Real-time gas display or time remaining; adjustable alarm set points and bump check reminder
