SECO Prism Pole Peg Adjusting Jig

SECO Prism Pole Peg Adjusting Jig


Brand: SECO

SKU: 5195-01


Authorized Dealer

Made in America

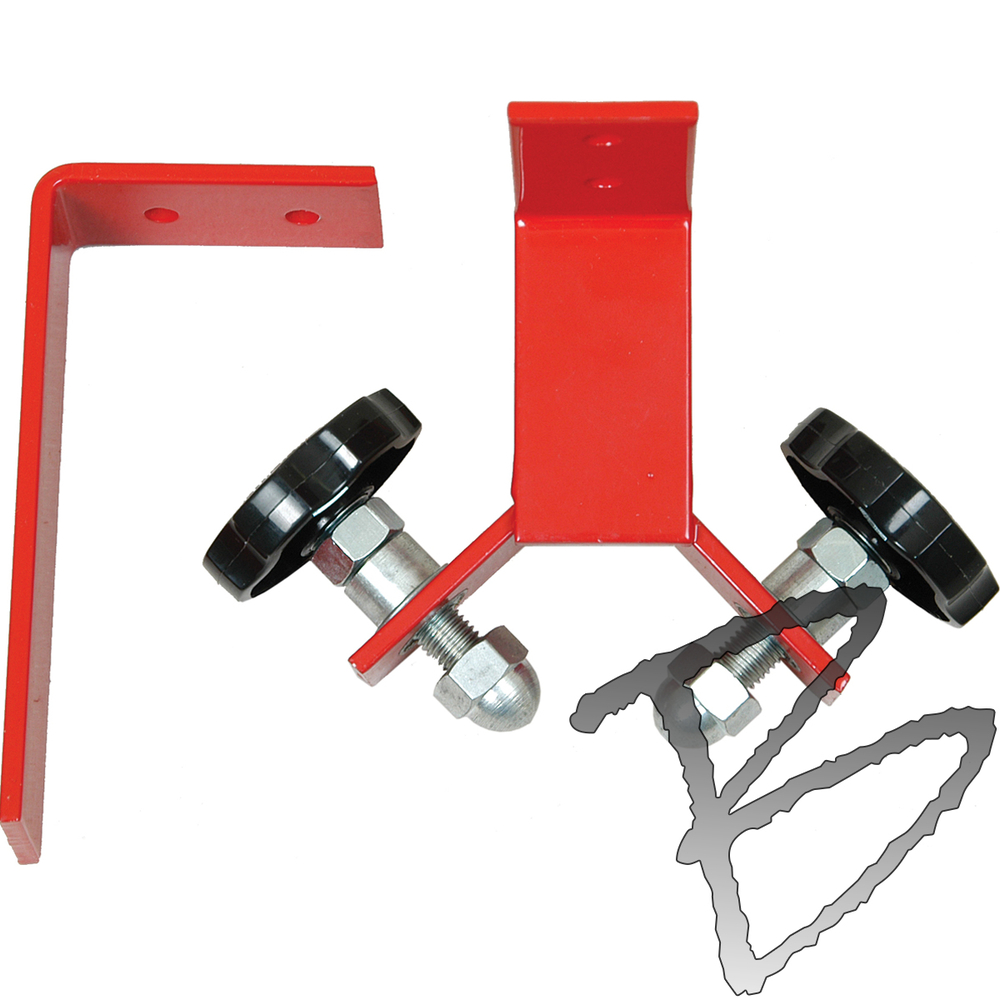

SECO Prism Pole Peg Adjusting Jig
  • Prism Pole Adjusting Jig
  • This convenient tool allows you to adjust and calibrate prism pole vials.
  • Weighs 1 lb (0.45 kg)
Calibrating your prism pole's vial is simple with the help of a SECO Pole Peg Adjusting Jig.
  • Step 1. Mount your SECO Pole Peg Adjusting Jig (#5195) to a wall in your office.
  • Step 2. Place prism pole tip in bottom shoe. Lean pole against C screw assembly. Now turn C screws in direction needed to center bubble in bulls eye.
  • Step 3. Now rotate or spin prism pole 180 degrees. Bubble will show amount of error.
  • Step 4. Adjust C screws until bubble moves halfway back towards center.
  • Step 5. Adjust vial adjustment screws until bubble is centered.
  • Repeat Steps 2 thru 5 at least twice, or until bubble remains centered in a full 360 degree rotation.
  • Tolerance: When bubble is centered then rotated 180 degrees, the bubble edge should not go outside the black ring.
