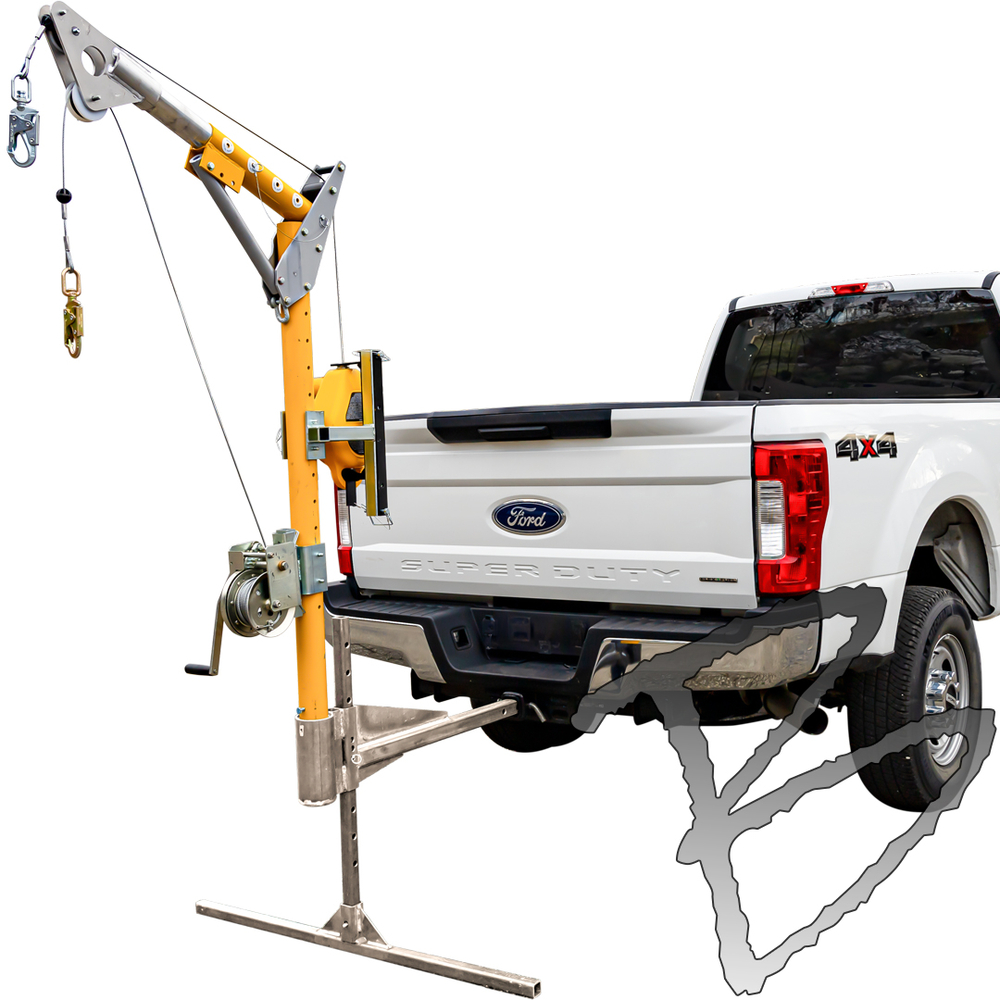

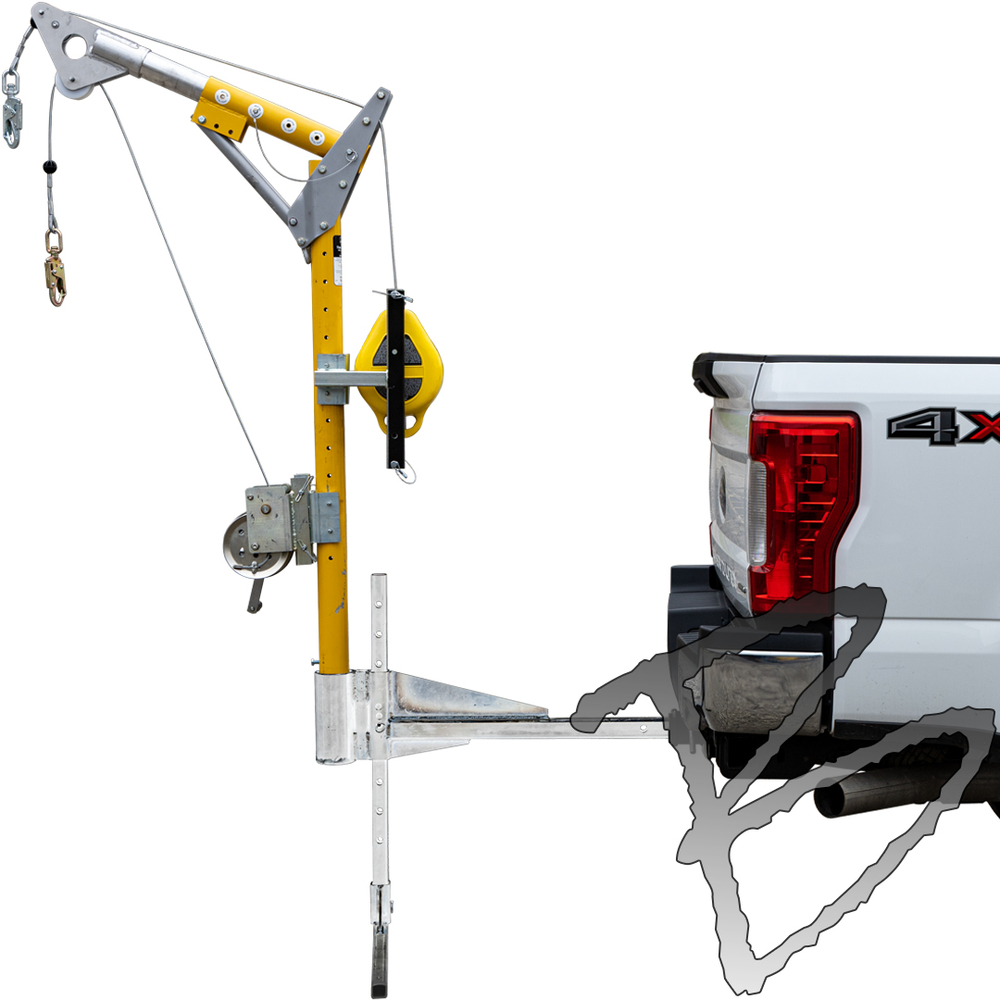

FC Portable Davit System PD10 Trailer Hitch Mount System - Complete Unit

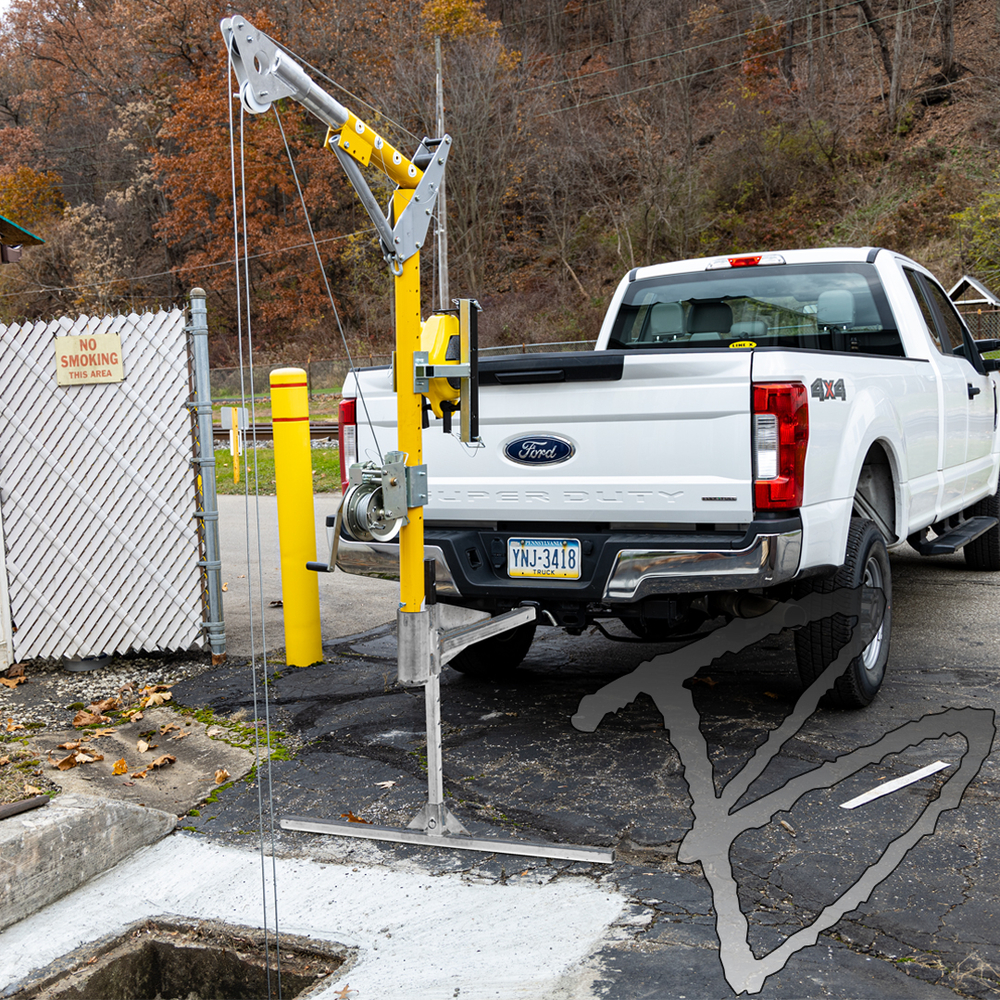

  • FrenchCreek’s PD10 Hitch Mount Davit System is designed to raise, lower, and suspend workers performing routine work duties and to facilitate rescues in confined space applications such as vaults, manholes, and pump stations.
  • The variable offset mast is equipped with FrenchCreek’s mechanical work-winch and rescue SRL
  • The lightweight aluminum alloy design and quick-connect/release pins, allow for easy setup, dismantle, and transport.
PD10 Hitch Mount Base Davit System
  • Installs into class 3 minimum vehicle trailer hitch, 2″ square receiver
  • Steel hitch bar features PVC mast sleeve and mast hand screw
  • Quick-connect foot bar, vertical post, and hitch bar
  • 6″-30″ height adjustment range provided in 1″ increments
  • PD10 Hitch Mount Complete Unit consists of Part numbers PD10, PD1, PD3, PD4, MW50G and R50G.
  • (All 6 Parts of the complete unit are automatically selected upon ordering.)
  • Lightweight powder-coated aluminum and stainless steel.
  • Allows 360° mast rotation
  • Davit meets OSHA 1926.502 and 1910.66 regulations
  • Item weight: 127 lbs.
  • Quickship Item
  • Free Ground Shipping
Features:
  • PD10 Complete System Includes: Part Number PD10, PD2, PD3, PD4, MW50G Winch, R50G rescue SRL
  • Trailer Hitch Mount
  • Rescue SRL: R50G 3-way rescue SRL
  • Lifeline Length & Material: 50' Galvanized Steel
  • Winch: MW50G Work Winch
  • Hardware Material: Powder coated aluminum, plated alloy Steel
  • Adjustability: 6″-30″ height adjustment range provided in 1″ increments
  • Installation: Installs into class 3 minimum vehicle trailer hitch, 2″ square receiver

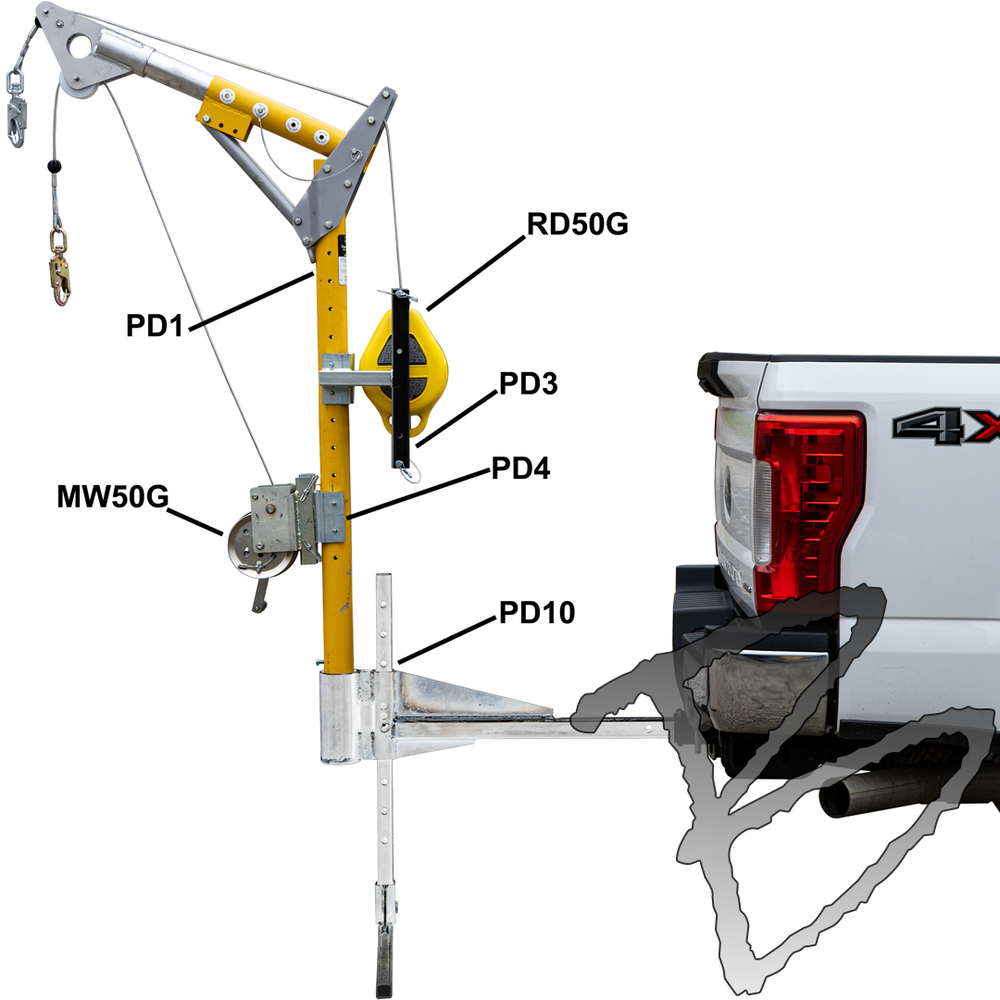

Davit System Component Details:

PD1 - Davit Mast Assembly
  • Telescoping adjustability from 12” to 30”
  • Primary and secondary pulleys for multiple devices
  • Attachment points for mechanical devices
  • Swiveling design allows easy hole exit & rescue
  • Lightweight powder coated aluminum & alloy steel
  • Item weight 32.75 lbs.

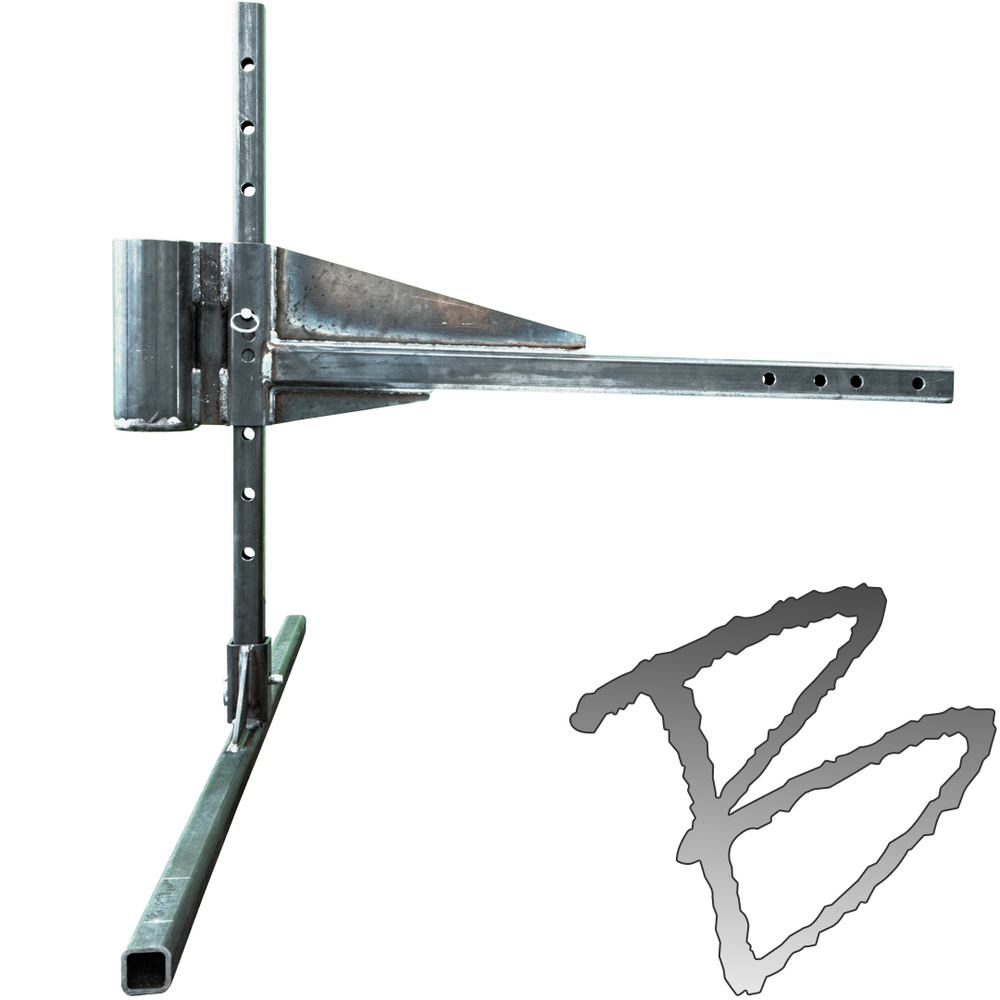

PD10 - Trailer Hitch Mount Base
  • Installs into class 3 minimum vehicle trailer hitch, 2” square receiver.
  • 6”-30” height adjustment range provided in 1” increments.
  • 9” tall plated carbon sleeve with insert
  • Item weight: 54 lbs.
PD3 - R50G Mounting Bracket
  • Used to attach R50G Rescue SRL to PD1 Davit Mast Assembly.
  • Attaches with locking pins.
  • Material: plated alloy steel.
  • Item weight: 7.2 lbs.
PD4 - MW50G Mounting Bracket
  • Used to attach MW50G Work Winch to PD1 Davit Mast Assembly.
  • Attaches with locking pins.
  • Material: plated alloy steel.
  • Item weight: 4.8 lbs.
MW50G - Material Work Winch
  • Requires PD4 mounting bracket for Davit System (included)
  • 50’ galvanized wire rope
  • Friction braking system
  • Stainless steel
  • Rugged, steel frame drum
  • Item weight: 35 lbs.
R50G - 3-Way Rescue SRL
  • Requires PD3 mounting bracket for Davit System (Included)
  • 50’ galvanized wire rope lifeline
  • Dual internal inertia braking system
  • Load indicating snaphook included
  • Stainless steel
  • Item weight: 25 lbs.

PD10 Complete Davit Base Guide PD10 Trailer Hitch Mount Sleeve Davit Base Tech Sheet

PD10 Davit System Trailer Hitch Mount Base Specs:
  • Size: 9″ deep sleeve insert
  • Standard Sizes: 48″ x 43.5″ x 37″
  • Weight Capacity: 450lbs (205kg) at minimum 2:1 safety factor
  • Item Weight: 53.8 Lbs.
  • Hardware Material: Zinc Plated Carbon Steel, PVC insert
  • Standards: OSHA 1926.502 and 1910.66 when used in a complete system
PD10 Davit System Trailer Hitch Mount Base Complete Unit Specs:
  • Weight Capacity: 130-310 lbs. ANSI
  • Capacity: 1 entrant only, 310 lb.max
  • Item weight: 158.75 lbs.
  • Hardware Material:  Powder Coated Aluminum, Plated Alloy Steel
  • Lifeline: Galvanized steel wire rope
  • Components: PD10, PD1, PD3, PD4, MW50G and R50G.
  • Standards: OSHA 1926.502, ANSI 1910.66
