FC Portable Davit System PD9 Barrel / Trench Mount Base - Complete Unit

FC Portable Davit System PD9 Barrel / Trench Mount Base - Complete Unit

$5,861.82

Shipping: Free

Brand: FrenchCreek Fall Safety

SKU: PD9 Complete

Qty:


Authorized Dealer

Made in America

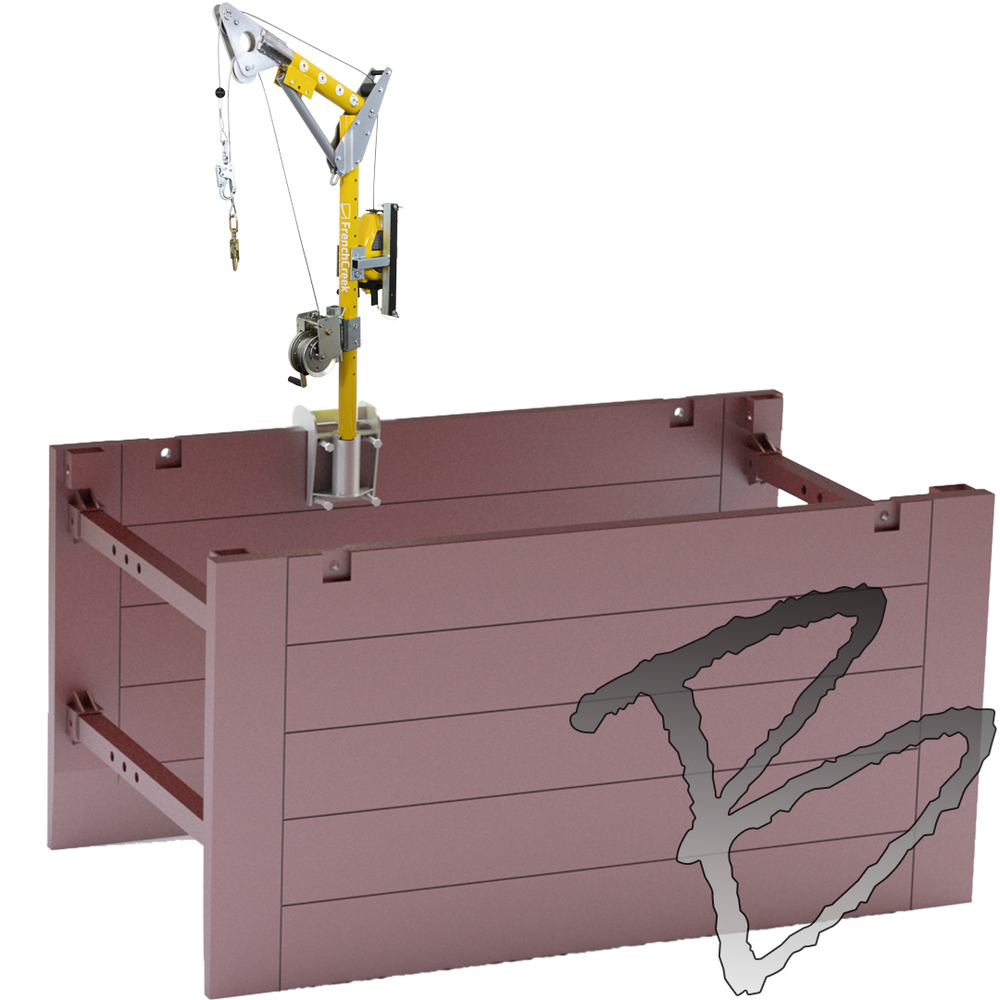

FC Portable Davit System PD9 Barrel / Trench Mount Base - Complete Unit
  • FrenchCreek’s PD9 Barrell / Trench Box Base Davit System is designed to raise, lower, and suspend workers performing routine work duties and to facilitate rescues in confined space applications such as vaults, manholes, and pump stations.
  • The variable offset mast is equipped with FrenchCreek’s mechanical work-winch and rescue SRL
  • The lightweight aluminum alloy design and quick-connect/release pins, allow for easy setup, dismantle, and transport.
PD9 Barrell / Trench Box Base Davit System
  • The barrel/trench box mount is designed for bolt-on installation to existing edges, walls, and other properly rated structures.
  • For properly rated structures 1/2″ to 3-1/2″ thick
  • 4 pcs. 3/4″ x 5″ hex head set screws for securing to structure.
  • Allows for 180° mast rotation
  • 9″ PVC insert

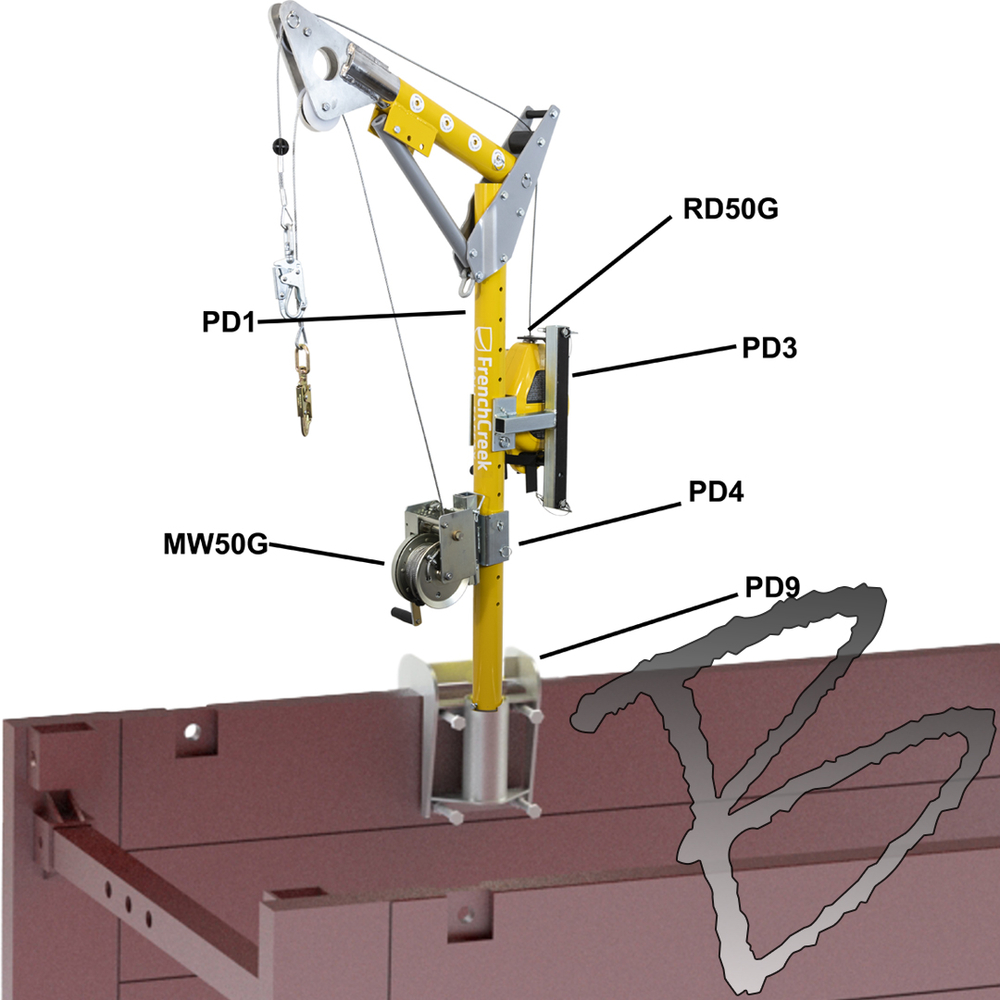

  • PD9 Barrell / Trench Box Base Complete Unit consists of Part numbers PD9, PD1, PD3, PD4, MW50G and R50G.
  • (All 6 Parts of the complete unit are automatically selected upon ordering.)
  • Lightweight powder-coated aluminum and stainless steel.
  • Davit meets OSHA 1926.502 and 1910.66 regulations
  • Item weight: 136.75
  • Quickship Item
  • Free Ground Shipping
Features:
  • PD9 Complete System Includes: Part Number PD9, PD2, PD3, PD4, MW50G Winch, R50G rescue SRL
  • PD9 Trench Box Mount – 1/2″ to 3-1/2″ thick
  • Rescue SRL: R50G 3-way rescue SRL
  • Lifeline Length & Material: 50' Galvanized Steel
  • Winch: MW50G Work Winch
  • Hardware Material: Powder Coated Aluminum, Plated Alloy Steel
  • Adjustability: 1/2″ to 3-1/2″ thick properly rated structures
  • Installation: Temporary

Davit System Component Details:

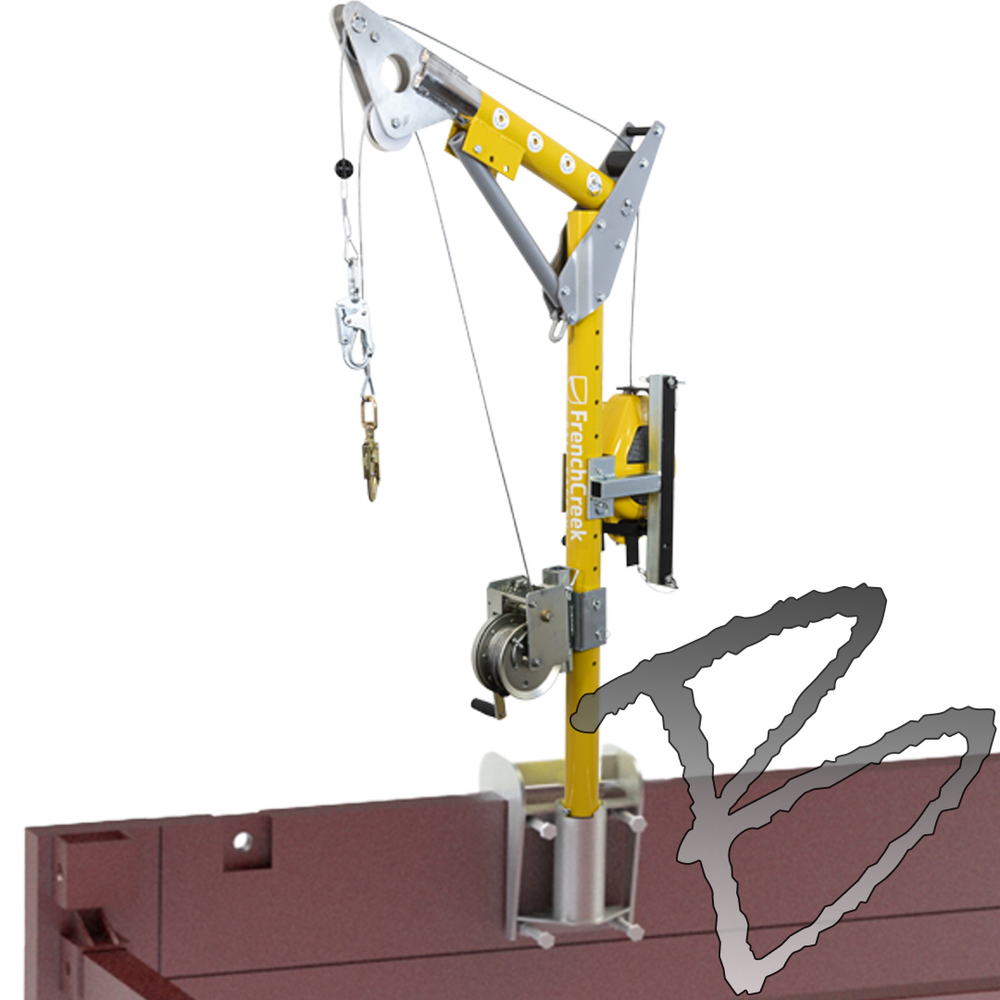

PD1 - Davit Mast Assembly
  • Telescoping adjustability from 12” to 30”
  • Primary and secondary pulleys for multiple devices
  • Attachment points for mechanical devices
  • Swiveling design allows easy hole exit & rescue
  • Lightweight powder coated aluminum & alloy steel
  • Item weight 32.75 lbs.

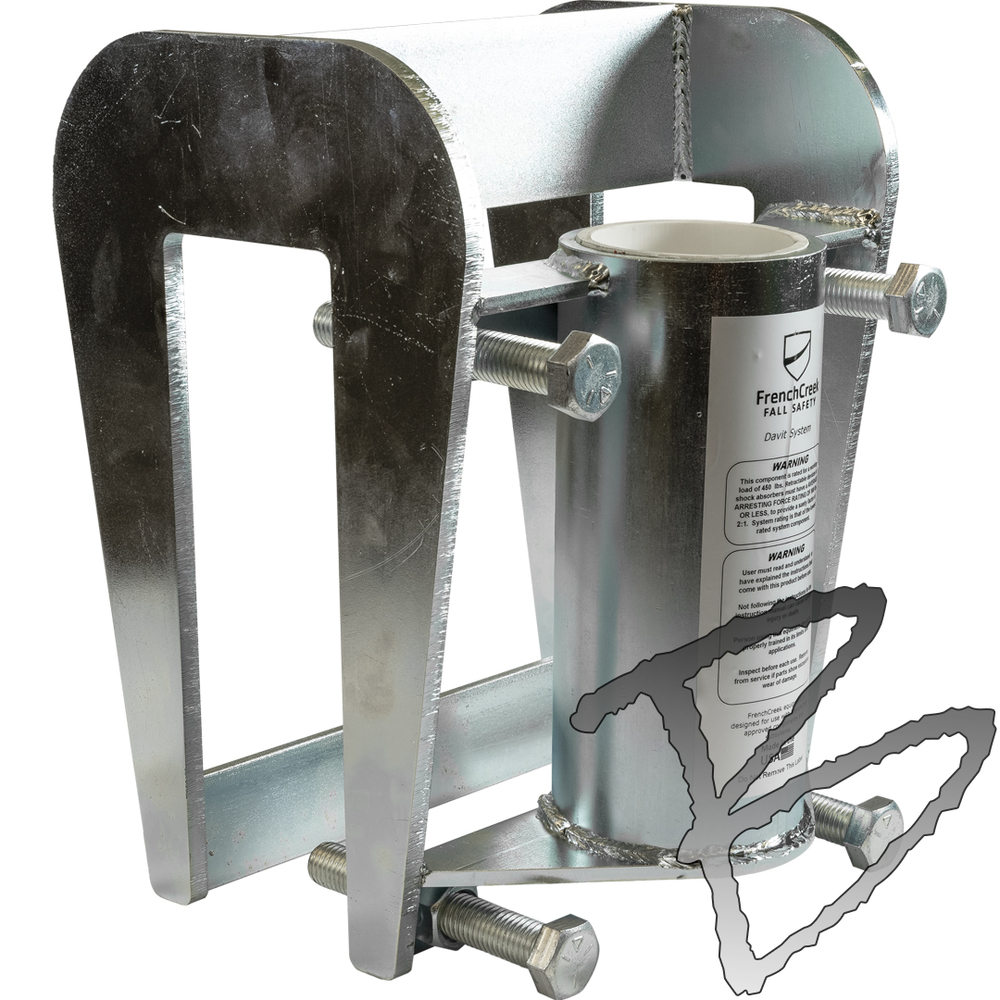

PD9 - Barrell / Trench Box Base
  • PD9 Barrel Mount Davit Base Attaches to properly rated structures 1/2” to 3-1/2” thick.
  • Attaches to properly rated structures
  • 1/2” to 3-1/2” thick.
  • 4pcs.
  • 3/4” x 5” hex head set screws for securing to structure
  • Zinc plated welded steel construction with PVC mast sleeve insert
  • 180° mast rotation.
  • 9” tall sleeve PVC insert.
  • Item weight: 32 Lbs
PD3 - R50G Mounting Bracket
  • Used to attach R50G Rescue SRL to PD1 Davit Mast Assembly.
  • Attaches with locking pins.
  • Material: plated alloy steel.
  • Item weight: 7.2 lbs.
PD4 - MW50G Mounting Bracket
  • Used to attach MW50G Work Winch to PD1 Davit Mast Assembly.
  • Attaches with locking pins.
  • Material: plated alloy steel.
  • Item weight: 4.8 lbs.
MW50G - Material Work Winch
  • Requires PD4 mounting bracket for Davit System (included)
  • 50’ galvanized wire rope
  • Friction braking system
  • Stainless steel
  • Rugged, steel frame drum
  • Item weight: 35 lbs.
R50G - 3-Way Rescue SRL
  • Requires PD3 mounting bracket for Davit System (Included)
  • 50’ galvanized wire rope lifeline
  • Dual internal inertia braking system
  • Load indicating snaphook included
  • Stainless steel
  • Item weight: 25 lbs.

PD9 Complete Davit Base Guide PD9 Barrell / Trench Box Davit Base Tech Sheet

PD9 Davit System Barrell / Trench Box Base Specs:
  • Size: 10.5″ x 10.25″ x 14″
  • Weight Capacity: 130-310lbs lbs. ANSI
  • Capacity: 1 entrant only, 310 lb. max
  • Base Item Weight: 32 Lbs.
  • Hardware Material: Powder Coated Aluminum, Plated Alloy Steel
  • Sleeve Insert: PVC Pipe
  • Allows for 180° mast rotation of PD1 Davit Mast Assembly
  • Standards: OSHA 1926.502 and 1910.66 when used in a complete system
PD9 Davit System Barrell / Trench Box Base Complete Unit Specs:
  • Weight Capacity: 130-310 lbs. ANSI
  • Capacity: 1 entrant only, 310 lb.max
  • Item weight: 136.75 lbs. complete system
  • Hardware Material:  Powder coated aluminum, Plated alloy steel
  • Lifeline: Galvanized steel wire rope
  • Components: PD9, PD1, PD3, PD4, MW50G and R50G.
  • Standards: OSHA 1926.502, ANSI 1910.66
