FC Portable Davit System PD8 Wall Mount Sleeve Base - Complete Unit

FC Portable Davit System PD8 Wall Mount Sleeve Base - Complete Unit

$5,152.48

Shipping: Free

Brand: FrenchCreek Fall Safety

SKU: PD8 Complete

Qty:


Authorized Dealer

Made in America

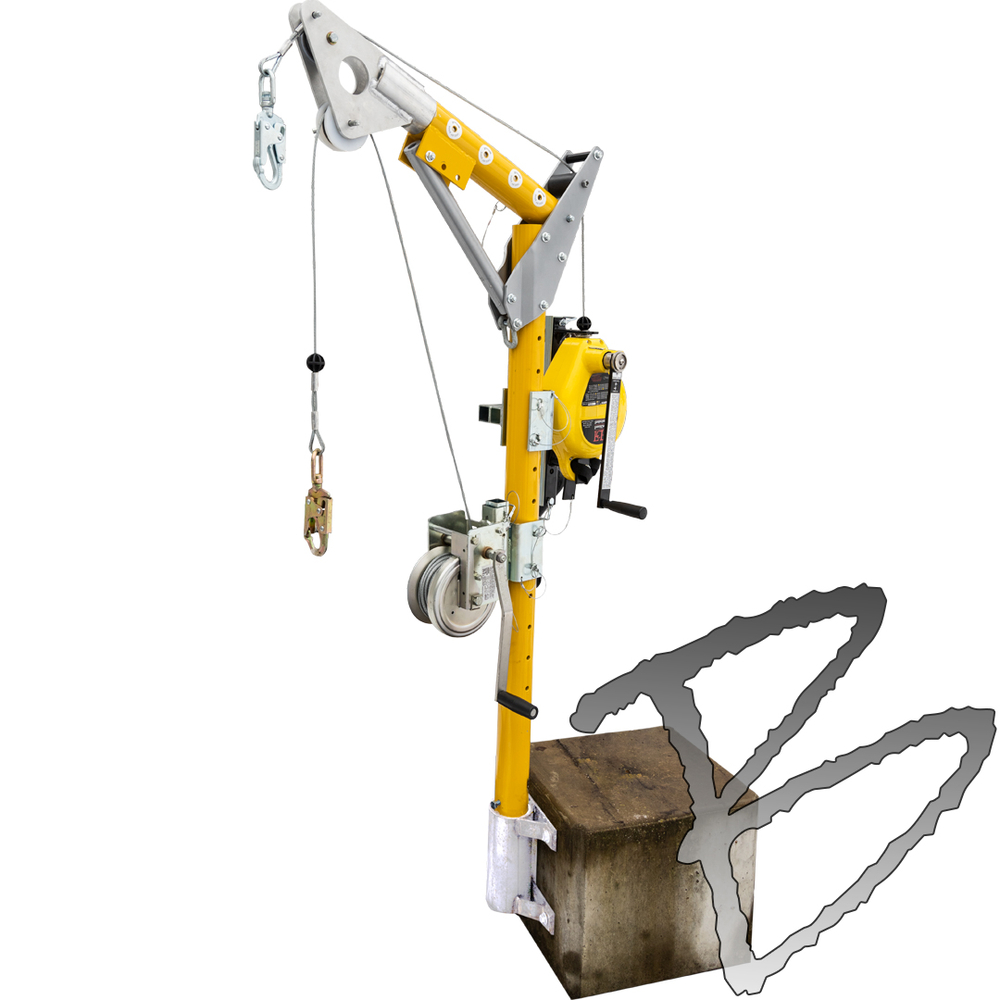

FC Portable Davit System PD8 Wall Mount Sleeve Base - Complete Unit
  • FrenchCreek’s PD8 Wall Mount Sleeve Davit System is designed to raise, lower, and suspend workers performing routine work duties and to facilitate rescues in confined space applications such as vaults, manholes, and pump stations.
  • The variable offset mast is equipped with FrenchCreek’s mechanical work-winch and rescue SRL
  • The lightweight aluminum alloy design and quick-connect/release pins, allow for easy setup, dismantle, and transport.
PD8 Wall Mount Sleeve Base Davit System
  • Bolt-on design for existing steel & concrete structures
  • Ideally suited for recurrent access locations
  • 9″ deep sleeve with PVC insert
  • User-supplied fasteners required for installation
  • 360° mast rotation
  • PD8 Wall Mount Sleeve Complete Unit consists of Part numbers PD8, PD1, PD3, PD4, MW50G and R50G.
  • (All 6 Parts of the complete unit are automatically selected upon ordering.)
  • Lightweight powder-coated aluminum and stainless steel.
  • Allows 360° mast rotation
  • Davit meets OSHA 1926.502 and 1910.66 regulations
  • Item weight: 127 lbs.
  • Quickship Item
  • Free Ground Shipping
Features:
  • PD8 Complete System Includes: Part Number PD8, PD2, PD3, PD4, MW50G Winch, R50G rescue SRL
  • Ideally suited for recurrent access locations
  • Rescue SRL: R50G 3-way rescue SRL
  • Lifeline Length & Material: 50' Galvanized Steel
  • Winch: MW50G Work Winch
  • Hardware Material: Powder coated aluminum, plated
  • Allows 360° mast rotation
  • Installation: Bolt on design

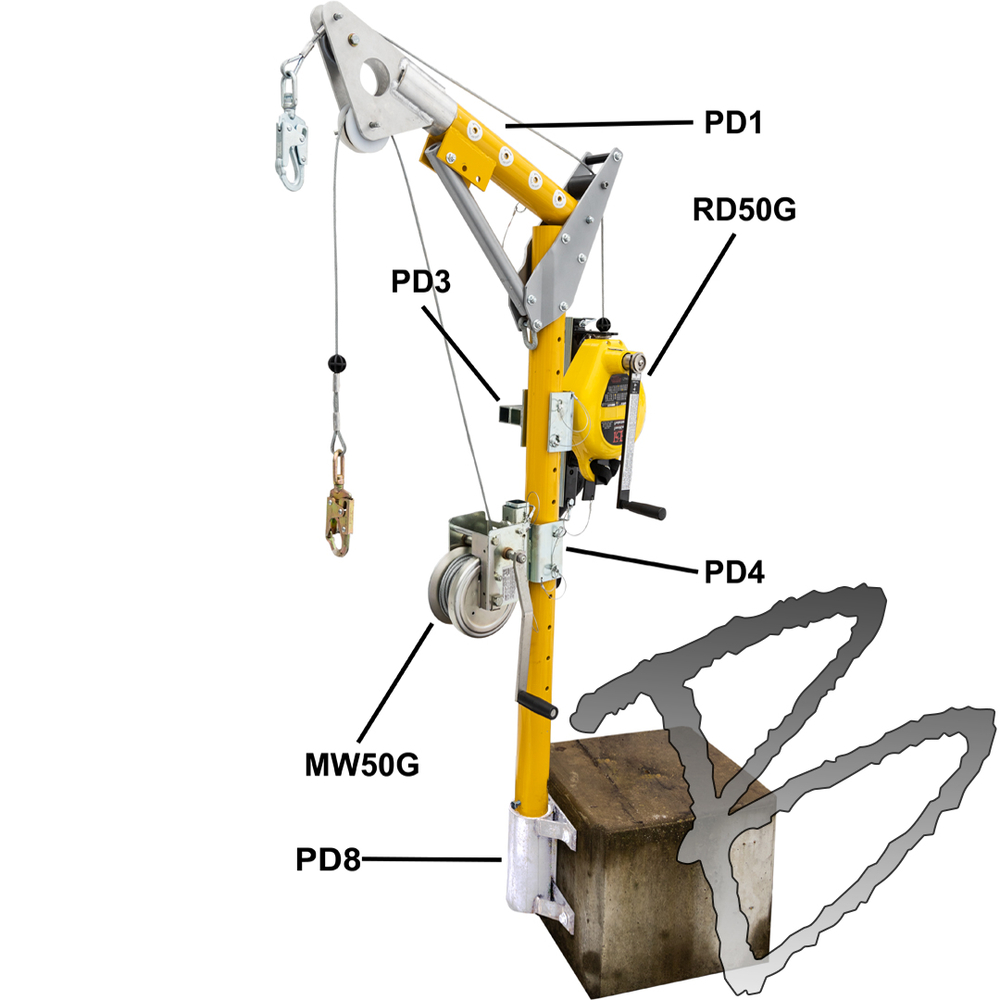

Davit System Component Details:

PD1 - Davit Mast Assembly
  • Telescoping adjustability from 12” to 30”
  • Primary and secondary pulleys for multiple devices
  • Attachment points for mechanical devices
  • Swiveling design allows easy hole exit & rescue
  • Lightweight powder coated aluminum & alloy steel
  • Item weight 32.75 lbs.

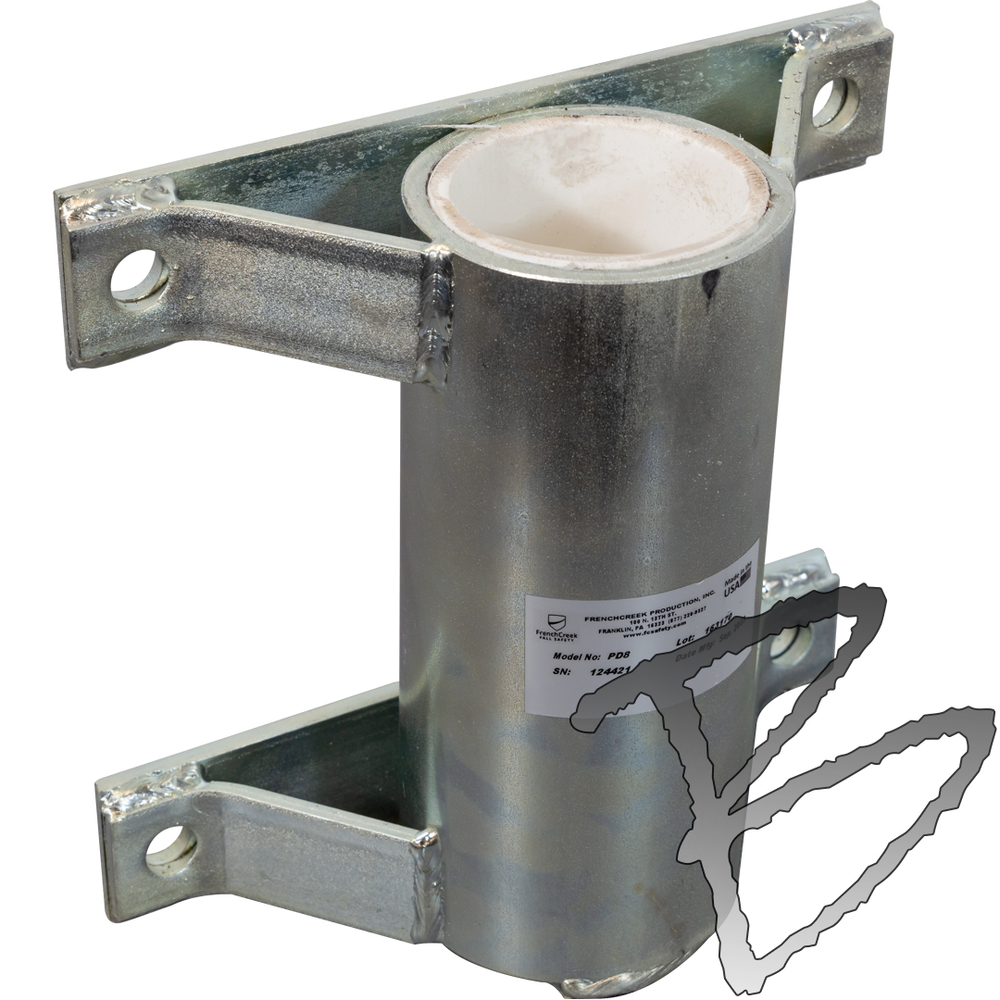

PD8 - Wall Mount Sleeve Base
  • Bolt on design for existing steel and concrete vertical installation.
  • Allows for 360° rotation of PD1 Davit Mast Assembly.
  • 9” tall sleeve with PVC insert
  • Item weight: 13 lbs.
PD3 - R50G Mounting Bracket
  • Used to attach R50G Rescue SRL to PD1 Davit Mast Assembly.
  • Attaches with locking pins.
  • Material: plated alloy steel.
  • Item weight: 7.2 lbs.
PD4 - MW50G Mounting Bracket
  • Used to attach MW50G Work Winch to PD1 Davit Mast Assembly.
  • Attaches with locking pins.
  • Material: plated alloy steel.
  • Item weight: 4.8 lbs.
MW50G - Material Work Winch
  • Requires PD4 mounting bracket for Davit System (included)
  • 50’ galvanized wire rope
  • Friction braking system
  • Stainless steel
  • Rugged, steel frame drum
  • Item weight: 35 lbs.
R50G - 3-Way Rescue SRL
  • Requires PD3 mounting bracket for Davit System (Included)
  • 50’ galvanized wire rope lifeline
  • Dual internal inertia braking system
  • Load indicating snaphook included
  • Stainless steel
  • Item weight: 25 lbs.

PD8 Complete Davit Base Guide PD8 Wall Mount Sleeve Davit Base Tech Sheet

PD8 Davit System Wall Mount Sleeve Base Specs:
  • Size: 9″ deep sleeve insert
  • Standard Sizes: 10″ x 4.25″ x 9.5″
  • Weight Capacity: 450lbs (205kg) at minimum 2:1 safety factor
  • Item Weight: 32 Lbs.
  • Material: Zinc Plated Carbon Steel, PVC insert
  • Allows for 360° rotation of PD1 Davit Mast Assembly
  • Standards: OSHA 1926.502 and 1910.66 when used in a complete system
PD8 Davit System Wall Mount Sleeve Base Complete Unit Specs:
  • Weight Capacity: 130-310 lbs. ANSI
  • Capacity: 1 entrant only, 310 lb.max
  • Item weight: 117.75 lbs.
  • Hardware Material:  Powder coated aluminum, plated alloy steel
  • Lifeline: Galvanized steel wire rope
  • Components: PD8, PD1, PD3, PD4, MW50G and R50G.
  • Standards: OSHA 1926.502, ANSI 1910.66
