Laser Technology TruPulse 200X

Laser Technology TruPulse 200X


Brand: Laser Technology, Inc.

SKU: 7006875


Authorized Dealer

Laser Technology TruPulse 200X
  • It's almost an insult to even call these powerful measurement tools a "Laser Rangefinder" because their capabilities go far beyond just measuring a range.
  • You can instantly measure slope distance, inclination and calculate horizontal and vertical distance - all with a single push of a button.
  • To complete the TruPulse product line, the new TruPulse 200X is very accurate, ruggedized waterproof unit ideal product for any type of environment.
  • The new bright red LED display is perfect for those low light measurement conditions.
  • Also new to the product line is adding a Bluetooth module that is compatible with iOS devices as well as Android & Windows Mobile. (ONLY iOS wireless Compatible TruPulse)
  • Our Missing Line Routine is incorporated into all TruPulse models.
  • The TruPulse 200 Series Missing Line routine is a 2D measurement.
  • Taking 2 shots to remote targets calculates the distance & inclination values between those 2 remote targets.
  • All TruPulse laser rangefinders have onboard solutions that will calculate a height or clearance value of any target, under the most challenging conditions and also have builtin Targeting Modes for Closest, Farthest, Continuous and Filter/Reflector.
  • Use the 3-shot Height routine for upright targets like phone poles or buildings, even when the top or base may be obscured.
  • The Vertical Distance and Missing Line modes are perfect for leaning objects such as most trees you encounter; and for clearance values of a wire or bridge over a roadway.
  • For downloading data into any compatible device, you can use the standard RS232 serial port or Bluetooth® wireless communication that is in most models.
  • Each shot taken automatically downloads a full data string that comprises of horizontal, slope and vertical distance, and the degree of inclination values.
  • These measurements can be used to remotely position a target when integrating with GPS or add a height value as an attribute in GIS.
  • For more stability, use the 1/4"-20 thread for mounting the TruPulse laser rangefinder on a staff or monopod.
  • Having superior optics and in-scope data display, you'll always be confident you are capturing the right measurement to the correct target.
  • If your measurement were ever in question, you can toggle on the Closest or Farthest Mode to ensure the laser sensor is ignoring unwanted obstructions that are either in front or behind your desired target.

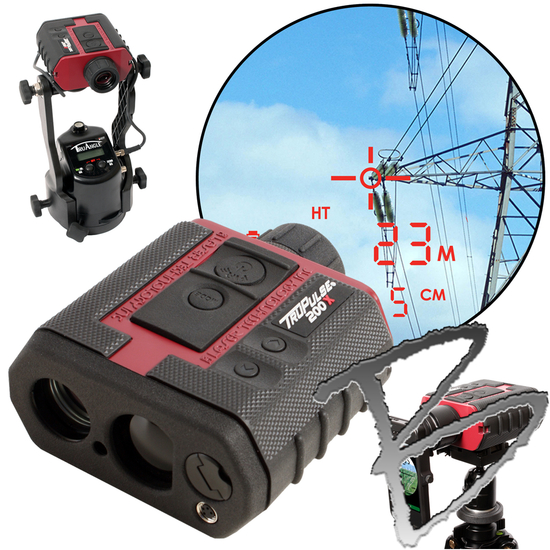

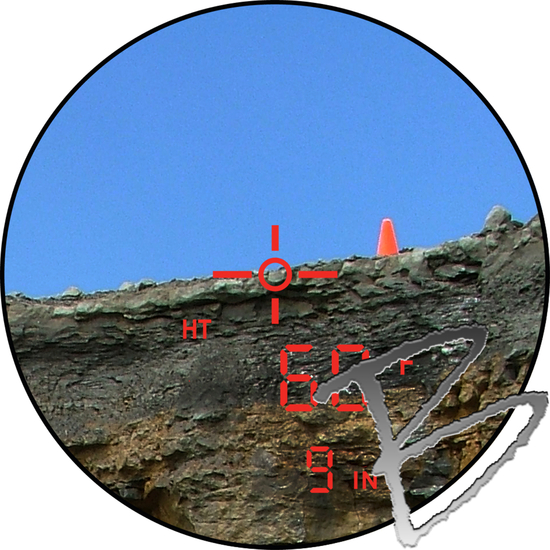

  • TruPulse Laser Rangefinder displaying data in scope
  • What else can we say about the TruPulse laser rangefinder? What about its compact size and low price point?
  • When you consider this size being small enough to fit in your vest pocket and how customers have claimed it paid for itself within their first project, there is no question that the TruPulse laser rangefinder is one of the best measurement tools in the world.
How the TruPulse Laser Rangefinder Measures Up:
  • Measures distances, height
  • Fits inside a vest pocket and is very economical.
  • Displays all measurements and menus right in the scope.
  • Integrates with GPS and popular GIS software**.

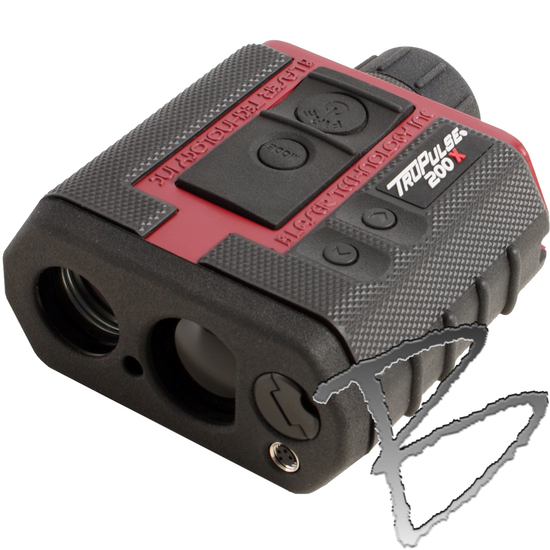

TruPulse 200X Laser Rangefinder
  • The TruPulse 200X model measures distances and heights and is available in LTI red.
  • It comes standard with a serial port, offers in-scope data display with 7x power optics and runs on 1 CRV3 battery.
Key Features of the TruPulse 200X include:
  • Achieves the highest distance and inclination accuracy
  • Adjusts to any lighting conditions using the in-scope LED display
  • Withstands harsh conditions with rugged, waterproof housing
  • Measures Slope Distance (SD) + Inclination (INC) in Degrees or Percent
  • Calculates Horizontal Distance (HD) + Vertical Distance (VD) + Height (HT) + 2D Missing Line (ML)
  • Distinguishes desired target from surrounding obstructions with Closest + Farthest + Continuous + Filter modes
  • Mounts to tripods and has quality optics that enhance your field of view

All TruPulse Series Specifications

TruPulse 200X Manual

See all Laser Rangefinders
