Spectra Precision Laser Level LL300N

Spectra Precision Laser Level LL300N


Brand: Spectra precision



Authorized Dealer

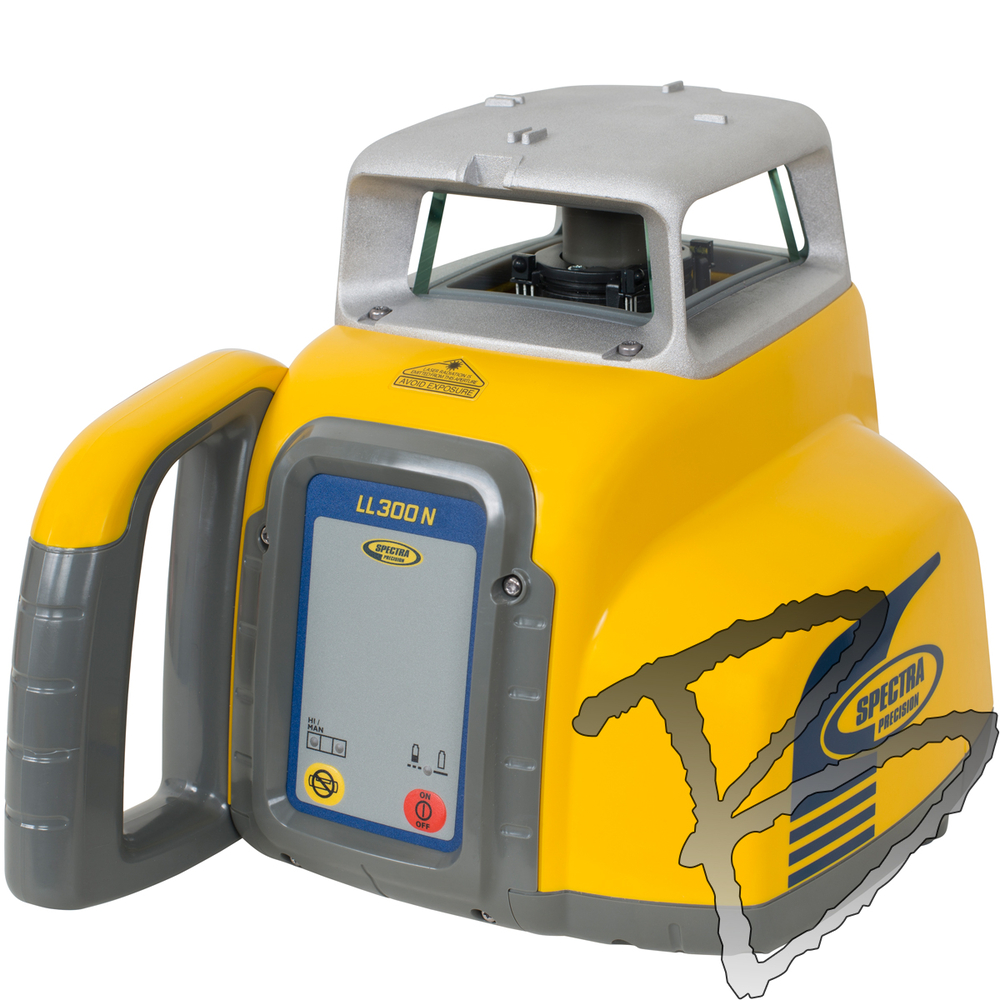

Spectra Precision Laser Level LL300N
  • Medium-range, highly accurate leveling solution
  • The Spectra Precision® Laser LL300N features a rugged design with "hard hat" rotor protection that provides superior drop and weather protection.
  • Built to withstand severe drops of up to 3ft (1 m) directly onto concrete, or up to 5ft (1.5 m) when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop or tipover and lower repair costs over the life of the product.
  • The LL300N's fully automatic self-leveling capability provides fast, accurate setup.
  • Rechargeable Ni-Cad battery pack or alkaline batteries keeps the unit working with no downtime due to power loss.
  • Single cross-axis manual slope mode with cross-axis self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-slope.
Features & Benefits:
  • Increases productivity with fast setups, fewer mechanical parts, and automatic self-leveling
  • Maintains performance even in rainy, dusty and other harsh job site and weather conditions
  • Durable design reduces downtime due to drops and tripod tipovers
  • Minimizes power costs, increases reliability with choice of rechargeable or alkaline batteries
  • Increases flexibility with remote control slope option
  • Comes with choice of HR320, or HL450 receivers so you can choose the best option to suit your application
  • Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized jobs
  • Basic slope work such as driveways and ramps
  • Excavations, digging footings and septic tanks
5 -Year “No Cost” Warranty Policy
  • The LL300 has a "5-Year – No Cost”- warranty that covers defects due to material and workmanship.
  • Spectra Precision Laser products with a “5-Year- No Cost” warranty that have failed will be repaired AT NO CHARGE for five years from the date of purchase.
LL300N Laser Package Options Include:
  • LL300N Laser Level Transmitter
  • Small Hard Case or System Case
  • HR320* Receiver w/Rod Clamp or HL450** Laserometer w/Rod Clamp
  • 4D Alkaline Batteries or NIMH Rechargeable Battery
  • No Rod, or GR151 10ths rod, or GR152 Inch Rod, or GR153 Metric Rod
  • No Tripod, or Q104025 Tripod
LL300 Laser Package Option Details:
  • Item# LL300N-8: LL300N Laser, HR320 Receiver*, 4D Alkaline, Small Hard Case, No Rod, No Tripod
  • Item# LL300N: LL300N Laser, HL450 Laserometer**, 4D Alkaline, Small Hard Case, No Rod, No Tripod
  • Item# LL300N-4: LL300N Laser, HL450 Laserometer**, NIMH Rechargeable, Small Hard Case, No Rod, No Tripod
  • Item# LL300N-1: LL300N Laser, HL450 Laserometer**, 4D Alkaline, System Case, GR151 10ths Rod, Q104025 Tripod
  • Item# LL300N-2: LL300N Laser, HL450 Laserometer**, 4D Alkaline, System Case, GR152 Inches Rod, Q104025 Tripod
  • Item# LL300N-3: LL300N Laser, HL450 Laserometer**, 4D Alkaline, System Case, GR153 Metric Rod, Q104025 Tripod

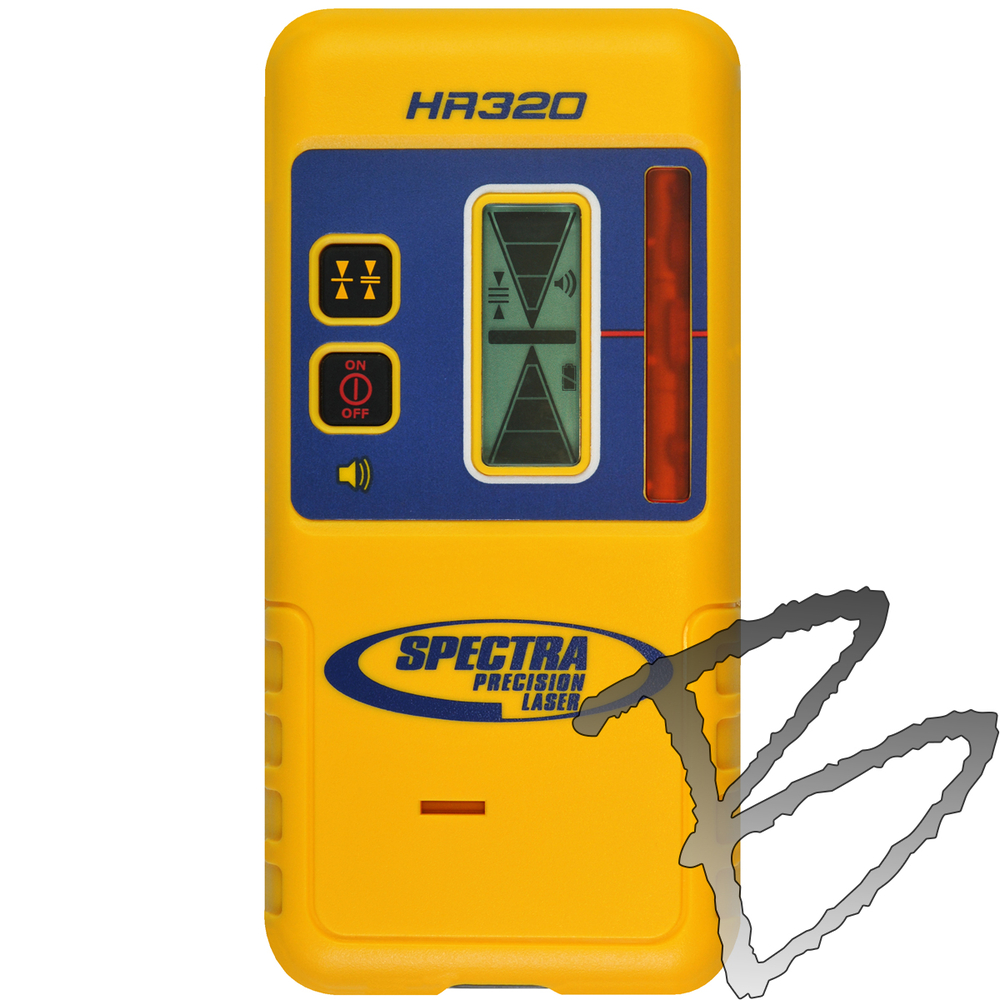

*HR320 Receiver Details:
  • The Spectra Precision® Laser HR320 is a durable laser receiver for exterior leveling applications.
  • LCD's on the front and back display a 5 segment grade arrow that indicates grade position.
  • A loud beeper is designed to be heard on noisy job sites.
  • Fine and medium accuracies are selectable to meet various applications and conditions.
*HR320 Features & Benefits:
  • Large easy-to-read LCD on front and rear makes it ideal for exterior applications
  • Snap in rod clamp allows fast switching from rod-mounted to handheld applications
  • Rugged waterproof housings withstands 5ft (1.5 m) drops and protect the unit from moisture and dust
  • Two on-grade sensitivities (fine and medium) let you get to grade faster in a variety of applications
  • 100 db loud speaker can be easily heard on noisy job sites
  • Applications: Checking and setting elevations for smaller jobsites, Leveling forms and footers, Estimating cuts and fills,

    Ideal for decks, terraces, pools, and septic systems

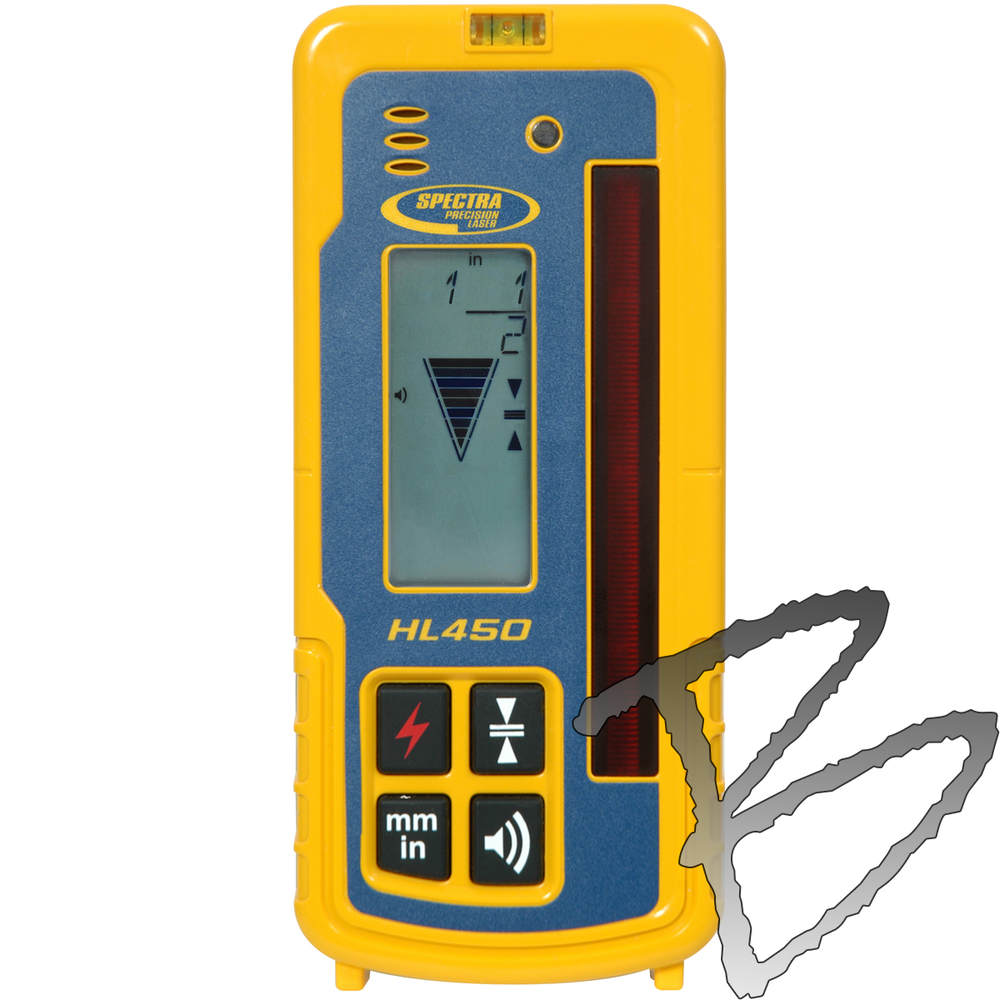

**HL450 Receiver Details:
  • Highly versatile receiver for basic and advanced leveling and aligning applications
  • The Spectra Precision® HL450 Laserometer is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating transmitter.
  • The HL450 features a digital readout of elevation that provides a numeric display of ± 40 mm or ±1.5 inches.
  • The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade.
  • Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity.
  • The HL450 has a 102 mm (4 inch) reception height, double the typical industry standard, which allows quick acquisition of the laser beam.
  • Also included is a patented anti-strobe sensor that prevents construction lights from setting off the receiver and makes it easier to identify the laser beam signals.
  • The Laserometer is designed to survive the tough construction site conditions.
  • It is totally waterproof and can withstand a drop up to 1.5 meters (5 feet) onto concrete.
**HL450 Features and Benefits:
  • Digital Readout of Elevation allows faster readings by displaying the exact numerical distance from grade, eliminating the need to move the receiver to get to "on-grade".
  • Anti-Strobe Sensor stops construction strobe lights from setting off the receiver and eliminates phantom strikes for easier identification of true laser beam signals.
  • Large reception height allows faster readings by acquiring the beam quickly, and makes it easier to stay in the beam.
  • Durable in tough environments provides less downtime due to damage or service requirements after accidental drops.
  • Applications: Setting and checking jobsite elevation and depth for: Cut and fills, General grading, Foundations, forms, and footings.  Excavations.

LL300N Laser Level Data Sheet
