Spectra Precision Laser Level LL500

Spectra Precision Laser Level LL500

$1,600.00 Sale $1,280.00

Brand: Spectra precision

SKU: LL500

Qty:


Authorized Dealer

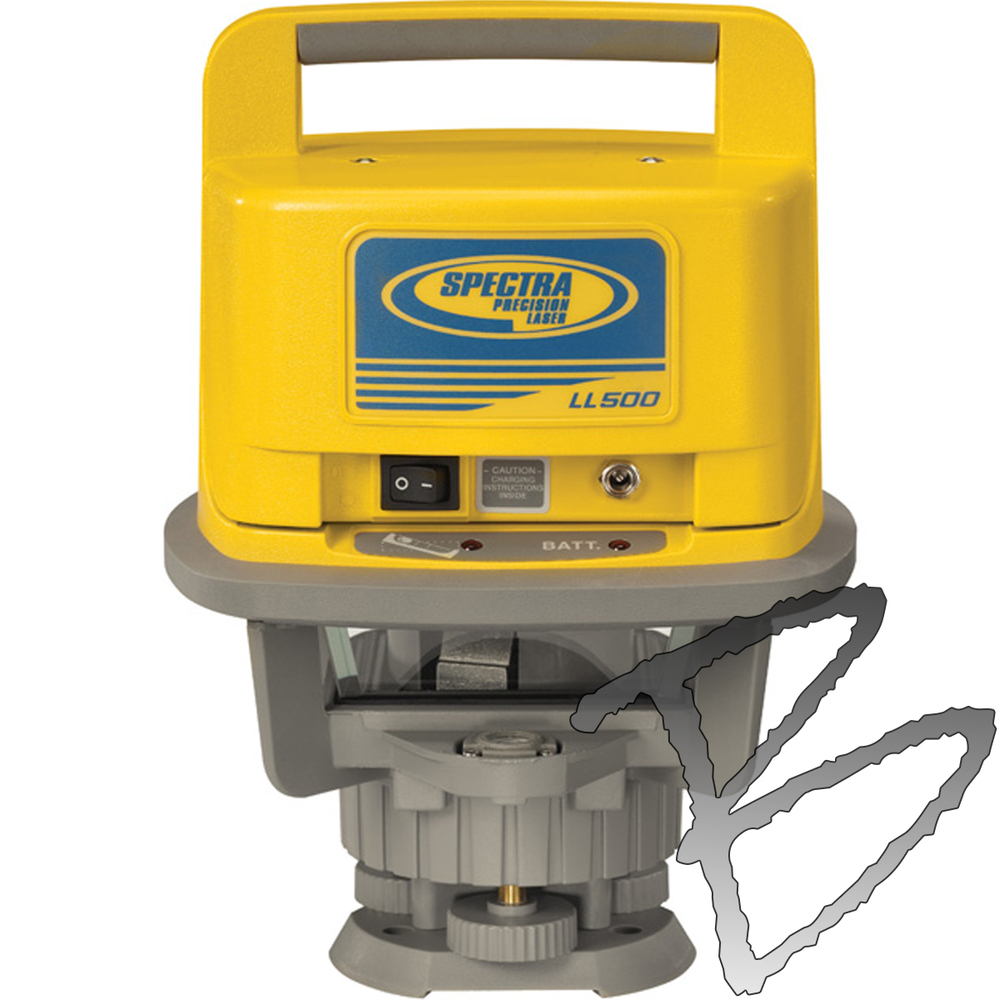

Spectra Precision Laser Level LL500
  • The time-tested workhorse.
  • The Laser level LL500 is a one-person leveling system designed for longer range measurements across your entire site.
  • Accurate, stable and reliable, the LL500 features a 1,650 ft (500 m) working diameter which increases productivity by reducing the need for multiple setups on a large job site.
  • Rely on the LL500
  • Every Super-Power has a Side Kick - Comes with HL700* receiver
  • Call 877-844-3101 to order, if the option you need is not Listed online
Features & Benefits:
  • Temperature Compensation - provides highly stable, repeatable accuracy even under large temperature changes
  • One Person Elevation Control - with 1,650 ft (500 m) diameter range increases productivity
  • Maintains Performance - Maintains performance, even in harsh job site conditions
  • Proven Workhorse - Trusted Over 40 years
  • Self-leveling - with built-in shut off for increased accuracy over the entire work area and reduced errors
  • Accuracy and Range - Ideally suited for high-accuracy job sites, including concrete work
LL500 Laser Specifications:
  • Self-Leveling Range: ± 11 arc minutes
  • Compensation Type: Wire Hung, Air Damped
  • Accuracy: 1.5 mm at 30 m (1/16 in at 100 ft)
  • Laser Type: 670nm visible, Class 2
  • Battery Life 20°C (68°F): 4 D-Cell Alkaline - 175 hrs, NiMH - 100 hrs
  • Operating Diameter: 500 m (1,600 ft)
  • Operating Temperature: -20°C to 50°C (-4°F to 122°F)
  • Weight: 3.6 kg (8 lbs)
  • Tripod Mount: 5/8 in x 11
  • Warranty: 5 Years
Applications:
  • Checking/setting elevations, concrete forms, footings, and foundations for medium-to-large-sized jobs
  • Excavating, digging footings, and septic tanks with CR600 receiver
  • Sub-base leveling with skid steer loaders and CR600 receiver
  • Longer range machine control applications
LL500 Laser Package Options Include:
  • LL500 Laser Level Transmitter
  • Case
  • HL700* Laserometer w/Rod Clamp
  • 4D Alkaline Batteries or NIMH Rechargeable Battery
  • No Rod, or GR151 10ths rod, or GR152 Inch Rod
  • No Tripod, or 2161** Tripod
LL500 Laser Package Option Details:
  • Item# LL500: LL500 Laser, HL700 Receiver, 4D Alkaline, Case, No Rod, No Tripod
  • Item# LL500-4: LL500 Laser, HL700 Receiver, NIMH Rechargeable & Charger, No Rod, No Tripod
  • Item# LL500-1: LL500 Laser, HL700 Receiver, 4D Alkaline, Case, GR151 10ths Rod, 2161 Tripod
  • Item# LL500-2: LL500 Laser, HL700 Receiver, 4D Alkaline, Case, GR152 Inch Rod, 2161 Tripod
  • Item# LL500-3: LL500 Laser, HL700 Receiver, 4D Alkaline, Case, GR153 Metric Rod, 2161 Tripod

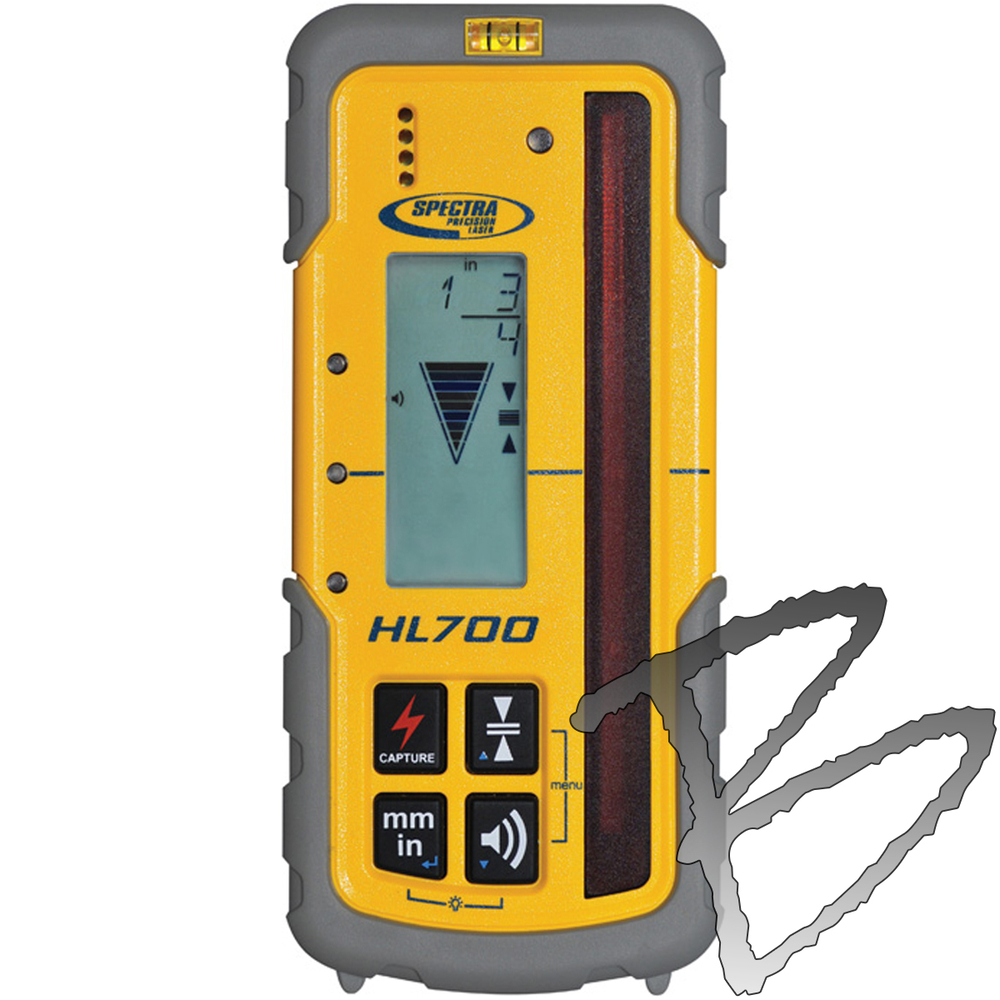

*HL70 Specifications:
  • Digital Readout
  • Six On-Grade Sensitivities
    • Ultra Fine 0.5 mm (1/32 in)
    • Super Fine 1 mm (1/16 in)
    • Fine 2 mm (1/8 in)
    • Medium 5 mm (1/4 in)
    • Coarse 10 mm (1/2 in)
    • Calibration Mode 0.1 mm (1/64 in)
  • Operating Temperature
    • -20°C to 60°C (-4°F to 140°F)
  • Battery Life (AA-2)
    • 60+ hours continuous operation
  • Weight
    • 0.27kg(91/2oz)
  • Reception Height
    • 127mm(5inches)
  • Dust & Waterproof
    • Yes
  • Warranty
    • 3 Years “No Excuses”

LL500 Laser Level Data Sheet LL500 Laser User Guide
Receiver Brochure HL700 User Guide

LL500 Laser Specifications:
  • Self-Leveling Range: ± 11 arc minutes
  • Compensation Type: Wire Hung, Air Damped
  • Accuracy: 1.5 mm at 30 m (1/16 in at 100 ft)
  • Laser Type: 670nm visible, Class 2
  • Battery Life 20°C (68°F): 4 D-Cell Alkaline - 175 hrs, NiMH - 100 hrs
  • Operating Diameter: 500 m (1,600 ft)
  • Operating Temperature: -20°C to 50°C (-4°F to 122°F)
  • Weight: 3.6 kg (8 lbs)
  • Tripod Mount: 5/8 in x 11
  • Warranty: 5 Years
*HL70 Specifications:
  • Digital Readout
  • Six On-Grade Sensitivities
    • Ultra Fine 0.5 mm (1/32 in)
    • Super Fine 1 mm (1/16 in)
    • Fine 2 mm (1/8 in)
    • Medium 5 mm (1/4 in)
    • Coarse 10 mm (1/2 in)
    • Calibration Mode 0.1 mm (1/64 in)
  • Operating Temperature
    • -20°C to 60°C (-4°F to 140°F)
  • Battery Life (AA-2)
    • 60+ hours continuous operation
  • Weight
    • 0.27kg(91/2oz)
  • Reception Height
    • 127mm(5inches)
  • Dust & Waterproof
    • Yes
  • Warranty
    • 3 Years “No Excuses”
