SECO# 2072-Series 303 stainless steel adapters are the perfect link between your GPS antenna and mast for your network antenna solution.

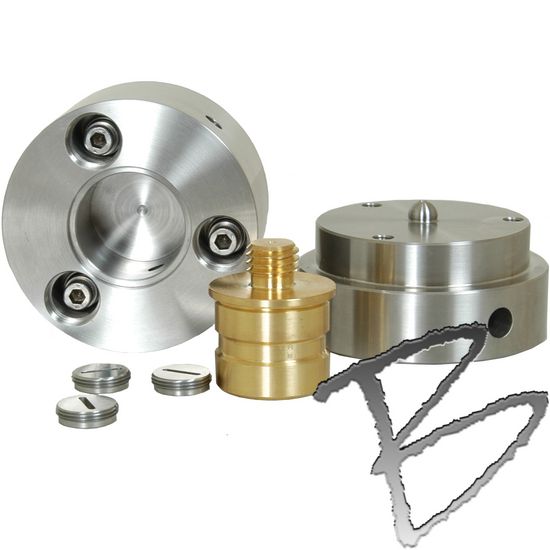

The brass 5/8 x 11 male stud is removable and adjustable in azimuth.
The 5/8 x 11 male stud is held in location by two set screws.
The adapters have 3.20-inch (8.19 cm) diameters and overall heights of 3.036 inches (7.71 cm)
The adapters are leveled by three adjusting screws with a tilt range of +/- 7 degrees.
The height above the pivot point to the stud shoulder is 1.37 inches (3.50 cm).
The height below the brass 5/8 x 11 stud to the shoulder is 0.463 inches (1.18 cm).
The axis height is engraved on the outside of the monument.
The #2072-Series' female base is threaded to match the male pipe used. (1.5", 2", 3" MPT, or 5/8 x 11 thread)
MPT = Male Pipe Thread
TPI - Threads Per Inch
Option Details:

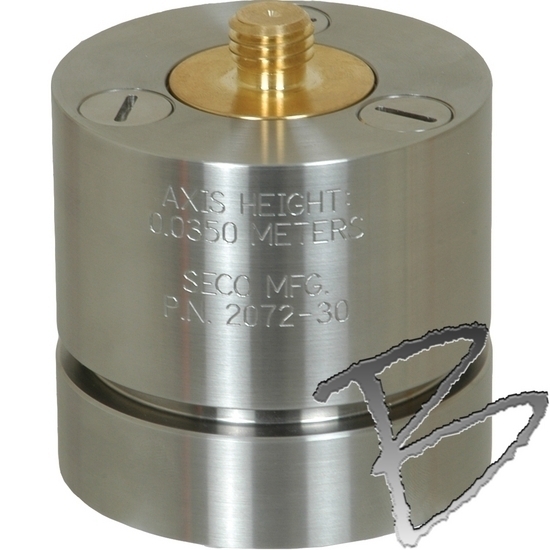

2072-30: For 1.5-inch Pipe, Weighs 5.5lb (2.5kg)

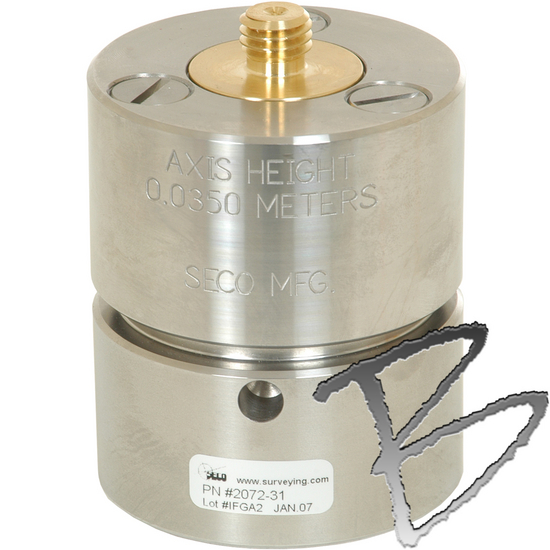

2072-31: For 2-inch Pipe, Weighs 6.6lb (3kg)

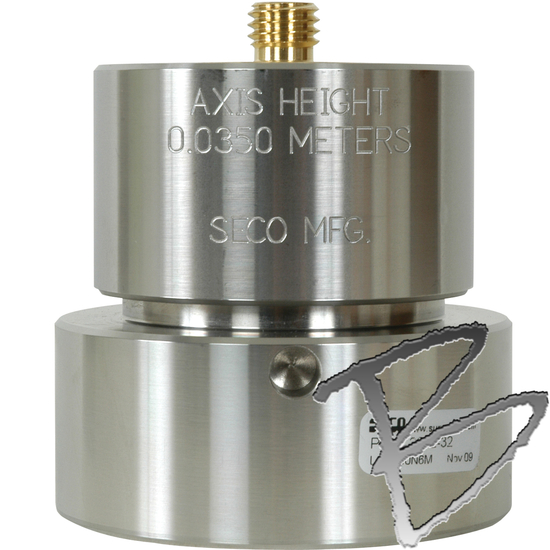

2072-32: For 3-inch Pipe, Weighs 6.9lb (3.1kg)

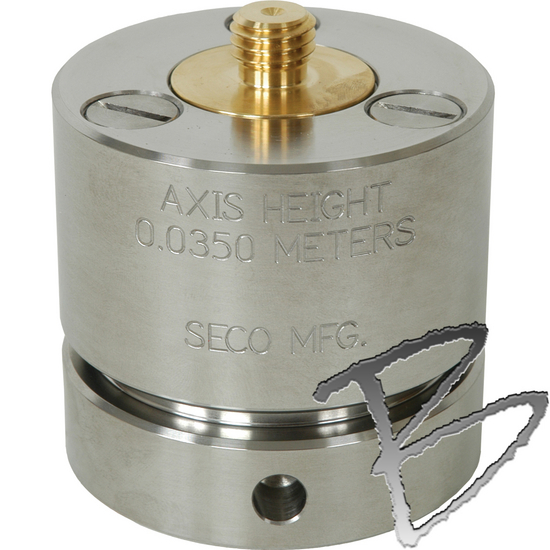

2072-33: For 5/8 x 11 Male Threads, Weighs 6.2lb (2.8kg)
2072-001: Topcon GR3-1A Extension, Adds 1-inch (2.54cm) to the height- Discontinued
Item Number:
For Use With:
2072-30
1.5-inch Pipe with MPT 1.5 x 11.5-inch TPI
2072-31
2-inch Pipe with MPT 2 x 11.5-inch TPI
2072-32
3-inch Pipe with MPT 3.5 x 8-inch TPI
2072-33
5/8 x 11 Male threads
2072-001
Topcon GR3-1A Antenna, Extension
