Husky Portable Containment Self Supporting Tanks, High Side Wall

Husky Portable Containment Self Supporting Tanks, High Side Wall

$644.50
Price: From $644.50 to $6547.00

Brand: Husky Portable Containment

SKU: HS

Qty:


Authorized Dealer

Made in America

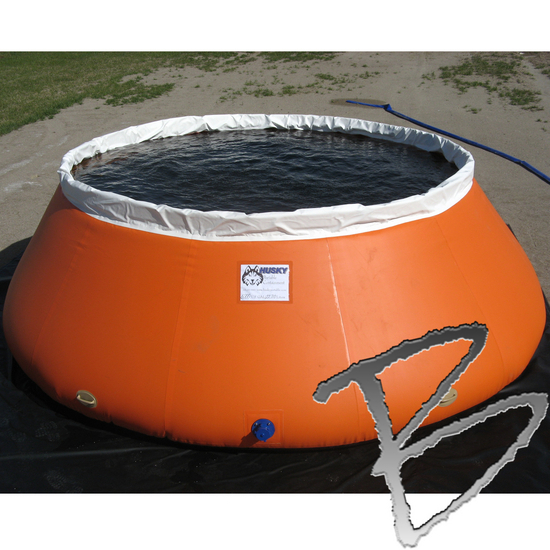

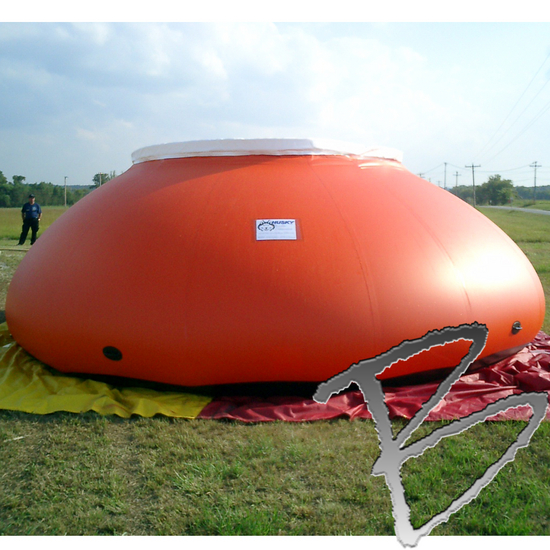

Husky Portable Containment Self Supporting Tanks, High Side Wall
  • Husky self supporting tanks are the perfect solution when storage and manpower are a concern.
  • One man set-up frees up personnel and because these tanks are frameless, there is no assembly required and they are easy to transport and store.
  • Husky's self-supporting tanks are also ideal for use in forest fire operations.
  • The high side models are used for bucket dipping and snorkeling operations.
  • The US Forest Service has trusted Husky Portable Containment water tanks for over ten years.
  • The heavy-duty foam collar is standard and will rise as the water level increases.
  • 250-50,000 Gallons Available. (Not all sizes are available online)
  • High side models range from 40" to 96" when filled.
  • Self Supporting water tanks come standard with 22oz PVC sidewalls and a durable 28oz. floor.
  • (Self Supporting Tanks over 6000 gallons are made with 40oz. PVC sidewalls and 40oz PVC flooring.)
  • Heavy-duty, self-rising foam collar is standard.
  • 2-1/2" NST female flange is standard, made from 6061 billet Aluminum.
  • Storage bag is included.
Options:
  • 1-1/2" - 6" male or female flanges available.
  • Camlock and Storz adapters available (2-1/2" - 6".)
  • The reflective edge Liner - is an innovative optional addition to your tank that dramatically improves it’s nighttime visibility. Adding this option increases safety and longevity of your Self Supporting Tank.
  • Ground and top covers are available.
  • Durable EXLON™ material is available.
  • Available in Vinyl, NSF-61 (potable water), Chemical & Fuel Resistant and Urethanes.
  • HUSKY® offers a full line of accessories including strainers, top and ground covers, supply line brackets, tank racks and drain tube clamps.

  • Use the Contact Us page or Call 877-844-3101 for ordering available options, accessories & customizations.

Standard Dimensions (High-Side Tanks)

Capacity
Gal. (Liters) 		Base Diameter
Std./Meters 		Top Diameter
Std./Meters 		Height (Filled)
Std./Meters 		Weight
lbs./kg 		Folded Dimensions (Approx.)
Std./Meters
500 (1893) 6'9" / 2.1 4'0" / 1.2 40" / 1.0 39 / 17.7 25" x 25" x 18" / .6 x .6 x .4
1000 (3785) 8'6" / 2.6 5'6" / 1.7 44" / 1.1 54 / 24.5 25" x 25" x 22" / .7 x .7 x .5
1200 (4542) 9'8" / 3.0 5'10" / 1.8 44" / 1.1 59 / 26.8 26" x 26" x 22" / .7 x .7 x .6
1600 (6056) 10'8" / 3.3 6'10" / 2.1 44" / 1.1 67 / 30.4 28" x 28" x 22" / .8 x .8 x .6
1800 (6313) 11'0" / 3.4 7'3" / 2.2 46" / 1.2 72 / 32.7 30" x 30" x 22" / .8 x .8 x .6
2000 (7570) 11'9" / 3.6 7'9" / 2.4 48" / 1.2 75 / 34 30" x 30" x 22" / .8 x .8 x .6
2500 (9463) 12'8" / 3.9 8'6" / 2.6 48" / 1.2 84 / 38 34" x 34" x 22" / .9 x .9 x .6
3000 (11355) 14'2" / 4.3 9'2" / 2.8 48" / 1.2 99 / 45 34" x 34" x 24" / .9 x .9 x .7
4000 (15140) 16'2" / 4.9 11'0" / 3.4 48" / 1.2 114 / 51.7 38" x 38" x 24" / 1 x 1 x .7
5000 (18925) 16'2" / 4.9 10'6" / 3.2 60" / 1.5 125 / 56.7 38" x 38" x 28" / 1 x 1 x .7
6000 (22710) 17'4" / 5.3 11'8" / 3.6 60" / 1.5 143 / 64.9 38" x 38" x 32" / 1 x 1 x .8
8000 (30280) 18'0" / 5.5 12'0" / 3.7 70" / 1.8 169 / 77 40" x 40" x 34" / 1 x 1 x .9
10000 (37850) 19'4" / 5.9 12'0" / 3.7 80" / 20 200 / 90.1 42" x 42" x 36" / 1.1 x 1.1 x .9
14000 (52990) 21'9" / 6.6 13'9" / 4.2 90" / 23 249 / 113 44" x 44" x 40" / 1.1 x 1.1 x 1
20000 (75700) 26'0" / 7.9 16'0" / 4.8 96" / 24 499 / 226 48" x 48" x 48" / 1.2 x 1.2 x 1.2



*Please note: Video shows Low Side Wall Self Supporting Tank
