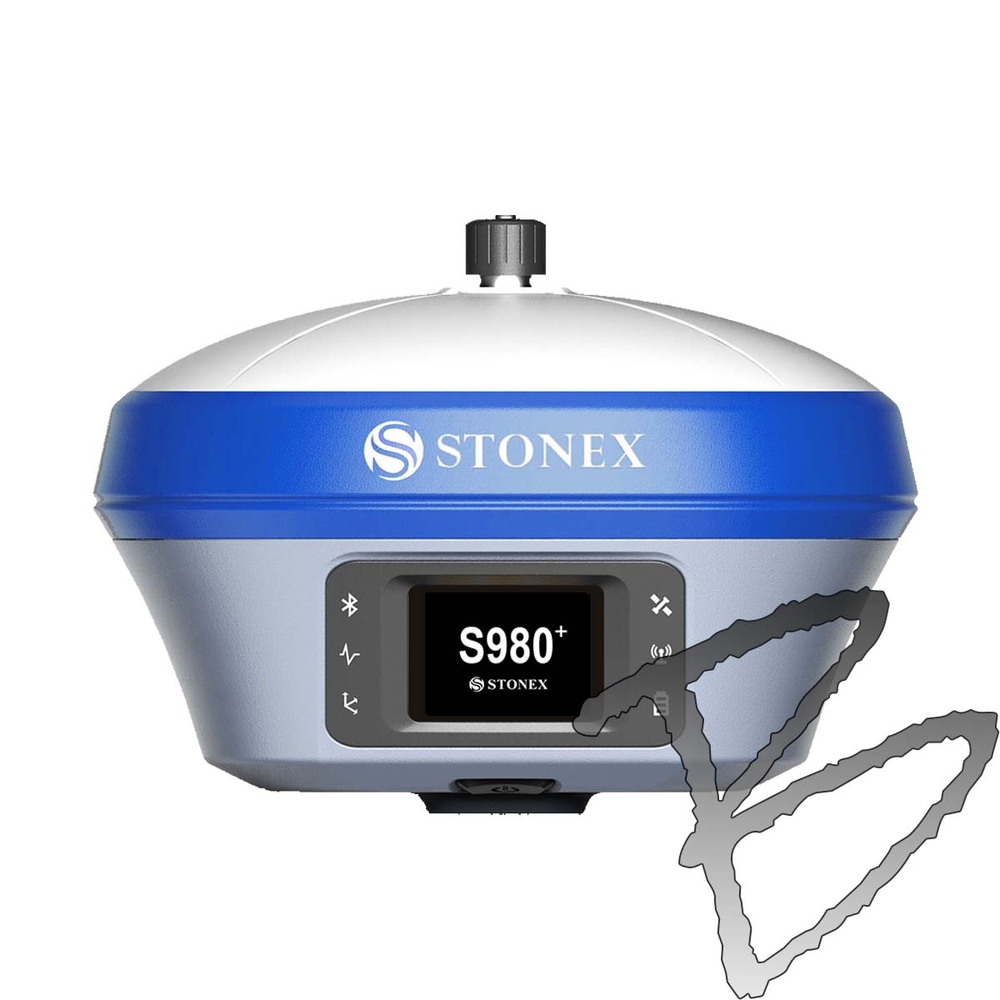

The color touch display and the ability to connect an external antenna make the S980+ an extremely effective receiver, capable of detecting GPS, GLONASS, BEIDOU, GALILEO, and QZSS constellations, making it suitable for any job.
A 4G GSM modem guarantees a fast Internet connection, while Bluetooth and Wi-Fi modules always enable reliable data flow to the controller.
Combined with the built-in 2-5W radio, these features make the S980+ the perfect receiver as a base station.
The S980+ also features optional IMU technology with quick initialization and tilt up to 60°.
The S980+ has a 1PPS port that can be used in applications requiring precise timing to ensure joint operation of multiple instruments or using the same parameters to integrate systems based on precise timing.
What are the performances of the S980+ with IMU?
Fast initialization
Up to 60° inclination
2 cm accuracy 30°
5 cm accuracy 60°
Fast and precise survey
There is no problem with electromagnetic disturbances.
Stonex S980+ with IMU system makes every measurement reliable, both survey and the stake out jobs, and makes the acquisition of points extremely faster: up to 40% of the fieldwork time can be saved!
MULTI CONSTELLATION
Stonex S980+, with its 1408 channels, provides an excellent on-board real-time navigation solution with high accuracy.
All GNSS signals (GPS, GLONASS, BEIDOU, GALILEO, and QZSS) are included at no additional cost.
2-5W RADIO
S980+ has an integrated 2-5W UHF radio with 410-470MHz frequency.
The receiver is equipped with an external radio antenna to extend range.
IMU Technology
The S980+ is equipped with IMU Technology that allows measurements with a tilted pole. This brings the following advantages:
Fast and precise survey. It’s possible to survey and store points with just one measure with a slant up to 60° (maximum 2cm error with a slant up to 30°, maximum 5cm error with a slant up to 60°).
Simple and quick initialization process. After the first calibration, once a FIXED solution is obtained, is a matter of seconds to initialize the sensor and start to work.
Guided calibration with Stonex Cube-a You can use Stonex Cube-a field software to calibrate the sensor; Stonex Cube-a provides all the instructions to initialize and calibrate the IMU sensor.
Integrated inertial navigation module ensures real-time interference-free tilt compensation. It’s not affected by any geomagnetic and external metal structures or other environmental influences. It adopts "satellite and inertial navigation" dual inspection.
COLOR TOUCH DISPLAY
The S980+ has a convenient color touch display to manage the most important functions easily.
EXTERNAL GNSS ANTENNA
The S980+, through the appropriate connector, can be connected to an external GNSS antenna and is transformed from an RTK receiver to a CORS.
